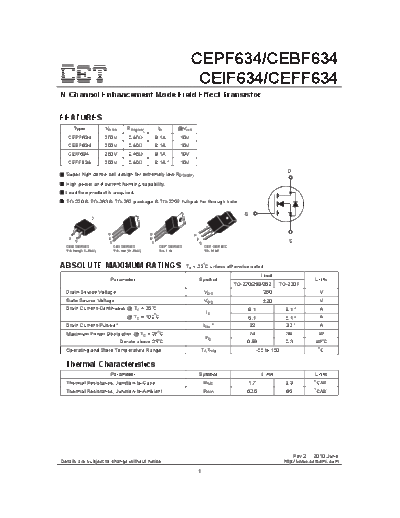

Image preview - the first page of the document
>> Download cepf634_cebf634_ceif634_ceff634 documenatation <<
Text preview - extract from the document
CEPF634/CEBF634
CEIF634/CEFF634
N-Channel Enhancement Mode Field Effect Transistor
FEATURES
Type VDSS RDS(ON) ID @VGS
CEPF634 250V 0.45 8.1A 10V
CEBF634 250V 0.45 8.1A 10V
CEIF634 250V 0.45 8.1A 10V
CEFF634 250V 0.45 8.1A d
10V
D
Super high dense cell design for extremely low RDS(ON).
High power and current handing capability.
Lead free product is acquired.
TO-220 & TO-263 & TO-262 package & TO-220F full-pak for through hole.
G
D
G G G
G D D D
S S S S
S
CEB SERIES CEI SERIES CEP SERIES CEF SERIES
TO-263(DD-PAK) TO-262(I2-PAK) TO-220 TO-220F
ABSOLUTE MAXIMUM RATINGS Tc = 25 C unless otherwise noted
Limit
Parameter Symbol Units
TO-220/263/262 TO-220F
Drain-Source Voltage VDS 250 V
Gate-Source Voltage VGS ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
