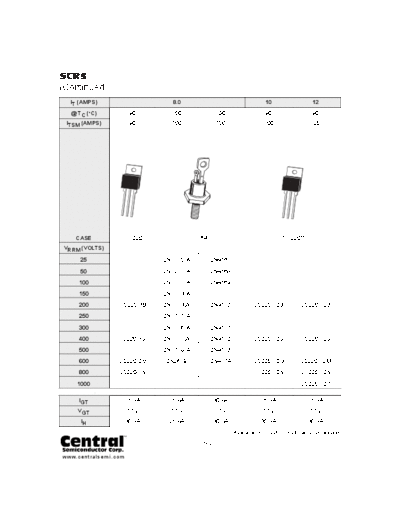

Text preview - extract from the document

SCRs
(Continued)
    IT (AMPS)                                   8.0                                    10                  12

    @ TC (oC)                           90      100               100                  90                  90
  ITSM (AMPS)                           90      100               100                  100                120




       CASE                        TO-220                TO-64                                TO-220**
 VRRM (VOLTS)

          25                                  2N1770,A           2N4167
          50                                  2N1771,A           2N4168
         100                                  2N1772,A           2N4169
         150                                  2N1773,A
         200                     CS220-8B     2N1774,A           2N4170           CS220-10B           CS220-12B
         250                                  2N1775,A
         300                                  2N1776,A           2N4171
         400                     CS220-8D     2N1777,A           2N4172           CS220-10D           CS220-12D
         500                                  2N1778,A           2N4173
         600                    CS220-8M      2N2619             2N4174           CS220-10M           CS220-12M
         800                     CS220-8N                                         CS220-10N           CS220-12N
        1000                                                                                          CS220-12P

         IGT                           15mA    15mA               30mA                15mA               15mA
        VGT                            1.5V     1.5V              1.5V                1.5V                1.5V
          IH                           30mA    25mA               30mA                30mA               30mA
                                                                         **Available in TO-220FP Full Pak upon request.
