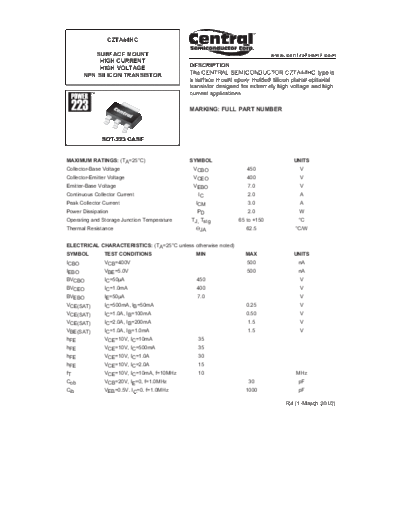

Image preview - the first page of the document



>> Download czta44hc documenatation <<

Text preview - extract from the document

                 CZTA44HC

          SURFACE MOUNT                                                       w w w. c e n t r a l s e m i . c o m
            HIGH CURRENT
            HIGH VOLTAGE                       DESCRIPTION:
       NPN SILICON TRANSISTOR                  The CENTRAL SEMICONDUCTOR CZTA44HC type is
                                               a surface mount epoxy molded silicon planar epitaxial
                                               transistor designed for extremely high voltage and high
                                               current applications.

                                               MARKING: FULL PART NUMBER




               SOT-223 CASE


MAXIMUM RATINGS: (TA=25
