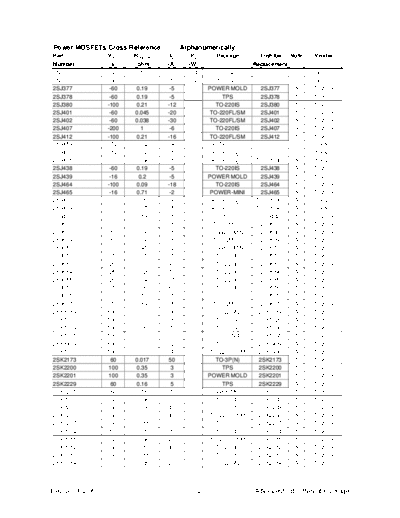

Image preview - the first page of the document
>> Download 1cross_power_mosfet_189 documenatation <<
Text preview - extract from the document
Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2N7000 60 5 0.2 0.4 TO-92 Fairchild 2N7002 60 7.5 0.115 0.2 SOT-23 Fairchild 2SJ377 -60 0.19 -5 POWER MOLD 2SJ377 A Toshiba 2SJ378 -60 0.19 -5 TPS 2SJ378 A Toshiba 2SJ380 -100 0.21 -12 TO-220IS 2SJ380 A Toshiba 2SJ401 -60 0.045 -20 TO-220FL/SM 2SJ401 A Toshiba 2SJ402 -60 0.038 -30 TO-220FL/SM 2SJ402 A Toshiba 2SJ407 -200 1 -6 TO-220IS 2SJ407 A Toshiba 2SJ412 -100 0.21 -16 TO-220FL/SM 2SJ412 A Toshiba 2SJ419 -12 0.082 -4 SOP-8(Single) Sanyo 2SJ420 -12 0.063 -5 SOP-8(Single) Sanyo 2SJ421 -30 0.058 -5 SOP-8(Single) TPC8104-H A Sanyo 2SJ438 -60 0.19 -5 TO-220IS 2SJ438 A Toshiba 2SJ439 -16 0.2 -5 POWER MOLD 2SJ439 A Toshiba 2SJ464 -100 0.09 -18 TO-220IS 2SJ464 A Toshiba 2SJ465 -16 0.71 -2 POWER-MINI 2SJ465 A Toshiba 2SJ468 -30 0.1 -4 SOP-8(Single) TPC8104-H A Sanyo 2SJ469 -30 0.075 -5 SOP-8(Single) TPC8104-H A Sanyo 2SJ482 -60 0.19 -5 SP 2SJ482 A Toshiba 2SJ507 -60 0.7 -1 TO-92MOD 2SJ507 A Toshiba 2SJ508 -100 1.9 -1 POWER-MINI 2SJ508 A Toshiba 2SJ509 -100 1.9 -1 TO-92MOD 2SJ509 A Toshiba 2SJ511 -30 0.45 -2 POWER-MINI 2SJ511 A Toshiba 2SJ512 -250 1.25 -5 TO-220IS 2SJ512 A Toshiba 2SJ513 -200 0.5 -9.5 TO-220IS 2SJ513 A Toshiba 2SJ514 -250 0.625 -7.5 TO-220IS 2SJ514 A Toshiba 2SJ515 -200 0.64 -7 TO-220IS 2SJ515 A Toshiba 2SJ516 -250 0.8 -6.5 TO-220IS 2SJ516 A Toshiba 2SJ525 -30 0.12 -5 TPS 2SJ525 A Toshiba 2SJ537 -50 0.19 -5 TO-92MOD 2SJ537 A Toshiba 2SK1119 1000 3.8 4 TO-220AB 2SK1119 A Toshiba 2SK1120 1000 1.8 8 TO-3P(N) 2SK1120 A Toshiba 2SK1359 1000 3.8 5 TO-3P(N) 2SK1359 A Toshiba 2SK1365 1000 1.8 7 TO-3P(N)IS 2SK1365 A Toshiba 2SK1489 1000 1 12 TO-3P(L) 2SK1489 A Toshiba 2SK1930 1000 3.8 4 TO-220FL/SM 2SK1930 A Toshiba 2SK2173 60 0.017 50 TO-3P(N) 2SK2173 A Toshiba 2SK2200 100 0.35 3 TPS 2SK2200 A Toshiba 2SK2201 100 0.35 3 POWER MOLD 2SK2201 A Toshiba 2SK2229 60 0.16 5 TPS 2SK2229 A Toshiba 2SK2231 60 0.16 5 POWER MOLD 2SK2231 A Toshiba 2SK2232 60 0.046 25 TO-220IS 2SK2232 A Toshiba 2SK2233 60 0.03 45 TO-3P(N) 2SK2233 A Toshiba 2SK2266 60 0.03 45 TO-220FL/SM 2SK2266 A Toshiba 2SK2267 60 0.011 60 TO-3P(L) 2SK2267 A Toshiba 2SK2274 700 1.7 5 TO-220IS 2SK2274 A Toshiba 2SK2311 60 0.046 25 TO-220FL/SM 2SK2311 A Toshiba 2SK2312 60 0.017 45 TO-220IS 2SK2312 A Toshiba 2SK2313 60 0.011 60 TO-3P(N) 2SK2313 A Toshiba 2SK2314 100 0.085 27 TO-220AB 2SK2314 A Toshiba Revised 1Q '99 -2- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2350 200 0.4 8.5 TO-220IS 2SK2350 A Toshiba 2SK2376 60 0.017 45 TO-220FL/SM 2SK2376 A Toshiba 2SK2381 200 0.8 5 TO-220IS 2SK2381 A Toshiba 2SK2382 200 0.18 15 TO-220IS 2SK2382 A Toshiba 2SK2385 60 0.03 36 TO-220IS 2SK2385 A Toshiba 2SK2389 700 1.7 5 TO-220AB 2SK2389 A Toshiba 2SK2391 100 0.085 20 TO-220IS 2SK2391 A Toshiba 2SK2398 60 0.03 45 TO-3P(N) 2SK2233 A Toshiba 2SK2399 100 0.23 5 POWER MOLD 2SK2399 A Toshiba 2SK2400 100 0.23 5 TPS 2SK2400 A Toshiba 2SK2401 200 0.18 15 TO-220FL/SM 2SK2401 A Toshiba 2SK2417 250 0.5 7.5 TO-220IS 2SK2417 A Toshiba 2SK2440 20 0.038 6 SOP-8(Single) TPC8008 A Sanyo 2SK2441 20 0.032 7 SOP-8(Single) TPC8008 A Sanyo 2SK2442 30 0.029 7 SOP-8(Single) TPC8006-H A Sanyo 2SK2445 60 0.018 50 TO-3P(N) 2SK2445 A Toshiba 2SK2466 100 0.046 30 TO-220IS 2SK2466 A Toshiba 2SK2493 16 0.1 5 POWER MOLD 2SK2493 A Toshiba 2SK2507 50 0.046 25 TO-220IS 2SK2507 A Toshiba 2SK2508 250 0.25 13 TO-220IS 2SK2508 A Toshiba 2SK2542 500 0.85 8 TO-220AB 2SK2542 A Toshiba 2SK2543 500 0.85 8 TO-220IS 2SK2543 A Toshiba 2SK2544 600 1.25 6 TO-220AB 2SK2544 A Toshiba 2SK2545 600 1.25 6 TO-220IS 2SK2545 A Toshiba 2SK2549 16 0.29 2 POWER-MINI 2SK2549 A Toshiba 2SK2550 50 0.03 45 TO-3P(N) 2SK2550 A Toshiba 2SK2551 50 0.011 50 TO-3P(N) 2SK2551 A Toshiba 2SK2556 30 0.04 6 SOP-8(Single) TPC8006-H A Sanyo 2SK2557 30 0.037 7 SOP-8(Single) TPC8006-H A Sanyo 2SK2598 250 0.25 13 TO-220FL/SM 2SK2598 A Toshiba 2SK2599 500 3 2 TPS 2SK2599 A Toshiba 2SK2600 500 0.85 8 TO-3P(N)IS 2SK2600 A Toshiba 2SK2601 500 1 10 TO-3P(N) 2SK2601 A Toshiba 2SK2602 600 1.25 6 TO-3P(N) 2SK2602 A Toshiba 2SK2603 800 3.6 3 TO-220AB 2SK2603 A Toshiba 2SK2604 800 2.2 5 TO-3P(N) 2SK2604 A Toshiba 2SK2605 800 2.2 5 TO-220IS 2SK2605 A Toshiba 2SK2606 800 1.2 8.5 TO-3P(N)IS 2SK2606 A Toshiba 2SK2607 800 1.2 9 TO-3P(N) 2SK2607 A Toshiba 2SK2608 900 4.3 3 TO-220AB 2SK2608 A Toshiba 2SK2610 900 2.5 5 TO-3P(N) 2SK2610 A Toshiba 2SK2611 900 1.4 9 TO-3P(N) 2SK2611 A Toshiba 2SK2613 1000 1.7 8 TO-3P(N) 2SK2613 A Toshiba 2SK2614 50 0.046 20 DP 2SK2614 A Toshiba 2SK2615 60 0.37 2 POWER-MINI 2SK2615 A Toshiba 2SK2637 20 0.025 8 SOP-8(Single) TPC8008 A Sanyo 2SK2661 500 1.5 5 TO-220AB 2SK2661 A Toshiba 2SK2662 500 1.5 5 TO-220IS 2SK2662 A Toshiba 2SK2679 400 1.2 5.5 TO-220IS 2SK2679 A Toshiba 2SK2698 500 0.4 15 TO-3P(N) 2SK2698 A Toshiba Revised 1Q '99 -3- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2699 600 0.65 12 TO-3P(N) 2SK2699 A Toshiba 2SK2700 900 4.3 3 TO-220IS 2SK2700 A Toshiba 2SK2717 900 2.5 5 TO-220IS 2SK2717 A Toshiba 2SK2718 900 6.4 2.5 TO-220IS 2SK2718 A Toshiba 2SK2719 900 4.3 3 TO-3P(N) 2SK2719 A Toshiba 2SK2733 900 9 1 TO-220AB 2SK2733 A Toshiba 2SK2741 60 0.16 5 SP 2SK2741 A Toshiba 2SK2742 100 0.35 3 SP 2SK2742 A Toshiba 2SK2744 50 0.02 45 TO-3P(N) 2SK2744 A Toshiba 2SK2745 50 0.0095 50 TO-3P(N) 2SK2745 A Toshiba 2SK2746 800 1.7 7 TO-3P(N) 2SK2746 A Toshiba 2SK2749 900 2 7 TO-3P(N) 2SK2749 A Toshiba 2SK2750 600 2.2 3.5 TO-220IS 2SK2750 A Toshiba 2SK2776 500 0.85 8 TO-220FL/SM 2SK2776 A Toshiba 2SK2777 600 1.25 6 TO-220FL/SM 2SK2777 A Toshiba 2SK2782 60 0.055 20 DP 2SK2782 A Toshiba 2SK2789 100 0.085 27 TO-220FL/SM 2SK2789 A Toshiba 2SK2835 200 0.8 5 TPS 2SK2835 A Toshiba 2SK2836 600 9 1 SP 2SK2836 A Toshiba 2SK2837 500 0.27 20 TO-3P(N) 2SK2837 A Toshiba 2SK2838 400 1.2 5.5 TO-220FL/SM 2SK2838 A Toshiba 2SK2839 30 0.04 10 SP 2SK2839 A Toshiba 2SK2840 250 1 4.5 TO-220IS 2SK2840 A Toshiba 2SK2841 400 0.55 10 TO-220AB 2SK2841 A Toshiba 2SK2842 500 0.52 12 TO-220IS 2SK2842 A Toshiba 2SK2843 600 0.75 10 TO-220IS 2SK2843 A Toshiba 2SK2844 30 0.02 35 TO-220AB 2SK2844 A Toshiba 2SK2845 900 9 1 DP 2SK2845 A Toshiba 2SK2846 600 5 2 TPS 2SK2846 A Toshiba 2SK2847 900 1.4 8 TO-3P(N)IS 2SK2847 A Toshiba 2SK2859 100 0.4 2 SOP-8(Single) Sanyo 2SK2862 500 3 2 TO-220IS 2SK2862 A Toshiba 2SK2865 600 5 2 POWER MOLD 2SK2865 A Toshiba 2SK2866 600 0.75 10 TO-220AB 2SK2866 A Toshiba 2SK2882 150 0.12 18 TO-220IS 2SK2882 A Toshiba 2SK2883 800 3.6 3 TO-220FL/SM 2SK2883 A Toshiba 2SK2884 800 2.2 5 TO-220FL/SM 2SK2884 A Toshiba 2SK2886 50 0.02 45 TO-220IS 2SK2886 A Toshiba 2SK2889 600 0.75 10 TO-220FL/SM 2SK2889 A Toshiba 2SK2914 250 0.5 8.5 TO-220AB 2SK2914 A Toshiba 2SK2915 600 0.4 16 TO-3P(N) 2SK2915 A Toshiba 2SK2916 500 0.4 14 TO-3P(N)IS 2SK2916 A Toshiba 2SK2917 500 0.27 18 TO-3P(N)IS 2SK2917 A Toshiba 2SK2920 200 0.8 5 POWER MOLD 2SK2920 A Toshiba 2SK2949 400 0.55 10 TO-220FL/SM 2SK2949 A Toshiba 2SK2952 400 0.55 8.5 TO-220IS 2SK2952 A Toshiba 2SK2953 600 0.4 15 TO-3P(N)IS 2SK2953 A Toshiba 2SK2961 60 0.27 2 TO-92MOD 2SK2961 A Toshiba 2SK2962 100 0.7 1 TO-92MOD 2SK2962 A Toshiba 2SK2963 100 0.7 1 POWER-MINI 2SK2963 A Toshiba Revised 1Q '99 -4- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement 2SK2964 30 0.17 2 POWER-MINI 2SK2964 A Toshiba 2SK2965 200 0.26 11 TO-220IS 2SK2965 A Toshiba 2SK2966 250 0.32 10 TO-220IS 2SK2966 A Toshiba 2SK2967 250 0.07 30 TO-3P(N) 2SK2967 A Toshiba 2SK2968 900 1.25 10 TO-3P(N) 2SK2968 A Toshiba 2SK2985 60 0.0058 45 TO-220IS 2SK2985 A Toshiba 2SK2986 60 0.0058 45 TO-220FL/SM 2SK2986 A Toshiba 2SK2987 60 0.0058 70 TO-3P(N) 2SK2987 A Toshiba 2SK2989 50 0.15 5 TO-92MOD 2SK2989 A Toshiba 2SK2991 500 1.5 5 TO-220FL/SM 2SK2991 A Toshiba 2SK2992 200 3.5 1 POWER-MINI 2SK2992 A Toshiba 2SK2993 250 0.11 20 TO-220FL/SM 2SK2993 A Toshiba 2SK2995 250 0.07 30 TO-3P(N)IS 2SK2995 A Toshiba 2SK2996 600 1 10 TO-220IS 2SK2996 A Toshiba 2SK2997 800 8 1.5 DP 2SK2997 A Toshiba 2SK2998 500 18 0.5 TO-92MOD 2SK2998 A Toshiba 2SK3017 900 1.25 8 TO-3P(N)IS 2SK3017 A Toshiba 2SK3051 60 0.03 45 TO-220FL/SM 2SK2266 A Toshiba 2SK3067 600 5 2 TO-220IS 2SK3067 A Toshiba 2SK3068 500 0.52 12 TO-220FL/SM 2SK3068 A Toshiba 2SK3085 600 2.2 3.5 TO-220AB 2SK3085 A Toshiba 2SK3088 900 4.3 3 TO-220FL/SM 2SK3088 A Toshiba 2SK3089 30 0.03 40 TO-220FL/SM 2SK3089 A Toshiba 2SK3090 30 0.02 45 TO-220FL/SM 2SK3090 A Toshiba 2SK3117 500 0.27 20 TO-3P(SM) 2SK3117 A Toshiba 2SK3125 30 0.007 60 TO-3P(SM) 2SK3125 A Toshiba 2SK3126 450 0.65 10 TO-220IS 2SK3126 A Toshiba 2SK3127 30 0.011 45 TO-220FL/SM 2SK3127 A Toshiba 2SK3128 30 0.011 60 TO-3P(N) 2SK3128 A Toshiba 2SK3176 200 0.052 30 TO-3P(N) 2SK3176 A Toshiba BS107 200 26 0.13 TO-92 Siemens BS170 60 5 0.5 0.83 TO-92 Fairchild BS170 60 5 0.3 TO-92 Siemens BS270 60 2 0.4 0.625 TO-92 Fairchild BSO307N 30 0.075 4.2 SOP-8(Single) TPC8004 A Siemens BSO615N 60 0.15 2.6 SOP-8(Single) Siemens BSO615NV 60 0.12 3.1 SOP-8(Single) Siemens BSP123 100 6.00 0.38 1.7 SOT223 Siemens BSP125 600 45.00 0.11 1.5 SOT223 2SK2836 A Siemens BSP129 240 20.00 0.19 1.5 SOT223 2SK2836 A Siemens BSP135 600 60.00 0.1 1.5 SOT223 2SK2836 A Siemens BSP149 200 3.50 0.44 1.5 SOT223 Siemens BSP17 50 0.10 2.9 1.5 SOT223 2SK2741 A Siemens BSP170 -60 0.35 1.7 SOT-223 2SJ482 A Siemens BSP171 -60 0.35 1.7 1.5 SOT223 2SJ482 A Siemens BSP295 50 0.30 1.7 1.5 SOT223 2SK2741 A Siemens BSP296 100 0.80 1 1.5 SOT223 2SK2742 A Siemens BSP297 200 2.00 0.6 1.5 SOT223 Siemens BSP298 400 3.00 0.45 1.5 SOT223 Siemens BSP299 500 4.00 0.4 1.5 SOT223 Siemens Revised 1Q '99 -5- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BSP300 800 20 0.19 SOT-223 Siemens BSP315 -50 0.80 1 1.5 SOT223 Siemens BSP316 -100 2.20 0.6 1.5 SOT223 2SJ508 B Siemens BSP317 -200 6.00 0.34 1.5 SOT223 Siemens BSP318 60 0.15 2.4 1.5 SOT223 2SK2741 A Siemens BSP318S 60 0.15 2.6 SOT-223 2SK2741 A Siemens BSP319 50 0.07 3.8 1.5 SOT223 2SK2741 A Siemens BSP320S 60 0.12 2.9 SOT-223 2SK2741 A Siemens BSP324 400 25.00 0.16 1.5 SOT223 2SK2836 A Siemens BSP372 100 0.30 1.7 1.8 SOT223 2SK2742 A Siemens BSP373 100 0.30 1.7 1.8 SOT223 2SK2742 A Siemens BSP88 240 8 0.32 SOT-223 2SK2836 A Siemens BSP89 240 6 0.36 SOT-223 2SK2836 A Siemens BSP92 -240 20 0.2 SOT-223 Siemens BSS100 100 6 0.22 0.63 TO-92 Fairchild BSS100 100 6 0.22 TO-92 Siemens BSS101 240 16 0.13 TO-92 Siemens BSS110 -50 10 -0.17 0.63 TO-92 Fairchild BSS110 -50 10 0.1 TO-92 Siemens BSS119 100 6 0.17 SOT-23 Siemens BSS123 100 6 0.17 0.36 SOT-23 Fairchild BSS123 100 6 0.17 SOT-23 Siemens BSS124 400 28 0.12 TO-92 Siemens BSS125 600 45 0.1 TO-92 Siemens BSS129 240 20 0.15 TO-92 Siemens BSS131 240 16 0.1 SOT-23 Siemens BSS135 600 60 0.08 TO-92 Siemens BSS138 50 3.5 0.22 0.36 SOT-23 Fairchild BSS138 50 3.5 0.22 SOT-23 Siemens BSS139 250 100 0.04 SOT-23 Siemens BSS145 65 3.5 0.22 SOT-23 Siemens BSS149 200 3.5 0.35 TO-92 Siemens BSS159 50 8 0.16 SOT-23 Siemens BSS169 100 12 0.12 SOT-23 Siemens BSS192 -240 20.00 0.15 1 SOT89 Siemens BSS229 250 100 0.07 TO-92 Siemens BSS284 -50 10 0.13 SOT-23 Siemens BSS295 50 0.3 1.4 TO-92 Siemens BSS296 100 0.8 0.8 TO-92 Siemens BSS297 200 2 0.48 TO-92 Siemens BSS7728 60 7.5 0.15 SOT-23 Siemens BSS84 -50 10 -0.13 0.36 SOT-23 Fairchild BSS84 -50 10 0.13 SOT-23 Siemens BSS87 240 6.00 0.29 1 SOT89 Siemens BSS92 -240 20 0.1 TO-92 Siemens BSS98 50 3.5 0.3 TO-92 Siemens BUK444-200A 200 0.4 5.3 25 TO-220IS 2SK2350 A Philips BUK444-200B 200 0.5 4.7 25 TO-220IS 2SK2350 A Philips BUK444-800A 800 6 1.4 30 TO-220IS 2SK2603 B Philips BUK444-800B 800 8 1.2 30 TO-220IS 2SK2997 B Philips Revised 1Q '99 -6- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK445-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK445-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK446-1000B 1000 5 1.5 30 TO-220IS 2SK1119 B Philips BUK446-800A 800 3 2 30 TO-220IS 2SK2603 B Philips BUK446-800B 800 4 1.7 30 TO-220IS 2SK2603 B Philips BUK452-100A 100 0.25 11 60 TO220AB 2SK2399 B Philips BUK452-100B 100 0.3 10 60 TO220AB Philips BUK452-60A 60 0.13 15 60 TO220AB 2SK2231 B Philips BUK452-60B 60 0.15 14 60 TO220AB 2SK2231 B Philips BUK453-100A 100 0.16 14 75 TO220AB 2SK2314 A Philips BUK453-100B 100 0.2 13 75 TO220AB 2SK2399 B Philips BUK453-60A 60 0.08 22 75 TO220AB 2SK2232 B Philips BUK453-60B 60 0.1 20 75 TO220AB 2SK2232 B Philips BUK454-200A 200 0.4 9.2 90 TO220AB YTA630 A Philips BUK454-200B 200 0.5 8.2 90 TO220AB YTA630 A Philips BUK454-60H 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK454-800A 800 6 2.4 100 TO220AB 2SK2603 A Philips BUK454-800B 800 8 2 100 TO220AB 2SK2997 B Philips BUK455-100A 100 0.08 26 125 TO220AB 2SK2314 A Philips BUK455-100B 100 0.1 23 125 TO220AB 2SK2314 A Philips BUK455-200A 200 0.23 14 125 TO220AB YTA640 A Philips BUK455-200B 200 0.28 13 125 TO220AB 2SK2965 B Philips BUK455-60A 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK455-60B 60 0.045 38 125 TO220AB 2SK2232 B Philips BUK455-60H 60 0.03 43 125 TO220AB 2SK2385 B Philips BUK456-1000B 1000 5 3.1 125 TO220AB 2SK1119 A Philips BUK456-100A 100 0.057 34 150 TO220AB 2SK2466 B Philips BUK456-100B 100 0.065 32 150 TO220AB 2SK2314 A Philips BUK456-200A 200 0.16 19 150 TO220AB YTA640 A Philips BUK456-200B 200 0.2 17 150 TO220AB YTA640 A Philips BUK456-60A 60 0.028 52 150 TO220AB 2SK2385 B Philips BUK456-60B 60 0.03 51 150 TO220AB 2SK2385 B Philips BUK456-60H 60 0.02 60 150 TO220AB 2SK2312 B Philips BUK456-800A 800 3 4 125 TO220AB 2SK2603 A Philips BUK456-800B 800 4 3.5 125 TO220AB 2SK2603 A Philips BUK462-100A 100 0.25 11 60 D2PAK 2SK2399 B Philips BUK462-60A 60 0.13 15 60 D2PAK 2SK2231 B Philips BUK463-100A 100 0.16 14 75 D2PAK 2SK2789 A Philips BUK463-60A 60 0.08 22 75 D2PAK 2SK2311 A Philips BUK464-200A 200 0.4 9.2 90 D2PAK 2SK2401 A Philips BUK464-60H 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK465-100A 100 0.08 26 125 D2PAK 2SK2789 A Philips BUK465-200A 200 0.23 14 125 D2PAK 2SK2401 A Philips BUK465-60A 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK465-60H 60 0.03 43 125 D2PAK 2SK2266 A Philips BUK466-100A 100 0.057 34 150 D2PAK 2SK2466 B Philips BUK466-200A 200 0.16 19 150 D2PAK 2SK2401 A Philips BUK466-60A 60 0.028 52 150 D2PAK 2SK2266 A Philips BUK466-60H 60 0.02 60 150 D2PAK 2SK2376 A Philips BUK472-100A 100 0.25 6.6 22 TO-220IS 2SK2399 B Philips Revised 1Q '99 -7- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK472-100B 100 0.3 6.1 22 TO-220IS Philips BUK472-60A 60 0.13 10 22 TO-220IS 2SK2231 B Philips BUK472-60B 60 0.15 9.2 22 TO-220IS 2SK2231 B Philips BUK473-100A 100 0.16 9 25 TO-220IS 2SK2391 A Philips BUK473-100B 100 0.2 8 25 TO-220IS 2SK2399 B Philips BUK473-60A 60 0.08 13 25 TO-220IS 2SK2232 A Philips BUK473-60B 60 0.1 12 25 TO-220IS 2SK2232 A Philips BUK474-200A 200 0.4 5.3 25 TO-220IS 2SK2350 A Philips BUK474-200B 200 0.5 4.7 25 TO-220IS 2SK2350 A Philips BUK474-60H 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK475-100A 100 0.08 14 30 TO-220IS 2SK2391 A Philips BUK475-100B 100 0.1 12 30 TO-220IS 2SK2391 A Philips BUK475-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK475-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK475-60A 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK475-60B 60 0.045 20 30 TO-220IS 2SK2232 A Philips BUK475-60H 60 0.03 22.5 30 TO-220IS 2SK2385 A Philips BUK481-100A 100 0.8 1 1.5 SOT223 2SK2742 A Philips BUK481-60A 60 0.35 1.6 1.5 SOT223 2SK2741 A Philips BUK482-100A 100 0.28 1.8 1.8 SOT223 2SK2742 A Philips BUK482-200A 200 0.9 2 8.3 SOT223 Philips BUK482-60A 60 0.13 2.5 1.7 SOT223 2SK2741 A Philips BUK483-60A 60 0.1 3.2 1.8 SOT223 Philips BUK542-100A 100 0.28 6.3 22 TO-220IS 2SK2399 B Philips BUK542-100B 100 0.35 5.6 22 TO-220IS Philips BUK542-60A 60 0.15 9.2 22 TO-220IS 2SK2231 B Philips BUK542-60B 60 0.18 8.4 22 TO-220IS 2SK2231 B Philips BUK543-100A 100 0.18 8.3 25 TO-220IS 2SK2391 A Philips BUK543-100B 100 0.22 7.5 25 TO-220IS 2SK2399 B Philips BUK543-60A 60 0.085 13 25 TO-220IS 2SK2232 A Philips BUK543-60B 60 0.1 12 25 TO-220IS 2SK2232 A Philips BUK545-100A 100 0.085 13 30 TO-220IS 2SK2391 A Philips BUK545-100B 100 0.11 12 30 TO-220IS 2SK2391 A Philips BUK545-200A 200 0.23 7.6 30 TO-220IS 2SK2382 A Philips BUK545-200B 200 0.28 7 30 TO-220IS 2SK2965 A Philips BUK545-60A 60 0.042 20 30 TO-220IS 2SK2232 A Philips BUK545-60B 60 0.055 18 30 TO-220IS 2SK2232 A Philips BUK545-60H 60 0.038 21 30 TO-220IS 2SK2385 A Philips BUK552-100A 100 0.28 10 60 TO220AB 2SK2399 B Philips BUK552-100B 100 0.35 8.5 60 TO220AB Philips BUK552-60A 60 0.15 14 60 TO220AB 2SK2231 B Philips BUK552-60B 60 0.18 13 60 TO220AB 2SK2231 B Philips BUK553-100A 100 0.18 13 75 TO220AB 2SK2314 A Philips BUK553-100B 100 0.22 12 75 TO220AB 2SK2399 B Philips BUK553-48C 48 0.085 21 75 TO220AB Philips BUK553-60A 60 0.085 21 75 TO220AB 2SK2232 B Philips BUK553-60B 60 0.1 20 75 TO220AB 2SK2232 B Philips BUK554-200A 200 0.4 9.2 90 TO220AB YTA630 A Philips BUK554-200B 200 0.5 8.2 90 TO220AB YTA630 A Philips BUK554-60H 60 0.042 39 125 TO220AB 2SK2232 B Philips Revised 1Q '99 -8- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK555-100A 100 0.085 25 125 TO220AB 2SK2314 A Philips BUK555-100B 100 0.11 22 125 TO220AB 2SK2314 A Philips BUK555-200A 200 0.23 14 125 TO220AB YTA640 A Philips BUK555-200B 200 0.28 13 125 TO220AB 2SK2965 B Philips BUK555-60A 60 0.042 39 125 TO220AB 2SK2232 B Philips BUK555-60B 60 0.055 35 125 TO220AB 2SK2232 B Philips BUK555-60H 60 0.038 41 125 TO220AB 2SK2385 B Philips BUK556-60A 60 0.026 50 150 TO220AB 2SK2385 B Philips BUK556-60H 60 0.022 60 150 TO220AB 2SK2312 B Philips BUK562-100A 100 0.28 10 60 D2PAK 2SK2399 B Philips BUK-562A 60 0.15 14 60 D2PAK 2SK2231 B Philips BUK563-100A 100 0.18 13 75 D2PAK 2SK2789 A Philips BUK563-48C 48 0.085 21 75 D2PAK Philips BUK563-60A 60 0.085 21 75 D2PAK 2SK2311 A Philips BUK564-200A 200 0.4 9.2 90 D2PAK 2SK2401 A Philips BUK564-60H 60 0.042 39 125 D2PAK 2SK2311 A Philips BUK565-100A 100 0.085 14 30 D2PAK 2SK2789 A Philips BUK565-200A 200 0.23 14 125 D2PAK 2SK2401 A Philips BUK565-60A 60 0.042 39 125 D2PAK 2SK2311 A Philips BUK565-60H 60 0.038 41 125 D2PAK 2SK2266 A Philips BUK566-60A 60 0.026 50 150 D2PAK 2SK2266 A Philips BUK566-60H 60 0.022 60 150 D2PAK 2SK2376 A Philips BUK573-48C 48 0.085 13 50 TO-220IS Philips BUK574-60H 60 0.042 20 30 TO-220IS 2SK2232 A Philips BUK581-100A 100 0.9 0.9 1.5 SOT223 Philips BUK581-60A 60 0.4 1.5 1.5 SOT223 2SK2741 A Philips BUK582-100A 100 0.31 1.7 1.8 SOT223 2SK2742 A Philips BUK582-60A 60 0.15 2.7 1.7 SOT223 2SK2741 A Philips BUK583-60A 60 0.1 3.2 1.8 SOT223 Philips BUK7508-55 55 0.008 75 187 TO220AB 2SK2985 B Philips BUK7514-55 55 0.014 68 142 TO220AB 2SK2312 B Philips BUK7518-55 55 0.018 57 125 TO220AB 2SK2312 B Philips BUK7520-55 55 0.02 52 115 TO220AB 2SK2312 B Philips BUK7524-55 55 0.024 45 103 TO220AB 2SK2385 B Philips BUK7530-55 55 0.03 30 75 TO220AB 2SK2385 B Philips BUK7540-55 55 0.04 10.7 8.3 SOT223 Philips BUK7570-55 55 0.07 19 60 TO220AB 2SK2232 B Philips BUK7608-55 55 0.008 75 187 D2PAK 2SK2986 A Philips BUK7614-55 55 0.014 68 142 D2PAK 2SK2376 A Philips BUK7618-55 55 0.018 57 125 D2PAK 2SK2376 A Philips BUK7620-55 55 0.02 52 115 D2PAK 2SK2376 A Philips BUK7624-55 55 0.024 45 103 D2PAK 2SK2266 A Philips BUK7630-55 55 0.03 30 75 D2PAK 2SK2266 A Philips BUK7670-55 55 0.07 19 60 D2PAK 2SK2311 A Philips BUK78150-55 55 0.15 5.5 8.3 SOT223 2SK2741 A Philips BUK7880-55 55 0.08 7.5 8.3 SOT223 Philips BUK9508-55 55 0.008 75 187 TO220AB 2SK2985 B Philips BUK9514-55 55 0.014 68 142 TO220AB 2SK2312 B Philips BUK9518-55 55 0.018 57 125 TO220AB 2SK2312 B Philips BUK9520-55 55 0.02 52 115 TO220AB 2SK2312 B Philips Revised 1Q '99 -9- A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUK9524-55 55 0.024 45 103 TO220AB 2SK2385 B Philips BUK9530-55 55 0.03 30 75 TO220AB 2SK2385 B Philips BUK9570-55 55 0.07 19 60 TO220AB 2SK2232 B Philips BUK9608-55 55 0.008 75 187 D2PAK 2SK2986 A Philips BUK9614-55 55 0.014 68 142 D2PAK 2SK2376 A Philips BUK9618-55 55 0.018 57 125 D2PAK 2SK2376 A Philips BUK9620-55 55 0.02 52 115 D2PAK 2SK2376 A Philips BUK9624-55 55 0.024 45 103 D2PAK 2SK2266 A Philips BUK9630-55 55 0.03 30 75 D2PAK 2SK2266 A Philips BUK9670-55 55 0.07 19 60 D2PAK 2SK2311 A Philips BUK98150-55 55 0.15 5.5 8.3 SOT223 2SK2741 A Philips BUK9840-55 55 0.04 10.7 8.3 SOT223 Philips BUK9880-55 55 0.08 7.5 8.3 SOT223 Philips BUZ10 50 0.07 23 75 TO-220AB 2SK2507 B Siemens BUZ100 50 0.018 58 TO-220AB 2SK2886 B Siemens BUZ100L 50 0.018 60 TO-220AB 2SK2886 B Siemens BUZ100S 55 0.015 77 TO-220AB 2SK2312 B Siemens BUZ100SL 55 0.018 70 TO-220AB 2SK2312 B Siemens BUZ101 50 0.06 25 100 TO-220AB 2SK2507 B Siemens BUZ101L 50 0.06 29 TO-220AB 2SK2507 B Siemens BUZ101S 55 0.06 23 TO-220AB 2SK2232 B Siemens BUZ101SL 55 0.07 21 TO-220AB 2SK2232 B Siemens BUZ102 50 0.023 42 180 TO-220AB 2SK2886 B Siemens BUZ102AL 50 0.028 42 TO-220AB 2SK2886 B Siemens BUZ102S 55 0.023 52 TO-220AB 2SK2312 B Siemens BUZ102SL 55 0.028 47 TO-220AB 2SK2385 B Siemens BUZ103 50 0.04 40 120 TO-220AB 2SK2385 B Siemens BUZ103AL 50 0.05 35 TO-220AB 2SK2507 B Siemens BUZ103S 55 0.04 31 TO-220AB 2SK2232 B Siemens BUZ103SL 55 0.05 28 TO-220AB 2SK2232 B Siemens BUZ104 50 0.1 17.5 60 TO-220AB 2SK2507 B Siemens BUZ104L 50 0.1 17.5 TO-220AB 2SK2507 B Siemens BUZ104S 55 0.1 14 TO-220AB 2SK2232 B Siemens BUZ104SL 55 0.12 12.8 TO-220AB 2SK2232 B Siemens BUZ10L 50 0.07 23 75 TO-220AB 2SK2507 B Siemens BUZ10S2 60 0.07 23 75 TO-220AB 2SK2232 B Siemens BUZ11 50 0.04 30 75 TO-220AB 2SK2507 B Siemens BUZ110S 55 0.012 80 TO-220AB Siemens BUZ110SL 55 0.015 80 TO-220AB 2SK2312 B Siemens BUZ111S 55 0.008 80 TO-220AB 2SK2985 B Siemens BUZ111SL 55 0.01 80 TO-220AB Siemens BUZ11A 50 0.055 26 75 TO-220AB 2SK2507 B Siemens BUZ11AL 50 0.055 26 75 TO-220AB 2SK2507 B Siemens BUZ11FI 50 0.04 21 40 TO-220IS 2SK2385 A ST BUZ11S2 60 0.04 30 75 TO-220AB 2SK2385 B Siemens BUZ12 50 0.028 42 125 TO-220AB 2SK2886 B Siemens BUZ12A 50 0.035 42 125 TO-220AB 2SK2886 B Siemens BUZ12AL 50 0.035 42 125 TO-220AB 2SK2886 B Siemens BUZ171 -50 0.3 -8 40 TO-220AB 2SJ438 B Siemens BUZ172 -100 0.6 -5.5 40 TO-220AB Siemens Revised 1Q '99 - 10 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUZ173 -200 1.5 -3 40 TO-220AB 2SJ407 B Siemens BUZ20 100 0.2 13.5 75 TO-220AB 2SK2399 B Siemens BUZ205 400 1 6 75 TO-220AB 2SK2679 B Siemens BUZ21 100 0.085 21 75 TO-220AB 2SK2314 A Siemens BUZ215 500 1.5 5.1 75 TO-220AB 2SK2661 A Siemens BUZ21L 100 0.085 21 75 TO-220AB 2SK2314 A Siemens BUZ22 100 0.055 34 125 TO-220AB 2SK2466 B Siemens BUZ255 250 0.24 13 95 TO-220AB 2SK2508 B Siemens BUZ271 -50 0.15 -22 40 TO-220AB 2SJ464 B Siemens BUZ272 -100 0.3 -15 40 TO-220AB 2SJ380 B Siemens BUZ305 800 1 7.5 150 TO-218 2SK2607 A Siemens BUZ307 800 3 3 75 TO-218 2SK2603 B Siemens BUZ308 800 4 2.6 75 TO-218 2SK2603 B Siemens BUZ30A 200 0.13 21 125 TO-220AB YTA640 A Siemens BUZ31 200 0.2 13.5 75 TO-220AB YTA640 A Siemens BUZ310 1000 5 2.5 75 TO-218 2SK1359 A Siemens BUZ311 1000 6 2.3 75 TO-218 2SK1359 A Siemens BUZ312 1000 1.5 6 150 TO-218 2SK2613 A Siemens BUZ31L 200 0.2 13.5 75 TO-220AB YTA640 A Siemens BUZ32 200 0.4 9.5 75 TO-220AB YTA630 A Siemens BUZ323 400 0.3 15 170 TO-218 2SK2837 A Siemens BUZ325 400 0.35 12.5 125 TO-218 2SK2698 A Siemens BUZ326 400 0.5 10.5 125 TO-218 2SK2841 B Siemens BUZ330 500 0.6 9.5 125 TO-218 2SK2842 B Siemens BUZ331 500 0.8 8 125 TO-218 2SK2601 A Siemens BUZ332 600 0.8 8.5 150 TO-218 2SK2699 A Siemens BUZ332A 600 0.9 8 150 TO-218 2SK2699 A Siemens BUZ333 500 0.4 13.5 170 TO-218 2SK2698 A Siemens BUZ334 600 0.5 12 180 TO-218 2SK2915 A Siemens BUZ338 500 0.4 13.5 TO-218 2SK2698 A Siemens BUZ339 500 0.5 11.5 170 TO-218 2SK2698 A Siemens BUZ341 200 0.07 33 170 TO-218 2SK3176 A Siemens BUZ342 50 0.01 60 400 TO-218 2SK2551 A Siemens BUZ344 100 0.035 46 170 TO-218 2SK1381 A Siemens BUZ345 100 0.045 41 150 TO-218 2SK2466 B Siemens BUZ346 50 0.018 58 125 TO-218 2SK2744 A Siemens BUZ346S2 60 0.018 58 170 TO-218 2SK2173 A Siemens BUZ347 50 0.03 45 125 TO-218 2SK2550 A Siemens BUZ349 100 0.06 32 125 TO-218 2SK2466 B Siemens BUZ350 200 0.12 22 125 TO-218 2SK2382 B Siemens BUZ351 400 0.4 11.5 TO-218 2SK2698 A Harris BUZ355 800 1.5 6 125 TO-218 2SK2746 A Siemens BUZ356 800 2 5 125 TO-218 2SK2604 A Siemens BUZ357 1000 2 5 125 TO-218 2SK1120 A Siemens BUZ358 1000 2.6 4.5 125 TO-218 2SK1120 A Siemens BUZ380 1000 2 5.5 125 TO-218 2SK1120 A Siemens BUZ382 400 0.4 12.5 125 TO-218 2SK2698 A Siemens BUZ384 500 0.6 10.5 125 TO-218 2SK2842 B Siemens BUZ385 500 0.8 9 125 TO-218 2SK2601 A Siemens BUZ40B 500 0.8 8 150 TO-220AB 2SK2542 A Siemens Revised 1Q '99 - 11 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement BUZ41A 500 1.5 4.5 75 TO-220AB 2SK2661 A Siemens BUZ42 500 2 4 75 TO-220AB 2SK2661 A Siemens BUZ50A 1000 5 2.5 75 TO-220AB 2SK1119 A Siemens BUZ50B 1000 8 2 75 TO-220AB 2SK1119 A Siemens BUZ50C 1000 6 2.3 75 TO-220AB 2SK1119 A Siemens BUZ51 1000 4 3.4 125 TO-220AB 2SK1119 A Siemens BUZ60 400 1 5.5 75 TO-220AB 2SK2679 B Siemens BUZ60B 400 1.5 4.5 TO-220AB 2SK2679 B Harris BUZ61 400 0.4 12.5 150 TO-220AB 2SK2841 A Siemens BUZ61A 400 0.5 11 150 TO-220AB 2SK2841 A Siemens BUZ70 60 0.15 12 40 TO-220AB 2SK2231 B Siemens BUZ70L 60 0.15 12 40 TO-220AB 2SK2231 B Siemens BUZ71 50 0.1 14 40 TO-220AB 2SK2507 B Siemens BUZ71A 50 0.12 13 40 TO-220AB 2SK2507 B Siemens BUZ71AFI 50 0.12 11 35 TO-220IS 2SK2507 A ST BUZ71AL 50 0.12 13 40 TO-220AB 2SK2507 B Siemens BUZ71FI 50 0.1 12 35 TO-220IS 2SK2507 A ST BUZ71L 50 0.1 14 40 TO-220AB 2SK2507 B Siemens BUZ71S2 60 0.1 14 40 TO-220AB 2SK2232 B Siemens BUZ72 100 0.2 10 40 TO-220AB 2SK2399 B Siemens BUZ72A 100 0.25 9 40 TO-220AB 2SK2399 B Siemens BUZ72A 100 0.25 11 TO-220 2SK2399 B ST BUZ72AL 100 0.25 9 40 TO-220AB 2SK2399 B Siemens BUZ72L 100 0.2 10 40 TO-220AB 2SK2399 B Siemens BUZ73 200 0.4 7 40 TO-220AB YTA630 A Siemens BUZ73A 200 0.6 5.8 40 TO-220AB YTA630 A Siemens BUZ73AL 200 0.6 5.8 40 TO-220AB YTA630 A Siemens BUZ73L 200 0.4 7 40 TO-220AB YTA630 A Siemens BUZ74 500 3 2.4 40 TO-220AB 2SK2862 B Siemens BUZ74A 500 4 2.1 40 TO-220AB 2SK2862 B Siemens BUZ76 400 1.8 3 40 TO-220AB 2SK2679 B Siemens BUZ76A 400 2.5 2.6 40 TO-220AB 2SK2862 B Siemens BUZ77A 600 4 2.7 75 TO-220AB 2SK3067 B Siemens BUZ77B 600 3.5 2.9 75 TO-220AB 2SK3085 A Siemens BUZ78 800 8 1.5 40 TO-220AB 2SK2997 B Siemens BUZ80 800 4 2.6 75 TO-220AB 2SK2603 A Siemens BUZ80A 800 3 3 75 TO-220AB 2SK2603 A Siemens BUZ80AFI 800 3 2.4 40 TO-220IS 2SK2603 B ST BUZ80FI 800 4 2.1 40 TO-220IS 2SK2603 B ST BUZ81 800 2.5 4 125 TO-220AB 2SK2605 B Siemens BUZ90 600 1.6 4.5 75 TO-220AB 2SK2544 A Siemens BUZ90A 600 2 4 75 TO-220AB 2SK3085 A Siemens BUZ91 600 0.8 8.5 150 TO-220AB 2SK2866 A Siemens BUZ91A 600 0.9 8 150 TO-220AB 2SK2866 A Siemens BUZ92 600 3 3.2 75 TO-220AB 2SK3085 A Siemens BUZ93 600 2.5 3.6 75 TO-220AB 2SK2750 B Siemens F10H3N* 30 0.015 10 SOP-8(Single) TPC8005-H A Shindengen F2H3ND 30 0.18 2.5 SOP-8(Dual) Shindengen F3H3C 30/-30 0.18/0.2 2.5/-2.5 SOP-8(P&N) Shindengen F3H3ND 30 0.11 3 SOP-8(Dual) TPC8201 A Shindengen Revised 1Q '99 - 12 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement F3H3P -30 0.2 -2.5 SOP-8(Single) Shindengen F3H3PD -30 0.2 -2.5 SOP-8(Dual) Shindengen F4H3C 30/-30 0.07/0.15 4/-3.5 SOP-8(P&N) TPC8401 A Shindengen F4H3N 30 0.07 4 SOP-8(Single) TPC8004 A Shindengen F4H3ND 30 0.07 4 SOP-8(Dual) TPC8201 A Shindengen F4H3P -30 0.15 -3.5 SOP-8(Single) Shindengen F4H3PD -30 0.15 -3.5 SOP-8(Dual) TPC8301 A Shindengen F5H2ND 20 0.04 5 SOP-8(Dual) TPC8202 A Shindengen F5H3N 30 0.05 5 SOP-8(Single) TPC8004 A Shindengen F5H3ND 30 0.05 5 SOP-8(Dual) TPC8201 A Shindengen F5H3P -30 0.09 -4.5 SOP-8(Single) TPC8104-H A Shindengen F7H2N 20 0.022 7 SOP-8(Single) TPC8008 A Shindengen F7H3P* -30 0.05 -6.5 SOP-8(Single) TPC8105-H A Shindengen F8H3N 30 0.03 8 SOP-8(Single) TPC8006-H A Shindengen F9H4N 40 0.03 9 SOP-8(Single) Shindengen FA38SA50LC 500 0.13 38 500 SOT-227 IR FA57SA50LC 500 0.08 57 625 SOT-227 IR FDC6301N 25 4 0.22 0.9 SSOT-6(Dual) Fairchild FDC6302P -25 10 -0.12 0.9 SSOT-6(Dual) Fairchild FDC6303N 25 0.45 0.68 0.9 SSOT-6(Dual) Fairchild FDC6304P -25 1.1 -0.46 0.9 SSOT-6(Dual) Fairchild FDC6306P -20 0.16 -1.9 0.9 SSOT-6(Dual) Fairchild FDC6320C 25/-25 4/10 0.22/-0.12 0.9 SSOT-6(P&N) Fairchild FDC6321C 25/-25 0.045/1.1 0.68/-0.46 0.9 SSOT-6(P&N) Fairchild FDC6322C 25/-25 4/1.1 0.22/-0.46 0.9 SSOT-6(P&N) Fairchild FDC633N 30 0.042 5.2 1.6 SSOT-6(Single) Fairchild FDC634P -20 0.08 -3.5 1.6 SSOT-6(Single) Fairchild FDC636P -20 0.13 -2.8 1.6 SSOT-6(Single) Fairchild FDC638P -20 0.05 -4.5 1.6 SSOT-6(Single) Fairchild FDC6506P -30 0.165 -1.8 0.9 SSOT-6(Dual) Fairchild FDC653N 30 0.035 5 1.6 SSOT-6(Single) Fairchild FDC654P -30 0.075 -3.6 1.6 SSOT-6(Single) Fairchild FDC655AN 30 0.027 6.3 1.6 SSOT-6(Single) Fairchild FDC6561AN 30 0.095 2.5 0.9 SSOT-6(Dual) Fairchild FDC658P -30 0.05 -4 1.6 SSOT-6(Single) Fairchild FDG6301N 25 4 0.22 0.3 SC70-6(Dual) Fairchild FDG6302P -25 10 -0.14 0.3 SC70-6(Dual) Fairchild FDG6303N 25 0.45 0.5 0.3 SC70-6(Dual) Fairchild FDG6304P -25 1.1 -0.41 0.3 SC70-6(Dual) Fairchild FDG6320C 25/-25 4/10 0.22/-0.14 0.3 SC70-6(P&N) Fairchild FDG6321C 25/-25 0.45/1.10 0.50/-0.41 0.3 SC70-6(P&N) Fairchild FDG6322C 25/-25 4/1.10 0.22/-0.41 0.3 SC70-6(P&N) Fairchild FDN336P -20 0.2 -1.3 0.5 SOT-23 Fairchild FDN337N 30 0.065 2.2 0.5 SOT-23 Fairchild FDN338P -20 0.13 -1.6 0.5 SOT-23 Fairchild FDN340P -20 0.07 -2 0.5 SOT-23 Fairchild FDN357N 30 0.06 2.2 0.5 SOT-23 Fairchild FDN358P -30 0.125 -1.5 0.5 SOT-23 Fairchild FDN359AN 30 0.044 2.7 0.5 SOT-23 Fairchild FDN360P -30 0.085 -2 0.5 SOT-23 Fairchild Revised 1Q '99 - 13 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID PD Package Toshiba Note Vender Number (V) (ohm) (A) (W) Replacement FDP4030L 30 0.035 20 37.5 TO-220AB 2SK2844 A Fairchild FDP6030L 30 0.0135 52 75 TO-220AB 2SK3127 B Fairchild FDP6035AL 30 0.0125 48 58 TO-220AB 2SK3127 B Fairchild FDP6035L 30 0.011 58 75 TO-220AB 2SK3127 B Fairchild FDP603AL 30 0.022 33 50 TO-220AB 2SK2844 A Fairchild FDP6670AL 30 0.0065 80 75 TO-220AB Fairchild FDP7030BL 30 0.009 60 65 TO-220AB 2SK3127 B Fairchild FDP7030L 30 0.007 100 125 TO-220AB Fairchild FDP8030L 30 0.0035 80 187 TO-220AB Fairchild FDPNDP6030 30 0.018 46 75 TO-220AB 2SK2844 A Fairchild FDR4410 30 0.013 9.3 1.8 SSOT-8(Single) Fairchild FDR4420A 30 0.009 11 1.8 SSOT-8(Single) Fairchild FDR8308P -20 0.05 -3.2 0.8 SSOT-8(Dual) Fairchild FDR835N 30 0.015 8.7 1.8 SSOT-8(Single) Fairchild FDR836P -20 0.03 -6.1 1.8 SSOT-8(Single) Fairchild FDR838P -20 0.017 -8.1 1.8 SSOT-8(Single) Fairchild FDR8508P -30 0.052 -3 0.8 SSOT-8(Dual) Fairchild FDR856P -30 0.025 -6.3 1.8 SSOT-8(Single) Fairchild FDR858P -30 0.019 -8 1.8 SSOT-8(Single) Fairchild FDR9410A 30 0.028 5.8 1.8 SSOT-8(Single) Fairchild FDS4435 -30 0.02 -9 2.5 SOP-8(Single) TPC8106-H A Fairchild FDS4953 -30 0.053 -4.9 2 SOP-8(Dual) TPC8303 A Fairchild FDS6575 -20 0.013 -10 2.5 SOP-8(Single) TPC8103 A Fairchild FDS6612A 30 0.022 8.4 SOP-8(Single) TPC8001 A Fairchild FDS6670A 30 0.008 13 SOP-8(Single) TPC8007-H A Fairchild FDS6675 -30 0.014 -11 2.5 SOP-8(Single) TPC8103 A Fairchild FDS6680 30 0.01 11.5 SOP-8(Single) TPC8007-H A Fairchild FDS6680A 30 0.0095 12.5 SOP-8(Single) TPC8007-H A Fairchild FDS6690A 30 0.0125 11 SOP-8(Single) TPC8005-H A Fairchild FDS6875 -20 0.03 -6 2 SOP-8(Dual) Fairchild FDS6912A 30 0.028 6 2 SOP-8(Dual) TPC8203 A Fairchild FDS6930A 30 0.042 4.6 2 SOP-8(Dual) TPC8201 A Fairchild FDS6961A 30 0.09 3.5 2 SOP-8(Dual) TPC8201 A Fairchild FDS6975 -30 0.032 -6 2 SOP-8(Dual) TPC8303 A Fairchild FDS6990A 30 0.018 7.5 2 SOP-8(Dual) TPC8203 A Fairchild FDS8926A 30 0.03 5.5 2 SOP-8(Dual) TPC8203 A Fairchild FDS8928A 30/-20 0.03/0.055 5.5/-4 2 SOP-8(P&N) Fairchild FDS8934A -20 0.055 -4 SOP-8(Dual) Fairchild FDS8936A 30 0.028 6 SOP-8(Dual) TPC8203 A Fairchild FDS8936S 30 0.04 5 SOP-8(Dual) TPC8201 A Fairchild FDS8947A -30 0.052 -4 2 SOP-8(Dual) TPC8303 A Fairchild FDS8958A 30/-30 0.028/0.052 7/-5 2 SOP-8(P&N) TPC8401 A Fairchild FDS9412 30 0.022 7.9 SOP-8(Single) TPC8001 A Fairchild FDS9435A -30 0.045 -5.3 SOP-8(Single) TPC8105-H A Fairchild FDS9933A -20 0.075 -3.8 2 SOP-8(Dual) Fairchild FDS9936A 30 0.04 5.5 2 SOP-8(Dual) TPC8201 A Fairchild FDT457N 30 0.06 5 3 SOT-223 2SK2839 A Fairchild FDT459N 30 0.04 6.5 3 SOT-223 2SK2839 A Fairchild FDT5060 60 0.05 7 3 SOT-223 Fairchild FDT5060L 60 0.04 6 3 SOT-223 Fairchild Revised 1Q '99 - 14 - A:Nearest, B:Different Package Power MOSFETs Cross Reference Alphanumerically Part VDSS RDS(ON) ID
