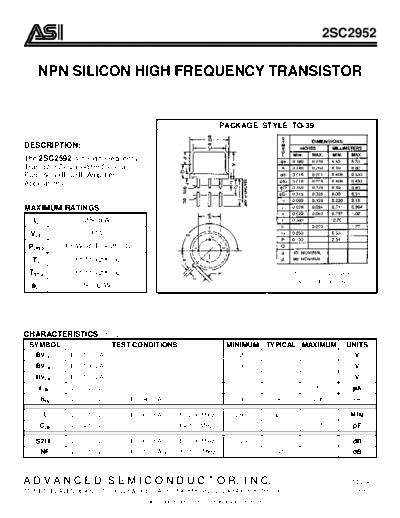

Image preview - the first page of the document



>> Download 2sc2952 documenatation <<

Text preview - extract from the document

                                                                                                                            2SC2952

    NPN SILICON HIGH FREQUENCY TRANSISTOR


                                                                                  PACKAGE STYLE TO-39

DESCRIPTION:
The 2SC2592 is a High Frequency
Transistor Designed for General
Purpose VHF-UHF Amplifier
Applications.


MAXIMUM RATINGS
   IC                   250 mA
  VCE                     30 V
                                        O
 PDISS             3.5 W @ TC = 25 C
                                    O
  TJ                 -65 to +200 C
                                    O
 TSTG                -65 to +200 C                                                                              1 = Emitter    2 = Base
                           O                                                                                    3 & 4 = Collector (Case)
  JC                    50 C/W




CHARACTERISTICS                         O
                                  TC = 25 C

 SYMBOL                             TEST CONDITIONS                                  MINIMUM TYPICAL MAXIMUM                          UNITS
   BVCEO            IC = 1.0 mA                                                            20                                               V
   BVCBO            IC = 100
