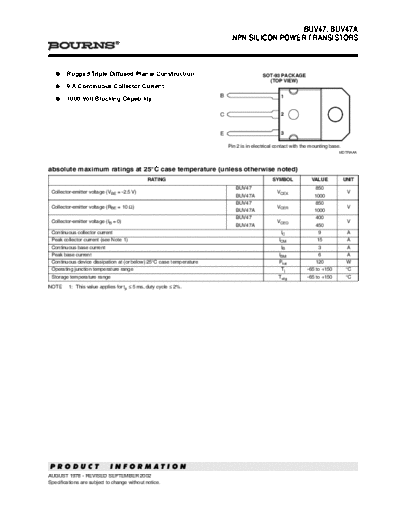

Image preview - the first page of the document



>> Download buv47-a documenatation <<

Text preview - extract from the document

                                                                                           BUV47, BUV47A
                                                                          NPN SILICON POWER TRANSISTORS



        Rugged Triple-Diffused Planar Construction                                       SOT-93 PACKAGE
                                                                                           (TOP VIEW)
        9 A Continuous Collector Current
                                                                     B                            1
        1000 Volt Blocking Capability

                                                                     C                            2


                                                                     E                            3

                                                                         Pin 2 is in electrical contact with the mounting base.
                                                                                                                              MDTRAAA



absolute maximum ratings at 25
