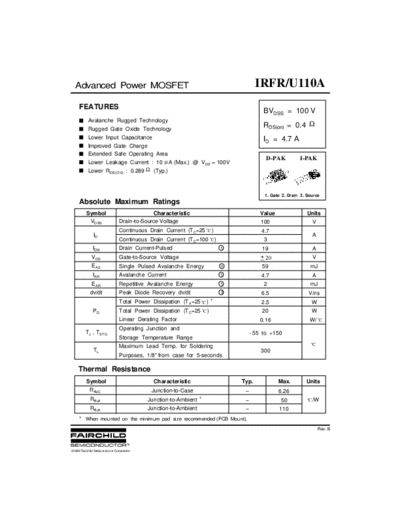

Image preview - the first page of the document

>> Download irfr110a_irfu110a documenatation <<

Text preview - extract from the document
   Advanced Power MOSFET                                                                 IRFR/U110A
                                                                                            BVDSS = 100 V
           Avalanche Rugged Technology
           Rugged Gate Oxide Technology
                                                                                            RDS(on) = 0.4
           Lower Input Capacitance                                                          ID = 4.7 A
           Improved Gate Charge
           Extended Safe Operating Area
                                                                                               D-PAK                       I-PAK
           Lower Leakage Current : 10
