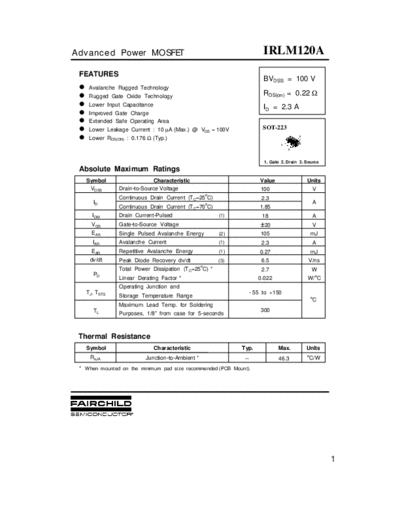

Image preview - the first page of the document
irlm120a


>> Download irlm120a documenatation <<

Text preview - extract from the document
Advanced Power MOSFET                                                     IRLM120A
 FEATURES
                                                                          BVDSS = 100 V
 n Avalanche Rugged Technology
 n Rugged Gate Oxide Technology
                                                                          RDS(on) = 0.22
 n Lower Input Capacitance                                                ID = 2.3 A
 n Improved Gate Charge
 n Extended Safe Operating Area
 n Lower Leakage Current : 10
