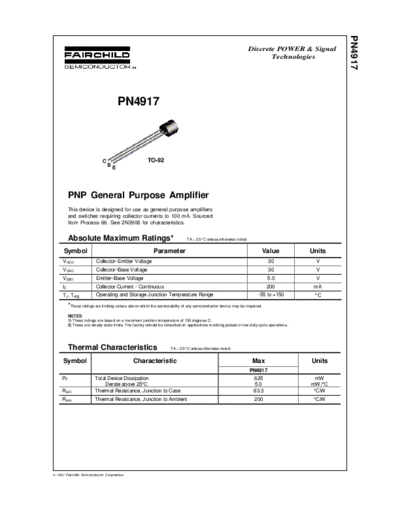

                                                                                                                                                     PN4917
                                                                                                                   Discrete POWER & Signal
                                                                                                                          Technologies




                                      PN4917



                             C                          TO-92
                                 BE




          PNP General Purpose Amplifier
          This device is designed for use as general purpose amplifiers
          and switches requiring collector currents to 100 mA. Sourced
          from Process 66. See 2N3906 for characteristics.


          Absolute Maximum Ratings*                                            TA = 25
