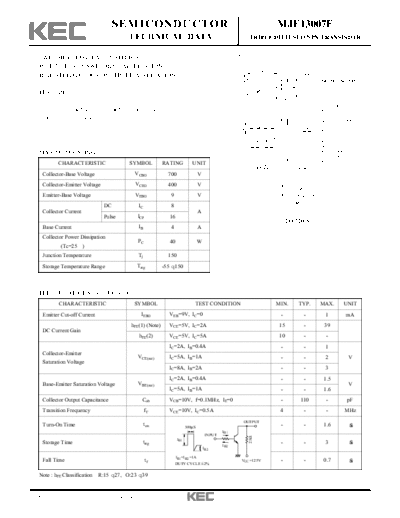

Image preview - the first page of the document
>> Download mje13007f documenatation <<Text preview - extract from the document SEMICONDUCTOR MJE13007F
TECHNICAL DATA TRIPLE DIFFUSED NPN TRANSISTOR
SWITCHING REGULATOR APPLICATION.
HIGH VOLTAGE SWITCHING APPLICATION.
HIGH SPEED DC-DC CONVERTER APPLICATION.
FEATURES
Excellent Switching Times
: ton=1.6 S(Max.), tf=0.7 S(Max.), at IC=5A
High Collector Voltage : VCBO=700V.
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO 700 V
Collector-Emitter Voltage VCEO 400 V
Emitter-Base Voltage VEBO 9 V
DC IC 8
Collector Current A
Pulse ICP 16
Base Current IB 4 A
Collector Power Dissipation
PC 40 W
(Tc=25 )
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Emitter Cut-off Current IEBO VEB=9V, IC=0 - - 1 mA
hFE(1) (Note) VCE=5V, IC=2A 15 - 39
DC Current Gain
hFE(2) VCE=5V, IC=5A 10 - -
IC=2A, IB=0.4A - - 1
Collector-Emitter
VCE(sat) IC=5A, IB=1A - - 2 V
Saturation Voltage
IC=8A, IB=2A - - 3
IC=2A, IB=0.4A - - 1.5
Base-Emitter Saturation Voltage VBE(sat) V
IC=5A, IB=1A - - 1.6
Collector Output Capacitance Cob VCB=10V, f=0.1MHz, IE=0 - 110 - pF
Transition Frequency fT VCE=10V, IC=0.5A 4 - - MHz
OUTPUT
Turn-On Time ton 300
