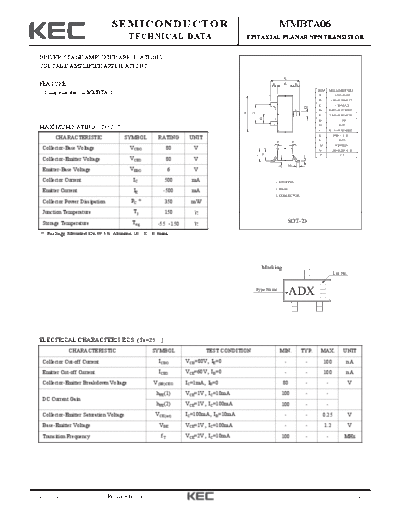

Image preview - the first page of the document
>> Download mmbta06 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR MMBTA06
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
DRIVER STAGE AMPLIFIER APPLICATIONS.
VOLTAGE AMPLIFIER APPLICATIONS.
E
FEATURE L B L
DIM MILLIMETERS
Complementary to MMBTA56. A _
2.93 + 0.20
B 1.30+0.20/-0.15
C 1.30 MAX
D
2 3 0.45+0.15/-0.05
D
A
G
E 2.40+0.30/-0.20
H
1 G 1.90
MAXIMUM RATING (Ta=25 ) H
J
0.95
0.13+0.10/-0.05
K 0.00 ~ 0.10
CHARACTERISTIC SYMBOL RATING UNIT L 0.55
P P
M 0.20 MIN
Collector-Base Voltage VCBO 80 V N 1.00+0.20/-0.10
N
P 7
C
VCEO
J
Collector-Emitter Voltage 80 V
M
K
Emitter-Base Voltage VEBO 6 V
Collector Current IC 500 mA 1. EMITTER
2. BASE
Emitter Current IE -500 mA
3. COLLECTOR
Collector Power Dissipation PC * 350 mW
Junction Temperature Tj 150
Storage Temperature Tstg -55 150 SOT-23
* : Package Mounted On 99.5% Alumina 10 8 0.6mm.
Marking
Lot No.
Type Name
ADX
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=80V, IE=0 - - 100 nA
Emitter Cut-off Current ICEO VCE=60V, IB=0 - - 100 nA
Collector-Emitter Breakdown Voltage V(BR)CEO IC=1mA, IB=0 80 - - V
hFE(1) VCE=1V, IC=10mA 100 - -
DC Current Gain
hFE(2) VCE=1V, IC=100mA 100 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=100mA, IB=10mA - - 0.25 V
Base-Emitter Voltage VBE VCE=1V, IC=100mA - - 1.2 V
Transition Frequency fT VCE=2V, IC=10mA 100 - - MHz
2003. 7. 21 Revision No : 3 1/2
MMBTA06
I C - VCE h FE - I C
400 1k
COMMON COMMON EMITTER
COLLECTOR CURRENT I C (mA)
5 3
EMITTER 500 VCE =1V
DC CURRENT GAIN h FE
Ta=25 C
300 2 300
Ta=100 C
Ta=25 C
200 100
1 Ta=-25 C
50
100 I B =0.5mA 30
0
0 10
0 2 4 6 8 10 1 3 10 30 100 500
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
V CE(sat) - I C I C - VBE
COLLECTOR-EMITTER SATURATION
1 400
COMMON EMITTER
COLLECTOR CURRENT I C (mA)
COMMON EMITTER
I C /I B =10
0.5 V CE =1V
VOLTAGE VCE(sat) (V)
300
0.3
C
200
5 C
C
100
Ta=-25
0.1
Ta=2
Ta=
Ta=100 C
0.05 Ta=25 C 100
Ta=-25 C
0.02 0
1 3 10 30 100 300 500 0 0.2 0.4 0.6 0.8 1.0 1.2
COLLECTOR-CURRENT I C (mA) BASE EMITTER VOLTAGE V BE (V)
Pc - Ta
500
COLLECTOR POWER DISSIPATION
MOUNTED ON 99.5%
ALUMINA 10x8x0.6mm
400
300
PC (mW)
200
100
0
0 25 50 75 100 125 150 175
AMBIENT TEMPERATURE Ta ( C)
2003. 7. 21 Revision No : 3 2/2
