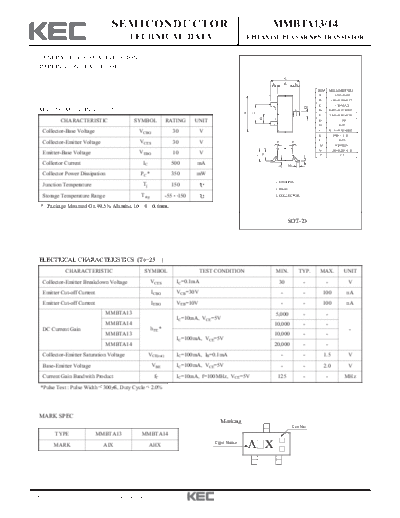

Image preview - the first page of the document
mmbta13_mmbta14


>> Download mmbta13_mmbta14 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                  MMBTA13/14
                                            TECHNICAL DATA                                         EPITAXIAL PLANAR NPN TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  DARLINGTON TRANSISTOR.
                                                                                                                              E
                                                                                                                  L           B           L
                                                                                                                                                     DIM       MILLIMETERS
                                                                                                                                                      A                _
                                                                                                                                                                  2.93 + 0.20
                                                                                                                                                      B        1.30+0.20/-0.15
                                                                                                                                                      C           1.30 MAX




                                                                                                                                               D
                                                                                                                  2
  MAXIMUM RATING (Ta=25                 )                                                                                                 3           D        0.45+0.15/-0.05




                                                                                                  A

                                                                                                      G
                                                                                                                                                      E        2.40+0.30/-0.20




                                                                                                              H
               CHARACTERISTIC                SYMBOL                  RATING    UNIT                               1                                   G               1.90
                                                                                                                                                      H               0.95
                                               VCBO                                                                                                   J        0.13+0.10/-0.05
    Collector-Base Voltage                                             30         V
                                                                                                                                                      K          0.00 ~ 0.10
                                                                                                                                                      L               0.55
    Collector-Emitter Voltage                  VCES                    30         V                                   P               P
                                                                                                                                                      M           0.20 MIN
                                                                                                                                                      N        1.00+0.20/-0.10
    Emitter-Base Voltage                       VEBO                    10         V




                                                                                                              N
                                                                                                          C
                                                                                                                                                      P               7




                                                                                                                                               J
    Collertor Current                               IC                 500     mA                                                 M




                                                                                                                       K
    Collector Power Dissipation                 PC *                   350     mW
                                                                                                                      1. EMITTER
    Junction Temperature                            Tj                 150
                                                                                                                      2. BASE

    Storage Temperature Range                   Tstg                 -55 150                                          3. COLLECTOR


   * : Package Mounted On 99.5% Alumina 10 8               0.6mm.

                                                                                                                                  SOT-23




  ELECTRICAL CHARACTERISTICS (Ta=25                              )
                CHARACTERISTIC                      SYMBOL                        TEST CONDITION                      MIN.                    TYP.    MAX.             UNIT
    Collector-Emitter Breakdown Voltage                   VCES          IC=0.1mA                                          30                   -           -              V
    Emitter Cut-off Current                               ICBO          VCB=30V                                           -                    -       100               nA
    Emitter Cut-off Current                               IEBO          VEB=10V                                           -                    -       100               nA
                                  MMBTA13                                                                             5,000                    -           -
                                                                        IC=10mA, VCE=5V
                                  MMBTA14                                                                         10,000                       -           -
    DC Current Gain                                       hFE *                                                                                                            -
                                  MMBTA13                                                                         10,000                       -           -
                                                                        IC=100mA, VCE=5V
                                  MMBTA14                                                                         20,000                       -           -
    Collector-Emitter Saturation Voltage                 VCE(sat)       IC=100mA, IB=0.1mA                                -                    -       1.5                V
    Base-Emitter Voltage                                  VBE           IC=100mA, VCE=5V                                  -                    -       2.0                V
    Current Gain Bandwith Product                          fT           IC=10mA, f=100MHz, VCE=5V                      125                     -           -            MHz
   *Pulse Test : Pulse Width 300 S, Duty Cycle 2.0%




  MARK SPEC
                                                                                        Marking
                                                                                                                                      Lot No.
         TYPE                 MMBTA13           MMBTA14

         MARK                   AIX                      AHX                          Type Name
                                                                                                      A X



1999. 11. 30                      Revision No : 4                                                                                                                                1/2
                                 MMBTA13/14




1999. 11. 30   Revision No : 4                2/2
