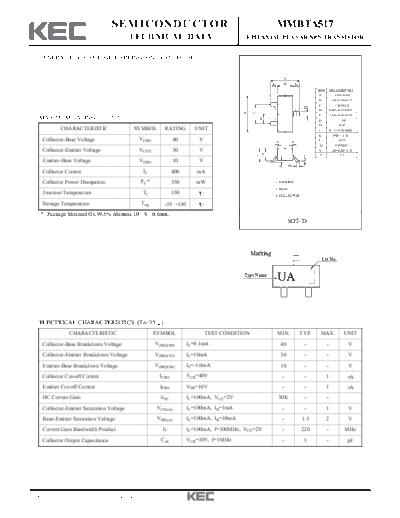

Image preview - the first page of the document
mmbta517


>> Download mmbta517 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                   MMBTA517
                                            TECHNICAL DATA                                     EPITAXIAL PLANAR NPN TRANSISTOR


  GENERAL PURPOSE HIGH DARLINGTON TRANSISTOR.


                                                                                                                            E
                                                                                                               L            B           L
                                                                                                                                                   DIM       MILLIMETERS
                                                                                                                                                    A                _
                                                                                                                                                                2.93 + 0.20
                                                                                                                                                    B        1.30+0.20/-0.15
                                                                                                                                                    C           1.30 MAX




                                                                                                                                             D
                                                                                                               2                        3                    0.45+0.15/-0.05
                                                                                                                                                    D




                                                                                              A

                                                                                                   G
                                                                                                                                                    E        2.40+0.30/-0.20
  MAXIMUM RATING (Ta=25                 )




                                                                                                           H
                                                                                                               1                                    G               1.90
                                                                                                                                                    H               0.95
               CHARACTERISTIC                SYMBOL             RATING       UNIT                                                                   J        0.13+0.10/-0.05
                                                                                                                                                    K          0.00 ~ 0.10
    Collector-Base Voltage                     VCBO               40          V                                    P                P
                                                                                                                                                    L               0.55
                                                                                                                                                    M           0.20 MIN
    Collector-Emitter Voltage                  VCEO               30          V                                                                     N        1.00+0.20/-0.10




                                                                                                           N
                                                                                                       C
                                                                                                                                                    P               7




                                                                                                                                            J
    Emitter-Base Voltage                       VEBO               10          V
                                                                                                                                M




                                                                                                                    K
    Collector Current                               IC            400         mA
    Collector Power Dissipation                 PC *              350        mW                                    1. EMITTER
                                                                                                                   2. BASE
    Junction Temperature                            Tj            150                                              3. COLLECTOR

    Storage Temperature                         Tstg            -55 150
   * : Package Mounted On 99.5% Alumina 10 8             0.6mm.
                                                                                                                                SOT-23




  ELECTRICAL CHARACTERISTICS (Ta=25                         )
                 CHARACTERISTIC                          SYMBOL                   TEST CONDITION                    MIN.                    TYP.    MAX.             UNIT
    Collector-Base Breakdown Voltage                     V(BR)CBO         IC=0.1mA                                     40                    -           -              V
    Collector-Emitter Breakdown Voltage                  V(BR)CEO         IC=10mA                                      30                    -           -              V
    Emitter-Base Breakdown Voltage                       V(BR)EBO         IE=-1.0mA                                    10                    -           -              V
    Collector Cut-off Current                              ICBO           VCB=40V                                       -                    -           1               A
    Emitter Cut-off Current                                IEBO           VEB=10V                                       -                    -           1               A
    DC Current Gain                                         hFE           IC=100mA, VCE=2V                          30K                      -           -
    Collector-Emitter Saturation Voltage                  VCE(sat)        IC=100mA, IB=1mA                              -                    -           1              V
    Base-Emitter Saturation Voltage                       VBE(sat)        IC=100mA, IB=10mA                             -                   1.5          2              V
    Current Gain Bandwidth Product                          fT            IC=100mA, f=100MHz, VCE=2V                    -                   220          -            MHz
    Collector Output Capacitance                            Cob           VCB=10V, f=1MHz                               -                    5           -              pF




1999. 11. 30                      Revision No : 3                                                                                                                              1/2
                                 MMBTA517




1999. 11. 30   Revision No : 3              2/2
