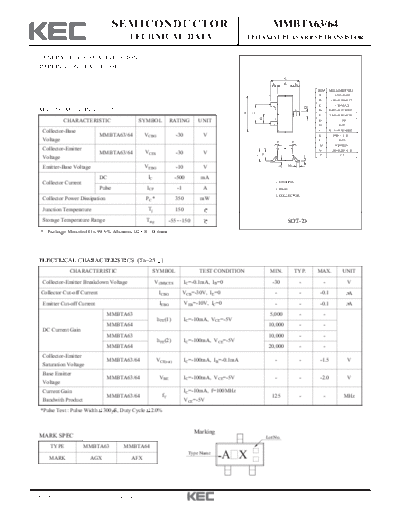

Image preview - the first page of the document
>> Download mmbta63_mmbta64 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR MMBTA63/64
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
DARLINGTON TRANSISTOR.
E
L B L
DIM MILLIMETERS
A _
2.93 + 0.20
B 1.30+0.20/-0.15
C 1.30 MAX
D
2
MAXIMUM RATING (Ta=25 ) 3 D 0.45+0.15/-0.05
A
G
E 2.40+0.30/-0.20
H
1
CHARACTERISTIC SYMBOL RATING UNIT G 1.90
H 0.95
Collector-Base J 0.13+0.10/-0.05
MMBTA63/64 VCBO -30 V K 0.00 ~ 0.10
Voltage P P
L 0.55
M 0.20 MIN
Collector-Emitter N 1.00+0.20/-0.10
MMBTA63/64 VCES -30 V
N
C
P 7
Voltage
J
Emitter-Base Voltage VEBO -10 V M
K
DC IC -500 mA
Collector Current 1. EMITTER
Pulse ICP -1 A 2. BASE
3. COLLECTOR
Collector Power Dissipation PC * 350 mW
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150 SOT-23
* : Package Mounted On 99.5% Alumina 10 8 0.6mm.
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector-Emitter Breakdown Voltage V(BR)CES IC=-0.1mA, IB=0 -30 - - V
Collector Cut-off Current ICBO VCB=-30V, IE=0 - - -0.1 A
Emitter Cut-off Current IEBO VEB=-10V, IC=0 - - -0.1 A
MMBTA63 5,000 - -
hFE(1) IC=-10mA, VCE=-5V
MMBTA64 10,000 - -
DC Current Gain
MMBTA63 10,000 - -
hFE(2) IC=-100mA, VCE=-5V
MMBTA64 20,000 - -
Collector-Emitter
MMBTA63/64 VCE(sat) IC=-100mA, IB=-0.1mA - - -1.5 V
Saturation Voltage
Base Emitter
MMBTA63/64 VBE IC=-100mA, VCE=-5V - - -2.0 V
Voltage
Current Gain IC=-10mA, f=100MHz
MMBTA63/64 fT 125 - - MHz
Bandwith Product VCE=-5V
*Pulse Test : Pulse Width 300 S, Duty Cycle 2.0%
Marking
MARK SPEC Lot No.
TYPE MMBTA63 MMBTA64
MARK AGX AFX
Type Name
A X
2008. 8. 29 Revision No : 5 1/2
MMBTA63/64
h FE - I C f T - IC
CURRENT GAIN BANDWIDTH PRODUCT
1M 1k
VCE =-5V VCE =-5V
300k 300
DC CURRENT GAIN h FE
100k 100
f T (MHz)
30k 30
10k 10
3k 3
1k 1
-1 -3 -10 -30 -100 -300 -1k -1 -3 -10 -30 -100 -300 -1k
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
VBE(sat) , VCE(sat) - I C I C - V BE
-10 -200
COLLECTOR CURRENT I C (mA)
I C =1000I B VCE =-5V
-3 -100
SATURATION VOLTAGE
VBE(sat)
VBE(sat) , VCE(sat) (V)
-1 -30
V CE(sat)
-0.3
-10
-0.1
-3
-0.03
-0.01 -1
-1 -3 -10 -30 -100 -300 -1k 0 -0.4 -0.8 -1.2 -1.6 -2.0 -2.4
COLLECTOR CURRENT I C (mA) BASE-EMITTER VOLTAGE VBE (V)
2008. 8. 29 Revision No : 5 2/2
