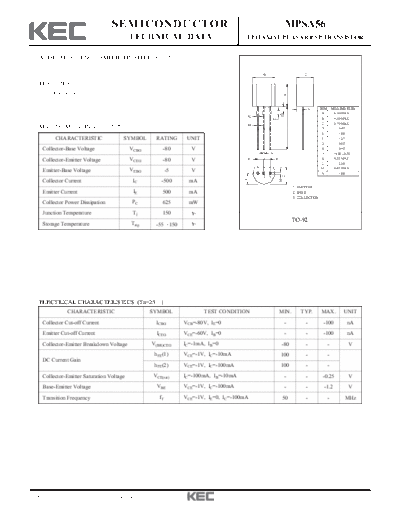

Image preview - the first page of the document
mpsa56


>> Download mpsa56 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                       MPSA56
                                            TECHNICAL DATA                              EPITAXIAL PLANAR PNP TRANSISTOR


  AUDIO FREQUENCY AMPLIFIER APPLICATIONS.

                                                                                                   B                             C

  FEATURES
    Complementary to MPSA06.




                                                                                                                       A
                                                                                                                                      N    DIM       MILLIMETERS
                                                                                                                   E                        A         4.70 MAX
                                                                                           K
                                                                                                           G                                B         4.80 MAX
                                                                                           D                                                C         3.70 MAX
  MAXIMUM RATING (Ta=25                 )




                                                                                                                       J
                                                                                                                                            D             0.45
                                                                                                                                            E             1.00
         CHARACTERISTIC                 SYMBOL       RATING       UNIT                                                                      F             1.27
                                                                                                                                            G             0.85
    Collector-Base Voltage                  VCBO        -80        V                                                                        H             0.45
                                                                                                       H                                    J               _
                                                                                                                                                      14.00 + 0.50
                                            VCEO                                                                                            K         0.55 MAX
    Collector-Emitter Voltage                           -80        V                       F                   F
                                                                                                                                            L             2.30
                                                                                                                                            M         0.45 MAX
    Emitter-Base Voltage                    VEBO            -5     V                                                                        N            1.00




                                                                                                                       C
                                                                                               1   2   3




                                                                                       L
    Collector Current                        IC         -500       mA




                                                                                                                   M
                                                                                                                            1. EMITTER
    Emitter Current                          IE         500        mA                                                       2. BASE
                                                                                                                            3. COLLECTOR
    Collector Power Dissipation              PC         625       mW
    Junction Temperature                     Tj         150
                                                                                                                            TO-92
    Storage Temperature                     Tstg     -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                     )
               CHARACTERISTIC                       SYMBOL               TEST CONDITION                            MIN.        TYP.        MAX.             UNIT
    Collector Cut-off Current                        ICBO        VCB=-80V, IE=0                                        -          -         -100             nA
    Emitter Cut-off Current                           ICEO       VCE=-60V, IB=0                                        -          -         -100             nA
    Collector-Emitter Breakdown Voltage             V(BR)CEO     IC=-1mA, IB=0                                     -80            -              -            V
                                                     hFE(1)      VCE=-1V, IC=-10mA                                 100            -              -
    DC Current Gain
                                                     hFE(2)      VCE=-1V, IC=-100mA                                100            -              -
    Collector-Emitter Saturation Voltage            VCE(sat)     IC=-100mA, IB=-10mA                                   -          -         -0.25             V
    Base-Emitter Voltage                              VBE        VCE=-1V, IC=-100mA                                    -          -          -1.2             V
    Transition Frequency                               fT        VCE=-1V, IE=0, IC=-100mA                              50         -              -          MHz




1999. 11. 30                      Revision No : 3                                                                                                                    1/1
