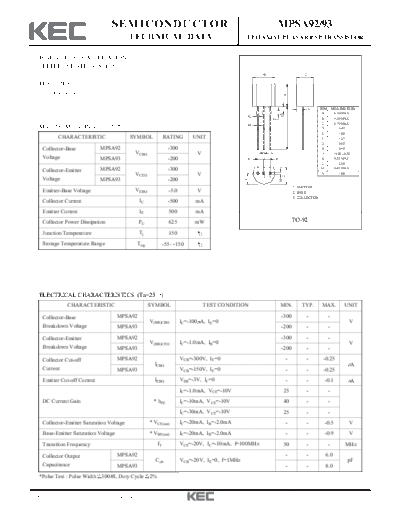

Image preview - the first page of the document
>> Download mpsa92_mpsa93 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR MPSA92/93
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
HIGH VOLTAGE APPLICATION.
TELEPHONE APPLICATION.
B C
FEATURES
Complementary to MPSA42/43.
A
N DIM MILLIMETERS
E A 4.70 MAX
K
G B 4.80 MAX
D C 3.70 MAX
MAXIMUM RATING (Ta=25 )
J
D 0.45
E 1.00
CHARACTERISTIC SYMBOL RATING UNIT F 1.27
G 0.85
Collector-Base MPSA92 -300 H 0.45
VCBO V H J _
14.00 + 0.50
Voltage MPSA93 -200 F F K 0.55 MAX
L 2.30
MPSA92 -300 M 0.45 MAX
Collector-Emitter
VCEO V N 1.00
C
1 2 3
Voltage
L
MPSA93 -200
M
1. EMITTER
Emitter-Base Voltage VEBO -5.0 V 2. BASE
3. COLLECTOR
Collector Current IC -500 mA
Emitter Current IE 500 mA
Collector Power Dissipation PC 625 mW TO-92
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector-Base MPSA92 -300 - -
V(BR)CBO IC=-100 A, IE=0 V
Breakdown Voltage MPSA93 -200 - -
Collector-Emitter MPSA92 -300 - -
V(BR)CEO IC=-1.0mA, IB=0 V
Breakdown Voltage MPSA93 -200 - -
Collector Cut-off MPSA92 VCB=-300V, IE=0 - - -0.25
ICBO A
Current MPSA93 VCB=-150V, IE=0 - - -0.25
Emitter Cut-off Current IEBO VEB=-3V, IC=0 - - -0.1 A
IC=-1.0mA, VCE=-10V 25 - -
DC Current Gain * hFE IC=-10mA, VCE=-10V 40 - -
IC=-30mA, VCE=-10V 25 - -
Collector-Emitter Saturation Voltage * VCE(sat) IC=-20mA, IB=-2.0mA - - -0.5 V
Base-Emitter Saturation Voltage * VBE(sat) IC=-20mA, IB=-2.0mA - - -0.9 V
Transition Frequency fT VCE=-20V, IC=-10mA, f=100MHz 50 - - MHz
Collector Output MPSA92 - - 6.0
Cob VCB=-20V, IE=0, f=1MHz pF
Capacitance MPSA93 - - 8.0
*Pulse Test : Pulse Width 300 S, Duty Cycle 2%
1999. 11. 30 Revision No : 3 1/2
MPSA92/93
hFE - IC fT - IC
TRANSITION FREQUENCY fT (MHz)
300 100
VCE =10VDC
DC CURRENT GAIN hFE
T j =125 C
50
100 T j =25 C
T j =-55 C 30
50
30
T j =25 C
VCE =20VDC
10 0
-1 -3 -5 -10 -30 -50 -100 -1 -3 -5 -10 -30 -50 -100
COLLECTOR CURRENT IC (mA) COLLECTOR CURRENT IC (mA)
Cob - VR IC - VCE
COLLECTOR OUTPUT CAPACITANCE
100
BONDING WIRE LIMITATION
SECOND BREAK DOWN
50 LIMITATION T j =150 C
C ib
COLLECTOR CURRENT IC (mA)
30 -500
