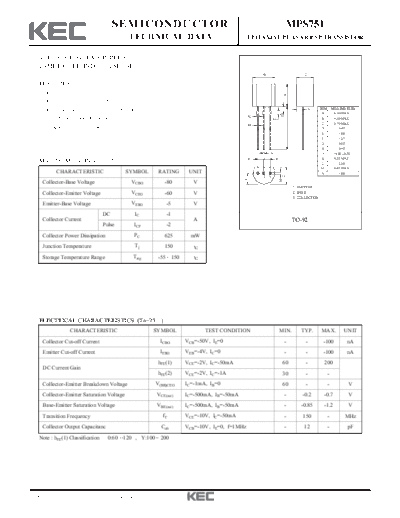

Image preview - the first page of the document
>> Download mps751 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR MPS751
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
VOLTAGE REGULATOR, RELAY,
LAMP DRIVER, INDUSTRIAL USE
B C
FEATURES
High Voltage : VCEO=-60V(Min.).
A
High Current : IC(Max.)=-1A.
High Transition Frequency : fT=150MHz(Typ.). N DIM MILLIMETERS
E A 4.70 MAX
K
Wide Area of Safe Operation. G B 4.80 MAX
D C 3.70 MAX
Complementary to MPS651.
J
D 0.45
E 1.00
F 1.27
G 0.85
H 0.45
H J _
14.00 + 0.50
F F K 0.55 MAX
MAXIMUM RATING (Ta=25 ) L 2.30
M 0.45 MAX
CHARACTERISTIC SYMBOL RATING UNIT N 1.00
C
1 2 3
L
M
Collector-Base Voltage VCBO -80 V
1. EMITTER
Collector-Emitter Voltage VCEO -60 V 2. BASE
3. COLLECTOR
Emitter-Base Voltage VEBO -5 V
DC IC -1
Collector Current A TO-92
Pulse ICP -2
Collector Power Dissipation PC 625 mW
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -100 nA
Emitter Cut-off Current IEBO VEB=-4V, IC=0 - - -100 nA
hFE(1) VCE=-2V, IC=-50mA 60 - 200
DC Current Gain
hFE(2) VCE=-2V, IC=-1A 30 - -
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA, IB=0 60 - - V
Collector-Emitter Saturation Voltage VCE(sat) IC=-500mA, IB=-50mA - -0.2 -0.7 V
Base-Emitter Saturation Voltage VBE(sat) IC=-500mA, IB=-50mA - -0.85 -1.2 V
Transition Frequency fT VCE=-10V, IC=-50mA - 150 - MHz
Collector Output Capacitanc Cob VCB=-10V, IE=0, f=1MHz - 12 - pF
Note : hFE(1) Classification 0:60 120 , Y:100 200
1999. 11. 30 Revision No : 2 1/3
MPS751
1999. 11. 30 Revision No : 2 2/3
MPS751
1999. 11. 30 Revision No : 2 3/3
