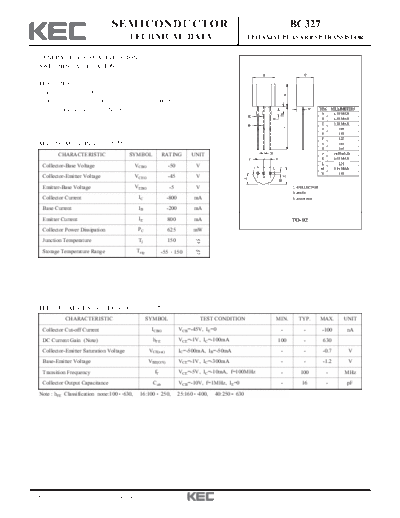

Image preview - the first page of the document



>> Download bc327 documenatation <<

Text preview - extract from the document

                                  SEMICONDUCTOR                                                                 BC327
                                           TECHNICAL DATA                                         EPITAXIAL PLANAR PNP TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  SWITCHING APPLICATION.

  FEATURES
    High Current : IC=-800mA.
    DC Current Gain : hFE=100 630 (VCE=-1V, Ic=-100mA).
    For Complementary with NPN type BC337.




  MAXIMUM RATING (Ta=25                )
          CHARACTERISTIC                   SYMBOL           RATING          UNIT
   Collector-Base Voltage                   VCBO                -50          V
   Collector-Emitter Voltage                VCEO                -45          V
   Emitter-Base Voltage                     VEBO                 -5          V
   Collector Current                          IC                -800        mA
   Base Current                               IB                -200        mA
   Emitter Current                            IE                800         mA
   Collector Power Dissipation               PC                 625         mW
   Junction Temperature                       Tj                150
   Storage Temperature Range                 Tstg           -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                         )
              CHARACTERISTIC                        SYMBOL                     TEST CONDITION            MIN.    TYP.   MAX.   UNIT
   Collector Cut-off Current                         ICBO              VCB=-45V, IE=0                      -      -     -100   nA
   DC Current Gain (Note)                             hFE              VCE=-1V, IC=-100mA                 100     -     630
   Collector-Emitter Saturation Voltage             VCE(sat)           IC=-500mA, IB=-50mA                 -      -     -0.7    V
   Base-Emitter Voltage                             VBE(ON)            VCE=-1V, IC=-300mA                  -      -     -1.2    V
   Transition Frequency                               fT               VCE=-5V, IC=-10mA, f=100MHz         -     100     -     MHz
   Collector Output Capacitance                       Cob              VCB=-10V, f=1MHz, IE=0              -      16     -      pF
  Note : hFE Classification none:100 630,     16:100 250,              25:160 400,   40:250 630




2008. 4. 24                      Revision No : 3                                                                                      1/2
                                BC327




2008. 4. 24   Revision No : 3           2/2
