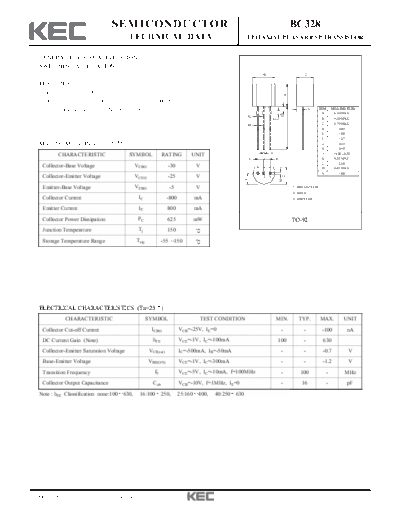

bc328


>> Download bc328 documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                                       BC328
                                           TECHNICAL DATA                                         EPITAXIAL PLANAR PNP TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  SWITCHING APPLICATION.
                                                                                                              B                             C

  FEATURES
    High Current : IC=-800mA.




                                                                                                                                  A
    DC Current Gain : hFE=100 630 (VCE=-1V, Ic=-100mA).
    For Complementary with NPN type BC338.                                                                                                      N    DIM   MILLIMETERS
                                                                                                                              E                       A     4.70 MAX
                                                                                                      K
                                                                                                                      G                               B     4.80 MAX
                                                                                                      D                                               C     3.70 MAX




                                                                                                                                  J
                                                                                                                                                      D         0.45
                                                                                                                                                      E         1.00
                                                                                                                                                      F         1.27
  MAXIMUM RATING (Ta=25                )                                                                                                              G         0.85
                                                                                                                                                      H         0.45
                                                                                                                  H                                   J           _
                                                                                                                                                            14.00 + 0.50
          CHARACTERISTIC                   SYMBOL           RATING          UNIT
                                                                                                      F                   F                           K     0.55 MAX
                                                                                                                                                      L         2.30
   Collector-Base Voltage                   VCBO                -30          V                                                                        M     0.45 MAX
                                                                                                                                                      N        1.00
   Collector-Emitter Voltage                VCEO                -25          V




                                                                                                                                  C
                                                                                                          1   2   3




                                                                                                  L




                                                                                                                              M
   Emitter-Base Voltage                     VEBO                 -5          V                                                        1. COLLECTOR
                                                                                                                                      2. BASE
   Collector Current                          IC                -800        mA                                                        3. EMITTER

   Emitter Current                            IE                800         mA
   Collector Power Dissipation               PC                 625         mW                                                        TO-92
   Junction Temperature                       Tj                150
   Storage Temperature Range                 Tstg           -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                         )
              CHARACTERISTIC                        SYMBOL                     TEST CONDITION                             MIN.           TYP.        MAX.        UNIT
   Collector Cut-off Current                         ICBO              VCB=-25V, IE=0                                         -            -          -100         nA
   DC Current Gain (Note)                             hFE              VCE=-1V, IC=-100mA                                 100              -          630
   Collector-Emitter Saturation Voltage             VCE(sat)           IC=-500mA, IB=-50mA                                    -            -          -0.7          V
   Base-Emitter Voltage                             VBE(ON)            VCE=-1V, IC=-300mA                                     -            -          -1.2          V
   Transition Frequency                               fT               VCE=-5V, IC=-10mA, f=100MHz                            -           100          -          MHz
   Collector Output Capacitance                       Cob              VCB=-10V, f=1MHz, IE=0                                 -           16           -           pF
  Note : hFE Classification none:100 630,     16:100 250,              25:160 400,   40:250 630




2000. 2. 28                      Revision No : 2                                                                                                                           1/2
                                BC328




2000. 2. 28   Revision No : 2           2/2
