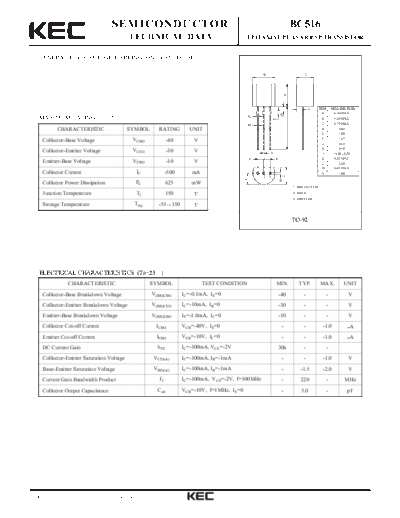

Image preview - the first page of the document
bc516


>> Download bc516 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                                  BC516
                                            TECHNICAL DATA                                   EPITAXIAL PLANAR PNP TRANSISTOR


  GENERAL PURPOSE HIGH DARLINGTON TRANSISTOR.

                                                                                                         B                              C




                                                                                                                              A
                                                                                                                                            N    DIM       MILLIMETERS
                                                                                                                         E                        A         4.70 MAX
                                                                                                 K
  MAXIMUM RATING (Ta=25                 )                                                                        G                                B         4.80 MAX
                                                                                                 D                                                C         3.70 MAX




                                                                                                                              J
          CHARACTERISTIC                    SYMBOL      RATING        UNIT                                                                        D             0.45
                                                                                                                                                  E             1.00
                                             VCBO                                                                                                 F             1.27
    Collector-Base Voltage                                   -40        V
                                                                                                                                                  G             0.85
                                                                                                                                                  H             0.45
    Collector-Emitter Voltage                VCEO            -30        V                                    H                                    J               _
                                                                                                                                                            14.00 + 0.50
                                                                                                 F                   F                            K         0.55 MAX
    Emitter-Base Voltage                     VEBO            -10        V                                                                         L             2.30
                                                                                                                                                  M         0.45 MAX
    Collector Current                         IC             -500      mA                                                                         N            1.00




                                                                                                                             C
                                                                                                     1   2   3




                                                                                             L




                                                                                                                         M
    Collector Power Dissipation               PC             625       mW
                                                                                                                                  1. COLLECTOR
    Junction Temperature                      Tj             150                                                                  2. BASE
                                                                                                                                  3. EMITTER
    Storage Temperature                      Tstg      -55 150

                                                                                                                                  TO-92




  ELECTRICAL CHARACTERISTICS (Ta=25                     )
               CHARACTERISTIC                       SYMBOL                  TEST CONDITION                           MIN.            TYP.        MAX.            UNIT
    Collector-Base Breakdown Voltage                 V(BR)CBO       IC=-0.1mA, IE=0                                      -40           -               -            V
    Collector-Emitter Breakdown Voltage              V(BR)CEO       IC=-10mA, IB=0                                       -30           -               -            V
    Emitter-Base Breakdown Voltage                   V(BR)EBO       IE=-1.0mA, IC=0                                      -10           -               -            V
    Collector Cut-off Current                          ICBO         VCB=-40V, IE=0                                        -            -          -1.0              A
    Emitter Cut-off Current                            IEBO         VEB=-10V, IC=0                                        -            -          -1.0              A
    DC Current Gain                                    hFE          IC=-100mA, VCE=-2V                                   30k           -               -
    Collector-Emitter Saturation Voltage             VCE(sat)       IC=-100mA, IB=-1mA                                    -            -          -1.0              V
    Base-Emitter Saturation Voltage                  VBE(sat)       IC=-100mA, IB=-1mA                                    -           -1.5        -2.0              V
    Current Gain Bandwidth Product                      fT          IC=-100mA, VCE=-2V, f=100MHz                          -           220              -          MHz
    Collector Output Capacitance                       Cob          VCB=-10V, f=1MHz, IE=0                                -           5.0              -           pF




2002. 11. 13                      Revision No : 0                                                                                                                          1/1
