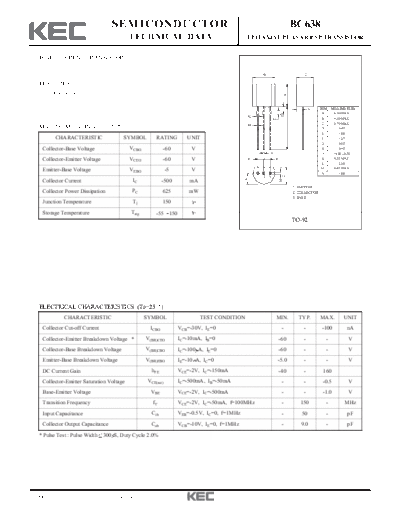

Image preview - the first page of the document
bc638


>> Download bc638 documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                                     BC638
                                           TECHNICAL DATA                                      EPITAXIAL PLANAR PNP TRANSISTOR


  HIGH CURRENT TRANSISTORS.

                                                                                                           B                             C

  FEATURES
    Complementary to BC637.




                                                                                                                                A
                                                                                                                                             N     DIM   MILLIMETERS
                                                                                                                           E                        A     4.70 MAX
                                                                                                   K
                                                                                                                   G                                B     4.80 MAX
                                                                                                   D                                                C     3.70 MAX
  MAXIMUM RATING (Ta=25                )




                                                                                                                                J
                                                                                                                                                    D         0.45
                                                                                                                                                    E         1.00
         CHARACTERISTIC                SYMBOL          RATING           UNIT                                                                        F         1.27
                                                                                                                                                    G         0.85
   Collector-Base Voltage                  VCBO             -60           V                                                                         H         0.45
                                                                                                               H                                    J           _
                                                                                                                                                          14.00 + 0.50
   Collector-Emitter Voltage               VCEO             -60           V                        F                   F                            K     0.55 MAX
                                                                                                                                                    L         2.30
                                                                                                                                                    M     0.45 MAX
   Emitter-Base Voltage                    VEBO                 -5        V
                                                                                                                                                    N        1.00




                                                                                                                               C
                                                                                                       1   2   3




                                                                                               L
   Collector Current                        IC              -500         mA




                                                                                                                           M
                                                                                                                                    1. EMITTER
   Collector Power Dissipation              PC              625          mW                                                         2. COLLECTOR
                                                                                                                                    3. BASE
   Junction Temperature                     Tj              150
   Storage Temperature                     Tstg        -55 150
                                                                                                                                    TO-92




  ELECTRICAL CHARACTERISTICS (Ta=25                         )
              CHARACTERISTIC                       SYMBOL                     TEST CONDITION                           MIN.           TYP.         MAX.        UNIT
   Collector Cut-off Current                         ICBO            VCB=-30V, IE=0                                         -            -          -100         nA
   Collector-Emitter Breakdown Voltage *           V(BR)CEO          IC=-10mA, IB=0                                        -60           -           -            V
   Collector-Base Breakdown Voltage                V(BR)CBO          IC=-100 A, IE=0                                       -60           -           -            V
   Emitter-Base Breakdown Voltage                  V(BR)EBO          IE=-10 A, IC=0                                    -5.0              -           -            V
   DC Current Gain                                   hFE             VCE=-2V, IC=-150mA                                    -40           -          160
   Collector-Emitter Saturation Voltage            VCE(sat)          IC=-500mA, IB=-50mA                                    -            -          -0.5          V
   Base-Emitter Voltage                              VBE             VCE=-2V, IC=-500mA                                     -            -          -1.0          V
   Transition Frequency                               fT             VCE=-2V, IC=-50mA, f=100MHz                            -          150           -          MHz
   Input Capacitance                                 Cib             VEB=-0.5V, IC=0, f=1MHz                                -           50           -           pF
   Collector Output Capacitance                      Cob             VCB=-10V, IE=0, f=1MHz                                 -           9.0          -           pF
  * Pulse Test : Pulse Width 300 S, Duty Cycle 2.0%




2000. 10. 2                      Revision No : 0                                                                                                                         1/1
