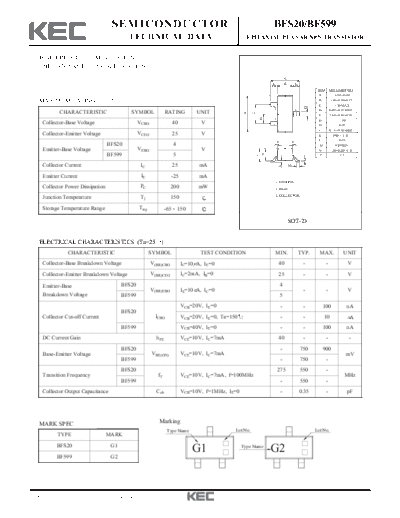

Image preview - the first page of the document
bf599_bfs20


>> Download bf599_bfs20 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                  BFS20/BF599
                                              TECHNICAL DATA                                      EPITAXIAL PLANAR NPN TRANSISTOR


  HIGH FREQUENCY APPLICATION.
  VHF BAND AMPLIFIER APPLICATION.
                                                                                                                              E
                                                                                                                  L           B           L
                                                                                                                                                      DIM       MILLIMETERS
                                                                                                                                                       A                _
                                                                                                                                                                   2.93 + 0.20
  MAXIMUM RATING (Ta=25                   )                                                                                                            B        1.30+0.20/-0.15
                                                                                                                                                       C           1.30 MAX




                                                                                                                                               D
                                                                                                                  2                       3                     0.45+0.15/-0.05
                                                                                                                                                       D
           CHARACTERISTIC                     SYMBOL           RATING         UNIT




                                                                                                 A

                                                                                                      G
                                                                                                                                                       E        2.40+0.30/-0.20




                                                                                                              H
                                                                                                                  1                                    G               1.90
    Collector-Base Voltage                      VCBO              40           V                                                                       H               0.95
                                                                                                                                                       J        0.13+0.10/-0.05
    Collector-Emitter Voltage                   VCEO              25           V                                                                       K          0.00 ~ 0.10
                                                                                                                                                       L               0.55
                                                                                                                      P               P
                                  BFS20                            4                                                                                   M           0.20 MIN
    Emitter-Base Voltage                        VEBO                           V                                                                       N        1.00+0.20/-0.10
                                  BF599                            5




                                                                                                              N
                                                                                                          C
                                                                                                                                                       P               7




                                                                                                                                               J
    Collector Current                            IC               25           mA                                                 M




                                                                                                                       K
    Emitter Current                              IE               -25          mA
                                                                                                                      1. EMITTER
    Collector Power Dissipation                  PC               200         mW                                      2. BASE

                                                 Tj                                                                   3. COLLECTOR
    Junction Temperature                                          150
    Storage Temperature Range                   Tstg           -65 150

                                                                                                                                  SOT-23


  ELECTRICAL CHARACTERISTICS (Ta=25                        )
               CHARACTERISTIC                          SYMBOL                  TEST CONDITION                         MIN.                    TYP.     MAX.             UNIT
    Collector-Base Breakdown Voltage                   V(BR)CBO         IC=10 A, IE=0                                  40                      -            -              V
    Collector-Emitter Breakdown Voltage                V(BR)CEO         IC=2mA, IB=0                                   25                      -            -              V

    Emitter-Base                        BFS20                                                                             4
                                                       V(BR)EBO         IE=10 A, IC=0                                                          -            -              V
    Breakdown Voltage                   BF599                                                                             5
                                                                        VCB=20V, IE=0                                     -                    -        100               nA
                                        BFS20
    Collector Cut-off Current                            ICBO           VCB=20V, IE=0, Ta=150                             -                    -         10                 A
                                        BF599                           VCB=40V, IE=0                                     -                    -        100               nA
    DC Current Gain                                      hFE            VCE=10V, IC=7mA                                40                      -            -               -
                                        BFS20                                                                             -                   750       900
    Base-Emitter Voltage                               VBE(ON)          VCE=10V, IC=7mA                                                                                   mV
                                        BF599                                                                             -                   750           -
                                        BFS20                                                                         275                     550           -
    Transition Frequency                                  fT            VCE=10V, IC=7mA, f=100MHz                                                                        MHz
                                        BF599                                                                             -                   550           -
    Collector Output Capacitance                         Cob            VCB=10V, f=1MHz, IE=0                             -                   0.35          -              pF




  MARK SPEC                                               Marking
                                                                Type Name                   Lot No.                                                  Lot No.
          TYPE                    MARK
          BFS20                    G1
                                                                            G1                  Type Name
                                                                                                                  G2
          BF599                    G2




1999. 11. 30                      Revision No : 2                                                                                                                                 1/1
