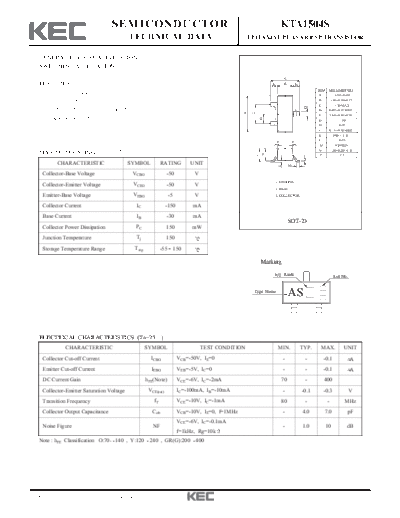

Image preview - the first page of the document
>> Download kta1504s documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA1504S
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
E
FEATURES L B L
DIM MILLIMETERS
Excellent hFE Linearity A _
2.93 + 0.20
: hFE(0.1mA)/hFE(2mA)=0.95(Typ.). B 1.30+0.20/-0.15
C 1.30 MAX
D
Low Noise : NF=1dB(Typ.), 10dB(Max.). 2 3 0.45+0.15/-0.05
D
A
G
E 2.40+0.30/-0.20
Complementary to KTC3875S.
H
1 G 1.90
H 0.95
J 0.13+0.10/-0.05
K 0.00 ~ 0.10
L 0.55
P P
M 0.20 MIN
N 1.00+0.20/-0.10
MAXIMUM RATING (Ta=25 )
N
C
P 7
J
CHARACTERISTIC SYMBOL RATING UNIT
K
M
Collector-Base Voltage VCBO -50 V
1. EMITTER
Collector-Emitter Voltage VCEO -50 V
2. BASE
Emitter-Base Voltage VEBO -5 V 3. COLLECTOR
Collector Current IC -150 mA
Base Current IB -30 mA
SOT-23
Collector Power Dissipation PC 150 mW
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Marking
h FE Rank Lot No.
Type Name
AS
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -0.1 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -0.1 A
DC Current Gain hFE(Note) VCE=-6V, IC=-2mA 70 - 400
Collector-Emitter Saturation Voltage VCE(sat) IC=-100mA, IB=-10mA - -0.1 -0.3 V
Transition Frequency fT VCE=-10V, IC=-1mA 80 - - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 4.0 7.0 pF
VCE=-6V, IC=-0.1mA
Noise Figure NF - 1.0 10 dB
f=1kHz, Rg=10k
Note : hFE Classification O:70 140 , Y:120 240 , GR(G):200 400
2007. 6. 13 Revision No : 3 1/3
KTA1504S
I C - V CE h FE - I C
-240 3k
COMMON EMITTER
COLLECTOR CURRENT I C (mA)
COMMON
-2.0 Ta=25 C EMITTER
DC CURRENT GAIN h FE
-200
-1.5
1k
-160
-1.0 500
-120 300 Ta=100 C
-0.5 Ta=25 C
-80 Ta=-25 C
100
I B =-0.2mA
-40
50
0
0 30
0 -1 -2 -3 -4 -5 -6 -7 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
VCE(sat) - I C fT - IC
COLLECTOR-EMITTER SATURATION
-1k 3k
TRANSITION FREQUENCY f T (MHz)
COMMON EMITTER COMMON EMITTER
-500 I C /I B =10 VCE =-10V
VOLTAGE VCE(sat) (mV)
Ta=25 C
-300 1k
500
-100 300
C
-50 00
=1
Ta
-30 Ta=25 C 100
Ta=-25 C
50
-10 30
-0.1 -0.3 -1 -3 -10 -30 -100 -300 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
I B - V BE Pc - Ta
-1k 200
COLLECTOR POWER DISSIPATION
COMMON EMITTER
