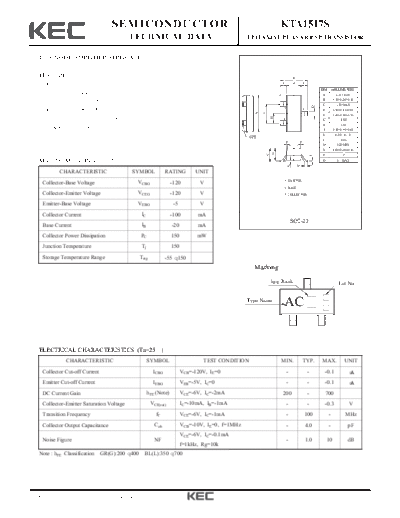

Image preview - the first page of the document
kta1517s


>> Download kta1517s documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                    KTA1517S
                                           TECHNICAL DATA                                       EPITAXIAL PLANAR PNP TRANSISTOR


  LOW NOISE AMPLIFIER APPLICATION.

  FEATURES                                                                                                                  E
    High Voltage : VCEO=-120V.                                                                                     L        B           L
                                                                                                                                                     DIM       MILLIMETERS
    Excellent hFE Linearity                                                                                                                           A                _
                                                                                                                                                                  2.93 + 0.20
      : hFE(0.1mA)/hFE(2mA)=0.95(Typ.).                                                                                                               B        1.30+0.20/-0.15
                                                                                                                                                      C           1.30 MAX




                                                                                                                                                 D
                                                                                                                    2
    High hFE: hFE=200 700.                                                                                                              3             D        0.40+0.15/-0.05




                                                                                                   A

                                                                                                       G
                                                                                                                                                      E        2.40+0.30/-0.20
    Low Noise : NF=1dB(Typ.), 10dB(Max.).




                                                                                                               H
                                                                                                                    1                                 G               1.90
                                                                                                                                                      H               0.95
    Complementary to KTC3911S.                                                                                                                        J        0.13+0.10/-0.05
                                                                                                                                                      K          0.00 ~ 0.10
                                                                                                  Q
                                                                                                                                                      L               0.55
                                                                                                                        P           P
                                                                                                                                                      M           0.20 MIN
                                                                                                                                                      N        1.00+0.20/-0.10




                                                                                                               N
                                                                                                           C
                                                                                                                                                      P                7




                                                                                                                                                 J
  MAXIMUM RATING (Ta=25                )                                                                                                              Q            0.1 MAX




                                                                                                                        K
                                                                                                                                M
              CHARACTERISTIC               SYMBOL            RATING         UNIT
                                                                                                                    1. EMITTER
   Collector-Base Voltage                    VCBO                -120         V
                                                                                                                    2. BASE
   Collector-Emitter Voltage                 VCEO                -120         V                                     3. COLLECTOR

   Emitter-Base Voltage                      VEBO                 -5          V
   Collector Current                           IC                -100        mA
                                                                                                                            SOT-23
   Base Current                                IB                -20         mA
   Collector Power Dissipation                 PC                150         mW
   Junction Temperature                        Tj                150
   Storage Temperature Range                  Tstg           -55 150
                                                                                                  Marking
                                                                                                               h FE Rank                                           Lot No.


                                                                                                Type Name
                                                                                                                    AC


  ELECTRICAL CHARACTERISTICS (Ta=25 )
               CHARACTERISTIC                       SYMBOL                     TEST CONDITION                      MIN.                 TYP.         MAX.              UNIT
   Collector Cut-off Current                          ICBO             VCB=-120V, IE=0                                  -                    -         -0.1                A
   Emitter Cut-off Current                            IEBO             VEB=-5V, IC=0                                    -                    -         -0.1                A
   DC Current Gain                                  hFE (Note)         VCE=-6V, IC=-2mA                             200                      -         700
   Collector-Emitter Saturation Voltage              VCE(sat)          IC=-10mA, IB=-1mA                                -                    -         -0.3               V
   Transition Frequency                                 fT             VCE=-6V, IC=-1mA                                 -               100                -           MHz
   Collector Output Capacitance                        Cob             VCB=-10V, IE=0, f=1MHz                           -                   4.0            -             pF
                                                                       VCE=-6V, IC=-0.1mA
   Noise Figure                                        NF                                                               -                   1.0        10                dB
                                                                       f=1kHz, Rg=10k
  Note : hFE Classification    GR(G):200 400 BL(L):350            700




2001. 2. 24                      Revision No : 3                                                                                                                                 1/3
                                KTA1517S




2001. 2. 24   Revision No : 3              2/3
                                KTA1517S




2001. 2. 24   Revision No : 3              3/3
