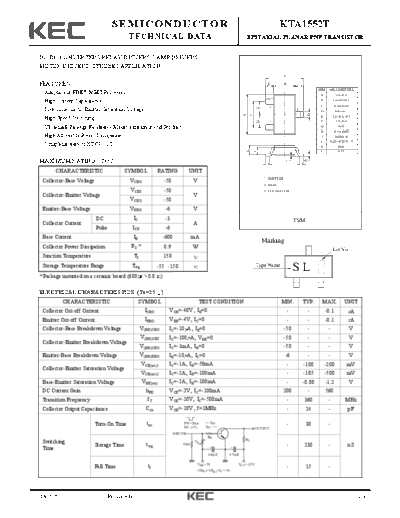

Image preview - the first page of the document
>> Download kta1552t documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA1552T
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
DC-DC CONVERTERS RELAY DRIVERS, LAMP DRIVERS,
MOTOR DRIVERS, STROBES APPLICATION.
E
FEATURES K B
DIM MILLIMETERS
Adoption of FBET, MBIT Processes. A _
2.9 + 0.2
High Current Capacitance. B 1.6+0.2/-0.1
C _
0.70 + 0.05
2
Low Collector-to-Emitter Saturation Voltage.
G
3 _
D 0.4 + 0.1
D
A
E 2.8+0.2/-0.3
F
High-Speed Switching. F _
1.9 + 0.2
1
G
Ultrasmall Package Facilitates Miniaturization in end Products. G 0.95
H _
0.16 + 0.05
High Allowable Power Dissipation. I 0.00-0.10
J 0.25+0.25/-0.15
Complementary to KTC3552T. K 0.60
C
L 0.55
L
MAXIMUM RATING (Ta=25 ) H
I
J J
CHARACTERISTIC SYMBOL RATING UNIT
1. EMITTER
Collector-Base Voltage VCBO -50 V
2. BASE
VCES -50 3. COLLECTOR
Collector-Emitter Voltage V
VCEO -50
Emitter-Base Voltage VEBO -6 V
DC IC -3 TSM
Collector Current A
Pulse ICP -6
Base Current IB -600 mA
Marking
Collector Power Dissipation PC * 0.9 W Lot No.
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150 Type Name
SL
* Package mounted on a ceramic board (600 0.8 )
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-40V, IE=0 - - -0.1 A
Emitter Cut-off Current IEBO VEB=-4V, IC=0 - - -0.1 A
Collector-Base Breakdown Voltage V(BR)CBO IC=-10 A, IE=0 -50 - - V
V(BR)CES IC=-100 A, VBE=0 -50 - - V
Collector-Emitter Breakdown Voltage
V(BR)CEO IC=-1mA, IB=0 -50 - - V
Emitter-Base Breakdown Voltage V(BR)EBO IE=-10 A, IC=0 -6 - - V
VCE(sat)1 IC=-1A, IB=-50mA - -100 -200 mV
Collector-Emitter Saturation Voltage
VCE(sat)2 IC=-2A, IB=-100mA - -185 -500 mV
Base-Emitter Saturation Voltage VBE(sat) IC=-2A, IB=-100mA - -0.88 -1.2 V
DC Current Gain hFE VCE=-2V, IC=-100mA 200 - 560
Transition Frequency fT VCE=-10V, IC=-500mA - 360 - MHz
Collector Output Capacitance Cob VCB=-10V, f=1MHz - 24 - pF
Turn-On Time ton PW=20◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
