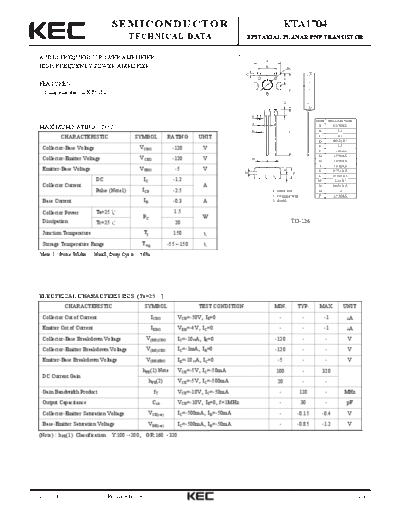

Image preview - the first page of the document
>> Download kta1704 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA1704
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
AUDIO FREQUENCY POWER AMPLIFIER A
HIGH FREQUENCY POWER AMPLIFIER B D
C
E
FEATURES
F
Complementary to KTC2803.
G
H
DIM MILLIMETERS
J
MAXIMUM RATING (Ta=25 ) A 8.3 MAX
K L B 5.8
CHARACTERISTIC SYMBOL RATING UNIT C 0.7
D _
3.2 + 0.1
E 3.5
Collector-Base Voltage VCBO -120 V _
F 11.0 + 0.3
G 2.9 MAX
Collector-Emitter Voltage VCEO -120 V M
H 1.0 MAX
J 1.9 MAX
Emitter-Base Voltage VEBO -5 V O K _
0.75 + 0.15
N P
1 2 3 L _
15.50 + 0.5
DC IC -1.2 M _
2.3 + 0.1
Collector Current A N _
0.65 + 0.15
Pulse (Note1) ICP -2.5 1. EMITTER O 1.6
2. COLLECTOR P 3.4 MAX
Base Current IB -0.3 A 3. BASE
Collector Power Ta=25 1.5
PC W
Dissipation Tc=25 20 TO-126
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Note 1 : Pulse Width 10mS, Duty Cycle 50%
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut of Current ICBO VCB=-50V, IE=0 - - -1 A
Emitter Cut of Current IEBO VEB=-4V, IC=0 - - -1 A
Collector-Base Breakdown Voltage V(BR)CBO IC=-10 A, IE=0 -120 - - V
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA, IB=0 -120 - - V
Emitter-Base Breakdown Voltage V(BR)EBO IE=-10 A, IC=0 -5 - - V
hFE(1) Note VCE=-5V, IC=-50mA 100 - 320
DC Current Gain
hFE(2) VCE=-5V, IC=-500mA 20 - -
Gain Bandwidth Product fT VCE=-10V, IC=-50mA - 110 - MHz
Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 30 - pF
Collector-Emitter Saturation Voltage VCE(sat) IC=-500mA, IB=-50mA - -0.15 -0.4 V
Base-Emitter Saturation Voltage VBE(sat) IC=-500mA, IB=-50mA - -0.85 -1.2 V
(Note) : hFE(1) Classification Y:100 200, GR:160 320
2003. 7. 24 Revision No : 4 1/3
KTA1704
I C - VCE h FE - I C
-1.0 1k
COMMON EMITTER COMMON
A
COLLECTOR CURRENT I C (A)
A
m mA 500 EMITTER
m
mA
-8 -7 6mA Ta=25 C
-9
- -5mA 300 Ta=25 C
-0.8
-10
DC CURRENT GAIN h FE
-4mA
100 VCE =5V
-0.6
-3mA 50
30
-0.4
-2mA
10
-0.2 I B =-1mA 5
3
0 1
0 -10 -20 -30 -40 -50 -60 -0.001 -0.01 -0.1 -1 -10
COLLECTOR-EMITTER VOLTAGE V CE (V) COLLECTOR CURRENT I C (A)
VCE(sat) - I C , V BE(sat) - I C C ob - VCB
-10 600
COMMON I E =0
OUTPUT CAPACITANCE C ob(pF)
-5 EMITTER 500
Ta=25 C f=1MHz
-3 300
SATURATION VOLTAGE
IC /I B =5 Tc=25 C
VBE(sat) ,VCE(sat) (V)
-1 VBE(sat) 100
-0.5 50
-0.3 30
-0.1 10
-0.05 V CE(sat)
-0.03 3
-0.01 1
-0.001 -0.01 -0.1 -1 -10 -1 -3 -10 -30 -100 -300 -1k
COLLECTOR CURRENT I C (A) COLLECTOR-BASE VOLTAGE VCB (V)
f T - IC
1k
TRANSITION FREQUENCY f T (MHz)
COMMON EMITTER
500 VCE =5V
300 Tc=25 C
100
50
30
10
5
3
1
-0.01 -0.3 0.1 -0.3 -1
COLLECTOR CURRENT I C (A)
2003. 7. 24 Revision No : 4 2/3
KTA1704
Pc - Ta SAFE OPERATING AREA
CELLECTOR POWER DISSIPATION PC (W)
32 -10
28 -5
I C MAX.(PULSE) *
-3
COLLECTOR CURRENT I C (A)
24
I C MAX.
10
10
1m
