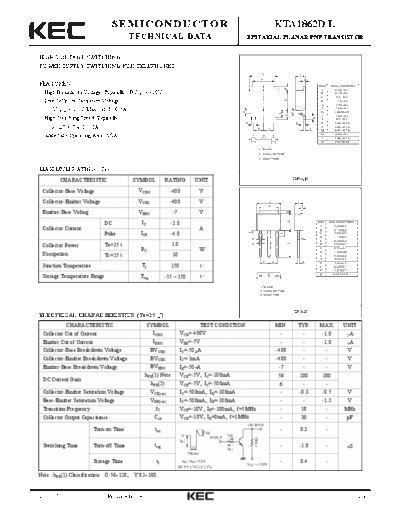

Image preview - the first page of the document
>> Download kta1862d_l documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA1862D/L
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
HIGH VOLTAGE SWITCHING.
POWER SUPPLY SWITCHING FOR TELEPHONES.
A I
C J
FEATURES DIM MILLIMETERS
D
A _
6.60 + 0.2
High Breakdown Voltage, Typically : BVCEO=-400V. B _
6.10 + 0.2
C _
5.0 + 0.2
Low Collector Saturation Voltage. D _
1.10 + 0.2
B
E _
2.70 + 0.2
_
: VCE(sat)=-0.5V(Max.) at (IC=0.5A) F
H
2.30 + 0.1
1.00 MAX
M
Q
K
_
E
I 2.30 + 0.2
High Switching Speed, Typically
O
J _
0.5 + 0.1
H P K _
2.00 + 0.20
: tf= 0.4 S at IC=-1A F F L
L _
0.50 + 0.10
_
M 0.91+ 0.10
_
Wide Safe Operating Area (SOA) 1 2 3
O
P
0.90 + 0.1
_
1.00 + 0.10
Q 0.95 MAX
1. BASE
2. COLLECTOR
3. EMITTER
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT DPAK
Collector-Base Voltage VCBO -400 V
Collector-Emitter Voltage VCEO -400 V A I
C J
Emitter-Base Voltag VEBO -7 V
D
DC IC -2.0 DIM MILLIMETERS
B
A _
6.60 + 0.2
Collector Current A B _
6.10 + 0.2
Pulse ICP -4.0 Q C _ 0.2
5.0 +
K
D _
1.10 + 0.2
H P
E _
9.50 + 0.6
Collector Power Ta=25 1.0 G _
E
F 2.30 + 0.1
_
PC W G
H
0.76 + 0.1
1.0 MAX
Dissipation Tc=25 10 I _
2.30 + 0.2
J _
0.5 + 0.1
F F L _
K 2.0 + 0.2
Junction Temperature Tj 150 L _
0.50 + 0.1
P _
1.0 + 0.1
1 2 3 Q 0.90 MAX
Storage Temperature Range Tstg -55 150
1. BASE
2. COLLECTOR
3. EMITTER
IPAK
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut of Current ICBO VCB=-400V - - -1.0 A
Emitter Cut of Current IEBO VEB=-5V - - -1.0 A
Collector-Base Breakdown Voltage BVCBO IC=-50 A -400 - - V
Collector-Emitter Breakdown Voltage BVCEO IC=-1mA -400 - - V
Emitter-Base Breakdown Voltage BVEBO IE=-50 A -7 - - V
hFE(1) Note VCE=-5V, IC=-100mA 56 100 180
DC Current Gain
hFE(2) VCE=-5V, IC=-500mA 6 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=-500mA, IB=-100mA - -0.3 -0.5 V
Base-Emitter Saturation Voltage VBE(sat) IC=-500mA, IB=-100mA - - -1.2 V
Transition Frequency fT VCE=-10V, IE=-100mA, f=5MHz - 18 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0mA, f=1MHz - 30 - pF
OUTPUT
Turn-on Time ton - 0.2 -
I B2
0 I B2
INPUT
150
IB1
Switching Time Turn-off Time tstg - -1.8 - S
I B1
