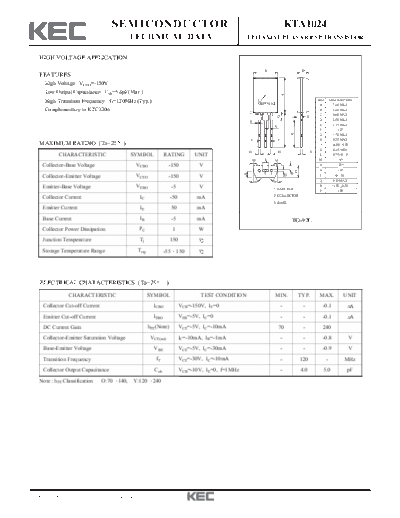

Image preview - the first page of the document



>> Download kta1024 documenatation <<

Text preview - extract from the document

                                  SEMICONDUCTOR                                                                                     KTA1024
                                           TECHNICAL DATA                                       EPITAXIAL PLANAR PNP TRANSISTOR


  HIGH VOLTAGE APPLICATION.

                                                                                                                B                                D
  FEATURES
    High Voltage : VCEO=-150V.
    Low Output Capacitance : Cob=5.0pF(Max.).




                                                                                                                                A
    High Transition Frequency : fT=120MHz (Typ.).                                                           P
                                                                                                            DEPTH:0.2
                                                                                                                                                             DIM       MILLIMETERS
                                                                                                                                                              A          7.20 MAX
    Complementary to KTC3206.                                                                       C
                                                                                                                                                              B          5.20 MAX
                                                                                                                                                              C          0.60 MAX




                                                                                                                            G
                                                                                                                                                     S
                                                                                                    Q                                                         D          2.50 MAX
                                                                                                                        K                                    E          1.15 MAX
                                                                                                                                                             F              1.27




                                                                                                                                J

                                                                                                                                        R
                                                                                                                                                             G          1.70 MAX
                                                                                                    F                       F                                H          0.55 MAX
  MAXIMUM RATING (Ta=25 )                                                                                                                                    J                 _
                                                                                                                                                                        14.00 + 0.50
                                                                                                                                                             K           0.35 MIN
                                                                                                    H                       H                            H
          CHARACTERISTIC                   SYMBOL             RATING         UNIT                                                                            L                _
                                                                                                                                                                         0.75 + 0.10
                                                                                                        M       E       M                                    M                4
   Collector-Base Voltage                    VCBO                -150         V                                                                              N               25
                                                                                                                                                             O              1.25




                                                                                                                                            D
                                                                                                            1   2   3                   L




                                                                                                O
   Collector-Emitter Voltage                 VCEO                -150         V                                                     H                        P             1.50
                                                                                                        N               N                                    Q           0.10 MAX
                                                                                                                                                                              _
   Emitter-Base Voltage                      VEBO                 -5          V                                         1. EMITTER
                                                                                                                                                             R          12.50 + 0.50
                                                                                                                                                             S              1.00
                                              IC                                                                        2. COLLECTOR
   Collector Current                                             -50         mA
                                                                                                                        3. BASE
   Emitter Current                            IE                 50          mA
   Base Current                               IB                  -5         mA                                                         TO-92L
   Collector Power Dissipation                PC                  1           W
   Junction Temperature                       Tj                 150
   Storage Temperature Range                  Tstg            -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25
