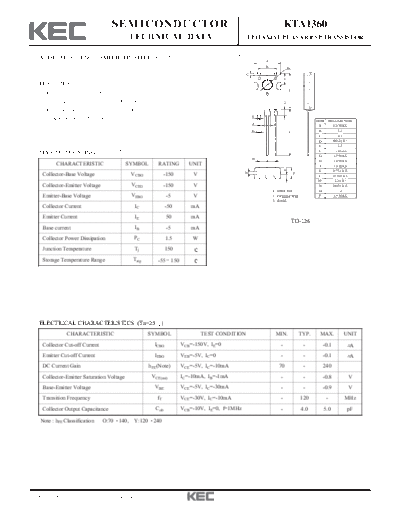

Image preview - the first page of the document
kta1360


>> Download kta1360 documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                       KTA1360
                                           TECHNICAL DATA                                    EPITAXIAL PLANAR PNP TRANSISTOR


  AUDIO FREQUENCY AMPLIFIER APPLICATION.                                                                 A
                                                                                                         B                D
                                                                                             C
                                                                                                                      E
  FEATURES
                                                                                                                          F
    High Voltage : VCEO=-150V.
    Low Output Capacitance : Cob=5.0pF(Max.).                                                                         G

    High Transition Frequency : fT=120MHz(Typ.)
                                                                                                 H
    Complementary to KTC3423.                                                                                                            DIM    MILLIMETERS
                                                                                                 J
                                                                                                                                          A        8.3 MAX
                                                                                                 K                        L               B            5.8
                                                                                                                                          C            0.7
                                                                                                                                          D              _
                                                                                                                                                  3.2 + 0.1
                                                                                                                                          E            3.5
                                                                                                                                          F              _
                                                                                                                                                   11.0 + 0.3
  MAXIMUM RATING (Ta=25 )                                                                                                                 G        2.9 MAX
                                                                                                 M
                                                                                                                                          H        1.0 MAX
         CHARACTERISTIC                   SYMBOL        RATING        UNIT                                                                J        1.9 MAX
                                                                                                                      O                   K             _
                                                                                                                                                  0.75 + 0.15
                                                                                             N
   Collector-Base Voltage                  VCBO              -150       V                            1   2   3
                                                                                                                              P
                                                                                                                                          L              _
                                                                                                                                                  15.50 + 0.5
                                                                                                                                          M             _
                                                                                                                                                    2.3 + 0.1
   Collector-Emitter Voltage               VCEO              -150       V                                                                 N             _
                                                                                                                                                  0.65 + 0.15
                                                                                                             1. EMITTER                   O            1.6
   Emitter-Base Voltage                    VEBO               -5        V                                    2. COLLECTOR                 P        3.4 MAX
                                                                                                             3. BASE
   Collector Current                        IC               -50       mA
   Emitter Current                          IE               50        mA
                                                                                                                              TO-126
   Base current                             IB                -5       mA
   Collector Power Dissipation              PC               1.5        W
   Junction Temperature                     Tj               150
   Storage Temperature Range               Tstg         -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                      )
              CHARACTERISTIC                        SYMBOL                  TEST CONDITION                       MIN.             TYP.    MAX.          UNIT
   Collector Cut-off Current                          ICBO          VCB=-150V, IE=0                               -                -       -0.1            A
   Emitter Cut-off Current                            IEBO          VEB=-5V, IC=0                                 -                -       -0.1            A
   DC Current Gain                                  hFE(Note)       VCE=-5V, IC=-10mA                             70               -       240
   Collector-Emitter Saturation Voltage              VCE(sat)       IC=-10mA, IB=-1mA                             -                -       -0.8           V
   Base-Emitter Voltage                               VBE           VCE=-5V, IC=-30mA                             -                -       -0.9           V
   Transition Frequency                                fT           VCE=-30V, IC=-10mA                            -               120           -       MHz
   Collector Output Capacitance                        Cob          VCB=-10V, IE=0, f=1MHz                        -               4.0          5.0        pF

  Note : hFE Classification    O:70 140,    Y:120    240




2007. 3. 28                      Revision No : 2                                                                                                                1/3
                                                                                                                  KTA1360


                                                                        I C - VCE                                                                                                                      h FE - I C
                                      -50                                                                                                                          500
                                                                                                      COMMON
    COLLECTOR CURRENT I C (mA)




                                                                                                                                                                                                                         COMMON EMITTER
                                                                                                      EMITTER
                                                                                                                                                                   300
                                                                          A                                                                                                                                              Ta=25 C




                                                                                                                                       DC CURRENT GAIN h FE
                                                                        0
