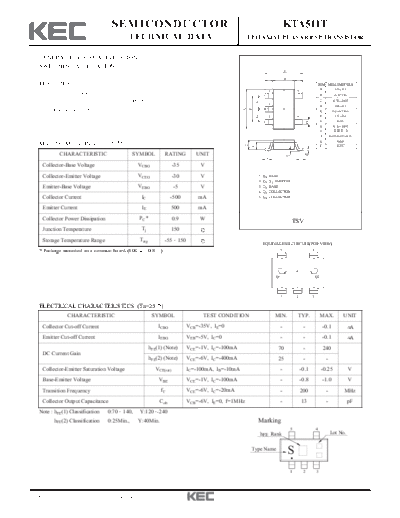

Image preview - the first page of the document
>> Download kta511t documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA511T
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
E
B
FEATURES DIM MILLIMETERS
A _
2.9 + 0.2
1 5
Excellent hFE Linearity B 1.6+0.2/-0.1
_
: hFE(2)=25(Min.) at VCE=-6V, IC=-400mA. C 0.70 + 0.05
G
2 _
D 0.4 + 0.1
Complementary to KTC611T.
F
A
E 2.8+0.2/-0.3
F _
1.9 + 0.2
3 4
G
G 0.95
D
H _
0.16 + 0.05
I 0.00-0.10
J 0.25+0.25/-0.15
K 0.60
MAXIMUM RATING (Ta=25 )
C
L
L 0.55
CHARACTERISTIC SYMBOL RATING UNIT I H
J J
Collector-Base Voltage VCBO -35 V
Collector-Emitter Voltage VCEO -30 V 1. Q 1 BASE
2. Q 1, Q 2 EMITTER
Emitter-Base Voltage VEBO -5 V 3. Q 2 BASE
4. Q 2 COLLECTOR
Collector Current IC -500 mA 5. Q 1 COLLECTOR
Emitter Current IE 500 mA
Collector Power Dissipation PC * 0.9 W
TSV
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
EQUIVALENT CIRCUIT(TOP VIEW)
5 4
* Package mounted on a ceramic board (600 0.8 )
Q1 Q2
1 2 3
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-35V, IE=0 - - -0.1 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -0.1 A
hFE(1) (Note) VCE=-1V, IC=-100mA 70 - 240
DC Current Gain
hFE(2) (Note) VCE=-6V, IC=-400mA 25 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=-100mA, IB=-10mA - -0.1 -0.25 V
Base-Emitter Voltage VBE VCE=-1V, IC=-100mA - -0.8 -1.0 V
Transition Frequency fT VCE=-6V, IC=-20mA - 200 - MHz
Collector Output Capacitance Cob VCB=-6V, IE=0, f=1MHz - 13 - pF
Note : hFE(1) Classification 0:70 140, Y:120 240
hFE(2) Classification 0:25Min., Y:40Min. Marking
5 4
h FE Rank Lot No.
Type Name
S
1 2 3
2002. 1. 24 Revision No : 1 1/2
KTA511T
I C - VCE h FE - I C
-600 1k
COLLECTOR CURRENT I C (mA)
COMMON COMMON EMITTER
-8 -7 -6 -5 EMITTER 500
-500
Ta=25 C
DC CURRENT GAIN h FE
300
-4 Ta=100 C VCE =-6V
-400
Ta=25 C
-3
-300 100 Ta=-25 C
-2 VCE =-1V
-200 50
I B =-1mA
30
-100
0
0 10
0 -1 -2 -3 -4 -5 -0.3 -1 -3 -10 -30 -100 -300 -1k
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
V CE(sat) - I C I B - VBE
COLLECTOR-EMITTER SATURATION
-3 -3k
COMMON EMITTER COMMON
I C /I B =10 -1k EMITTER
-1
VOLTAGE VCE(sat) (V)
BASE CURRENT I B (◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
