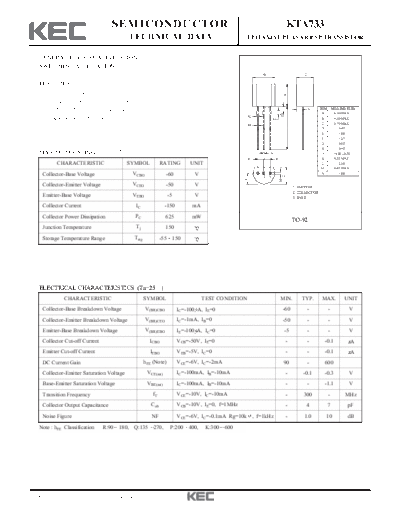

Image preview - the first page of the document
>> Download kta733 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTA733
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
B C
FEATURES
Excellent hFE Linearity.
A
: hFE(IC=0.1mA)/hFE(IC=2mA)=0.95(Typ.)
Low Noise : NF=1dB(Typ.). at f=1kHz N DIM MILLIMETERS
E A 4.70 MAX
K
Complementary to KTC945. G B 4.80 MAX
D C 3.70 MAX
J
D 0.45
E 1.00
F 1.27
G 0.85
H 0.45
MAXIMUM RATING (Ta=25 ) H J _
14.00 + 0.50
F F K 0.55 MAX
CHARACTERISTIC SYMBOL RATING UNIT L 2.30
M 0.45 MAX
Collector-Base Voltage VCBO -60 V N 1.00
C
1 2 3
L
M
Collector-Emitter Voltage VCEO -50 V 1. EMITTER
2. COLLECTOR
Emitter-Base Voltage VEBO -5 V 3. BASE
Collector Current IC -150 mA
Collector Power Dissipation PC 625 mW
TO-92
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector-Base Breakdown Voltage V(BR)CBO IC=-100 A, IE=0 -60 - - V
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA, IB=0 -50 - - V
Emitter-Base Breakdown Voltage V(BR)EBO IE=-100 A, IC=0 -5 - - V
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -0.1 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -0.1 A
DC Current Gain hFE (Note) VCE=-6V, IC=-2mA 90 - 600
Collector-Emitter Saturation Voltage VCE(sat) IC=-100mA, IB=-10mA - -0.1 -0.3 V
Base-Emitter Saturation Voltage VBE(sat) IC=-100mA, IB=-10mA - - -1.1 V
Transition Frequency fT VCE=-10V, IC=-10mA - 300 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 4 7 pF
Noise Figure NF VCE=-6V, IC=-0.1mA Rg=10k , f=1kHz - 1.0 10 dB
Note : hFE Classification R:90 180, Q:135 270, P:200 400, K:300 600
2001. 9. 14 Revision No : 2 1/2
KTA733
I C - VCE hFE - I C
-240 3k
COMMON EMITTER COMMON
COLLECTOR CURRENT I C (mA)
-2.0 Ta=25 C EMITTER
-200
DC CURRENT GAIN h FE
VCE =-6V
-1.5
1k
-160
-1.0 500
-120 300 Ta=100 C
-0.5 Ta=25 C
-80 Ta=-25 C
100
I B =-0.2mA
-40
50
0
0 30
0 -1 -2 -3 -4 -5 -6 -7 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
VCE(sat) - I C fT - IC
COLLECTOR-EMITTER SATURATION
-1k 3k
TRANSITION FREQUENCY f T (MHz)
COMMON EMITTER COMMON EMITTER
-500 I C /I B =10 VCE =-10V
VOLTAGE VCE(sat) (mV)
Ta=25 C
-300 1k
500
-100 300
C
-50 00
=1
Ta
-30 Ta=25 C 100
Ta=-25 C
50
-10 30
-0.1 -0.3 -1 -3 -10 -30 -100 -300 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
I B - VBE Pc - Ta
-1k 700
COLLECTOR POWER DISSIPATION
COMMON EMITTER
-300 VCE =-6V 600
