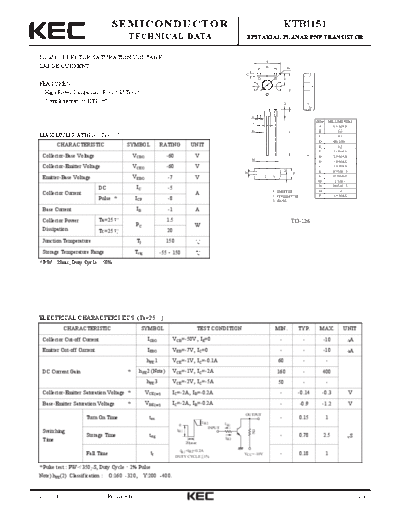

Image preview - the first page of the document
ktb1151


>> Download ktb1151 documenatation <<

Text preview - extract from the document
                                     SEMICONDUCTOR                                                                                     KTB1151
                                            TECHNICAL DATA                                                     EPITAXIAL PLANAR PNP TRANSISTOR


  LOW COLLECTOR SATURATION VOLTAGE
                                                                                                                          A
  LARGE CURRENT                                                                                                           B                D
                                                                                                              C
                                                                                                                                       E
  FEATURES
    High Power Dissipation : PC=1.5W(Ta=25 )                                                                                               F


    Complementary to KTD1691.                                                                                                          G


                                                                                                                  H
                                                                                                                                                           DIM       MILLIMETERS
                                                                                                                  J
                                                                                                                                                            A           8.3 MAX
                                                                                                                  K                        L                B               5.8
  MAXIMUM RATING (Ta=25                 )                                                                                                                   C               0.7
                                                                                                                                                            D                 _
                                                                                                                                                                       3.2 + 0.1
          CHARACTERISTIC                    SYMBOL              RATING               UNIT                                                                   E               3.5
                                                                                                                                                            F                 _
                                                                                                                                                                        11.0 + 0.3
   Collector-Base Voltage                       VCBO                  -60              V                                                                    G           2.9 MAX
                                                                                                                  M
                                                                                                                                                            H           1.0 MAX
   Collector-Emitter Voltage                    VCEO                  -60              V                                                                    J           1.9 MAX
                                                                                                                                       O                    K                _
                                                                                                                                                                       0.75 + 0.15
                                                                                                              N                                P
                                                                                                                                                                              _
   Emitter-Base Voltage                         VEBO                  -7               V                              1   2   3                             L          15.50 + 0.5
                                                                                                                                                            M                _
                                                                                                                                                                         2.3 + 0.1
                                                                                                                                                                             _
                                                                                                                                                                       0.65 + 0.15
                             DC                  IC                   -5                                                                                    N
                                                                                                                                                            O               1.6
   Collector Current                                                                   A                                      1. EMITTER
                                                                                                                                                            P           3.4 MAX
                             Pulse *            ICP                   -8                                                      2. COLLECTOR
                                                                                                                              3. BASE

   Base Current                                  IB                   -1               A

   Collector Power           Ta=25                                    1.5                                                                      TO-126
                                                 PC                                    W
   Dissipation               Tc=25                                    20
   Junction Temperature                          Tj                   150
   Storage Temperature Range                    Tstg            -55 150
  * PW    10ms, Duty Cycle     50%




  ELECTRICAL CHARACTERISTICS (Ta=25                               )
              CHARACTERISTIC                          SYMBOL                           TEST CONDITION                             MIN.             TYP.     MAX.             UNIT
   Collector Cut-off Current                            ICBO               VCB=-50V, IE=0                                          -                 -       -10                A
   Emitter Cut-off Current                              IEBO               VEB=-7V, IC=0                                           -                 -       -10                A
                                                        hFE 1              VCE=-1V, IC=-0.1A                                       60                -           -
   DC Current Gain                          *     hFE2 (Note)              VCE=-1V, IC=-2A                                        160                -       400
                                                        hFE 3              VCE=-2V, IC=-5A                                         50                -           -
   Collector-Emitter Saturation Voltage *              VCE(sat)            IC=-2A, IB=-0.2A                                        -               -0.14     -0.3              V
   Base-Emitter Saturation Voltage          *          VBE(sat)            IC=-2A, IB=-0.2A                                        -               -0.9      -1.2              V
                                                                                                              OUTPUT
                        Turn On Time                     ton                                                                       -               0.15          1
                                                                                           I B2        I B1
                                                                             0
                                                                                               INPUT
   Switching                                                                IB1
                                                                                                                  5




                        Storage Time                     tstg                                          I B2
                                                                                                                                   -               0.78      2.5                S
   Time
                                                                                  20
