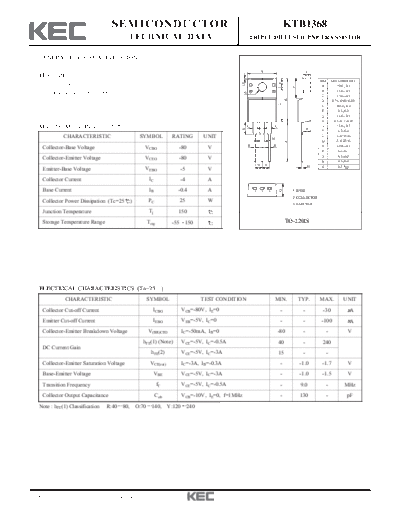

Image preview - the first page of the document
>> Download ktb1368 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTB1368
TECHNICAL DATA TRIPLE DIFFUSED PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
A C
FEATURES
DIM MILLIMETERS
F
Good Linearity of hFE. S
A _
10.0 + 0.3
P
B _
15.0 + 0.3
Complementary to KTD2060. E
C _
2.70 + 0.3
B
D 0.76+0.09/-0.05
G
E 3.2 + 0.2
_
F _
3.0 + 0.3
G _
12.0 + 0.3
H 0.5+0.1/-0.05
_
MAXIMUM RATING (Ta=25 ) L L J 13.6 + 0.5
K
R _
K 3.7 + 0.2
CHARACTERISTIC SYMBOL RATING UNIT L 1.2+0.25/-0.1
M
M 1.5+0.25/-0.1
J
D D N _
2.54 + 0.1
Collector-Base Voltage VCBO -80 V
P _
6.8 + 0.1
Q _
4.5 + 0.2
Collector-Emitter Voltage VCEO -80 V _
R 2.6 + 0.2
N N H S 0.5 Typ
Emitter-Base Voltage VEBO -5 V
Collector Current IC -4 A
Base Current IB -0.4 A
Q
1 2 3 1. BASE
2. COLLECTOR
Collector Power Dissipation (Tc=25 ) PC 25 W
3. EMITTER
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150 TO-220IS
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-80V, IE=0 - - -30 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -100 A
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-50mA, IB=0 -80 - - V
hFE(1) (Note) VCE=-5V, IC=-0.5A 40 - 240
DC Current Gain
hFE(2) VCE=-5V, IC=-3A 15 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=-3A, IB=-0.3A - -1.0 -1.7 V
Base-Emitter Voltage VBE VCE=-5V, IC=-3A - -1.0 -1.5 V
Transition Frequency fT VCE=-5V, IC=-0.5A - 9.0 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 130 - pF
Note : hFE(1) Classification R:40 80, O:70 140, Y:120 240
2007. 5. 21 Revision No : 2 1/2
KTB1368
I C - V CE h FE - I C
-4.0 300
-140
-120 -100 COMMON
COLLECTOR CURRENT I C (A)
-160 C
-80 EMITTER Tc=75
-180
DC CURRENT GAIN h FE
-3.2 5 C
-60 Tc=25 C 100 Tc=2
25 C
-2.4 -40 50 Tc=-
30
-1.6 I B =-20mA
10
-0.8 COMMON EMITTER
5 VCE =-5V
0
0 3
0 -1 -2 -3 -4 -5 -6 -7 -0.003 -0.01 -0.03 -0.1 -0.3 -1 -4
COLLECTOR-EMITTER VOLTAGE VCE (V)
COLLECTOR CURRENT I C (A)
VCE(sat) - I C Pc - Ta
COLLECTOR POWER DISSIPATION PC (W)
COLLECTOR-EMITTER SATURATION
-3 30
COMMON EMITTER Tc=Ta
IC /I B =10 25 INFINITE HEAT SINK
VOLTAGE VCE(sat) (V)
-1
20
-0.5
-0.3 15
C
= 75
Tc 10
-0.1 Tc=25 C
Tc=-25 C 5
-0.05
-0.03 0
-0.003 -0.01 -0.03 -0.1 -0.3 -1 -4 0 25 50 75 100 125 150
COLLECTOR CURRENT I C (A) AMBIENT TEMPERATURE Ta ( C)
SAFE OPERATING AREA
-30
COLLECTOR CURRENT I C (A)
I C MAX(PULSED)
-10 1ms
I C MAX 10ms
-5 (CONTINOUS) 100ms
1s
-3 DC
(T OPE
c=
25 RAT
C) ION
-1
SINGLE NONREPETITIVE
VCEO MAX
-0.5 PULSE Tc=25 C
-0.3 CURVES MUST BE DERATED
LINEARLY WITH INCREASE
IN TEMPERATURE
-0.1
-2 -10 -30 -100 -200
COLLECTOR-EMITTER VOLTAGE VCE (V)
2007. 5. 21 Revision No : 2 2/2
