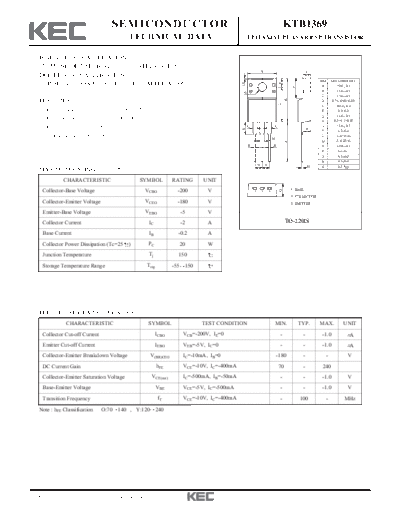

Image preview - the first page of the document
>> Download ktb1369 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTB1369
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
HIGH VOLTAGE APPLICATION
TV, MONITOR VERTICAL OUTPUT APPLICATION
A C
DRIVER STAGE APPLICATION
DIM MILLIMETERS
F
COROR TV CLASS B SOUND OUTPUT APPLICATION S
A _
10.0 + 0.3
P
B _
15.0 + 0.3
E
C _
2.70 + 0.3
B
FEATURES D 0.76+0.09/-0.05
G
E 3.2 + 0.2
_
High Breakdown Voltage : VCEO=-180V(Min.) F _
3.0 + 0.3
G _
12.0 + 0.3
High Transition Frequency : fT=100MHz(Typ.) H 0.5+0.1/-0.05
J _
13.6 + 0.5
High Current : IC(max)=-2A. L L
K
R _
K 3.7 + 0.2
Complementary to KTD2061. L 1.2+0.25/-0.1
M
M 1.5+0.25/-0.1
J
D D N _
2.54 + 0.1
P _
6.8 + 0.1
Q _
4.5 + 0.2
R _
2.6 + 0.2
N N H S 0.5 Typ
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO -200 V 1. BASE
Q
1 2 3
2. COLLECTOR
Collector-Emitter Voltage VCEO -180 V 3. EMITTER
Emitter-Base Voltage VEBO -5 V
Collector Current IC -2 A TO-220IS
Base Current IB -0.2 A
Collector Power Dissipation (Tc=25 ) PC 20 W
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-200V, IE=0 - - -1.0 A
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -1.0 A
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-10mA, IB=0 -180 - - V
DC Current Gain hFE VCE=-10V, IC=-400mA 70 - 240
Collector-Emitter Saturation Voltage VCE(sat) IC=-500mA, IB=-50mA - - -1.0 V
Base-Emitter Voltage VBE VCE=-5V, IC=-500mA - - -1.0 V
Transition Frequency fT VCE=-10V, IC=-400mA - 100 - MHz
Note : hFE Classification O:70 140 , Y:120 240
2007. 5. 21 Revision No : 4 1/2
KTB1369
I C - VCE h FE - I C
-1.0 1k
COLLECOTR CURRENT I C (A)
I B =-8mA 500
DC CURRENT GAIN h FE
-0.8
I B =-7mA 300
-0.6 I B =-6mA
VCE =-10V
I B =-5mA
100
I B =-4mA
-0.4
50
I B =-3mA
30
-0.2 I B =-2mA
I B =-1mA
0 10
0 -10 -20 -30 -40 -50 -0.01 -0.03 -0.1 -0.3 -1 -3 -10
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (A)
SAFE OPERATING AREA
SATURATION VOLTAGE VBE(sat) ,VCE(sat) (V)
VCE(sat) ,VBE(sat) - I C
-10 -7
-5 I C MAX(PULSED)
-5 IC =10I B
-3 -3 I C MAX
10
