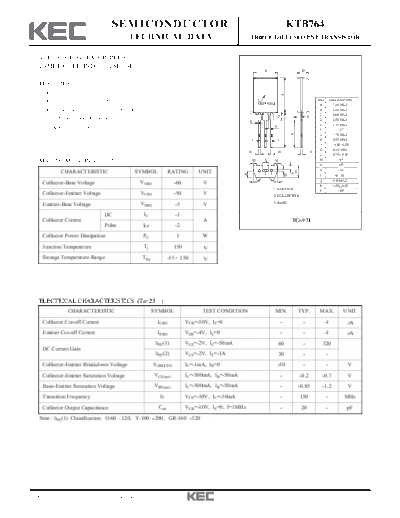

Image preview - the first page of the document
>> Download ktb764 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTB764
TECHNICAL DATA TRIPLE DIFFUSED PNP TRANSISTOR
VOLTAGE REGULATOR, RELAY,
LAMP DRIVER, INDUSTRIAL USE
B D
FEATURES
High Voltage : VCEO=-50V(Min.).
A
High Current : IC(Max.)=-1A. P DIM MILLIMETERS
DEPTH:0.2 A 7.20 MAX
High Transition Frequency : fT=150MHz(Typ.). C
B 5.20 MAX
C 0.60 MAX
G
S
Wide Area of Safe Operation. Q D 2.50 MAX
E 1.15 MAX
Complementary to KTD863. K
F 1.27
J
R
G 1.70 MAX
F F H 0.55 MAX
J _
14.00 + 0.50
K 0.35 MIN
H H H
L _
0.75 + 0.10
E M 4
MAXIMUM RATING (Ta=25 ) M M
N 25
O 1.25
CHARACTERISTIC SYMBOL RATING UNIT
D
1 2 3 L
O
H P 1.50
Q 0.10 MAX
Collector-Base Voltage VCBO -60 V N N
_
R 12.50 + 0.50
1. EMITTER
S 1.00
Collector-Emitter Voltage VCEO -50 V 2. COLLECTOR
Emitter-Base Voltage VEBO -5 V 3. BASE
DC IC -1
Collector Current A TO-92L
Pulse ICP -2
Collector Power Dissipation PC 1 W
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -1 A
Emitter Cut-off Current IEBO VEB=-4V, IC=0 - - -1 A
hFE(1) VCE=-2V, IC=-50mA 60 - 320
DC Current Gain
hFE(2) VCE=-2V, IC=-1A 30 - -
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA, IB=0 -50 - - V
Collector-Emitter Saturation Voltage VCE(sat) IC=-500mA, IB=-50mA - -0.2 -0.7 V
Base-Emitter Saturation Voltage VBE(sat) IC=-500mA, IB=-50mA - -0.85 -1.2 V
Transition Frequency fT VCE=-10V, IC=-50mA - 150 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 20 - pF
Note : hFE(1) Classification O:60 120, Y:100 200, GR:160 320
1999. 11. 30 Revision No : 2 1/3
KTB764
1999. 11. 30 Revision No : 2 2/3
KTB764
SAFE OPERATING AREA Pc - Ta
COLLECTOR POWER DISSIPATION
-5 1.2k
COLLECTOR CURRENT IC (A)
1PULSE
-3 I CP
1m
1k
10
se
I C MAX.
ms
c
-1
ec
-0.5 1s
DC ec 800
Pc (mW)
-0.3 OP
10
ER
0m
AT 600
se
IO
c
-0.1 N
-0.05 400
-0.03
200
-0.01
-0.005 0
-0.5 -1 -3 -5 -10 -30 -50 -100 0 20 40 60 80 100 120 140 160
COLLECTOR-EMITTER VOLTAGE VCE (V) AMBIENT TEMPERATURE Ta ( C)
1999. 11. 30 Revision No : 2 3/3
