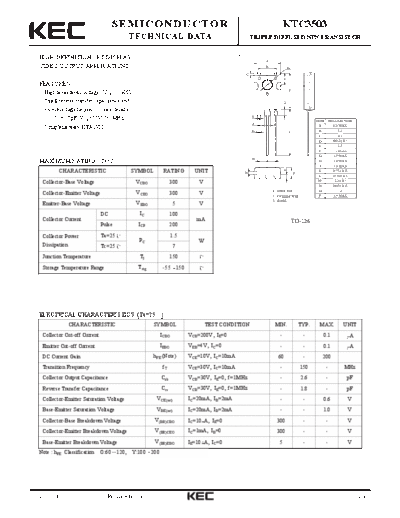

ktc3503


>> Download ktc3503 documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                                                        KTC3503
                                            TECHNICAL DATA                                          TRIPLE DIFFUSED NPN TRANSISTOR


  HIGH-DEFINITION CRT DISPLAY,                                                                              A
  VIDEO OUTPUT APPLICATIONS.                                                                                B                D
                                                                                                C
                                                                                                                         E
  FEATURES
                                                                                                                             F
    High breakdown voltage : VCEO      300V.
    Small reverse transfer capacitance and                                                                               G

    excellent high frequency characteristic.
                                                                                                    H
       : Cre=1.8pF (VCB=30V, f=1MHz)                                                                                                        DIM       MILLIMETERS
                                                                                                    J
    Complementary KTA1381.                                                                                                                   A           8.3 MAX
                                                                                                    K                        L               B               5.8
                                                                                                                                             C               0.7
                                                                                                                                             D                 _
                                                                                                                                                        3.2 + 0.1
                                                                                                                                             E               3.5
                                                                                                                                             F                 _
                                                                                                                                                         11.0 + 0.3
                                                                                                                                             G           2.9 MAX
                                                                                                    M
  MAXIMUM RATING (Ta=25                 )                                                                                                    H           1.0 MAX
                                                                                                                                             J           1.9 MAX
          CHARACTERISTIC                     SYMBOL            RATING        UNIT              N
                                                                                                                         O
                                                                                                                                 P
                                                                                                                                             K                _
                                                                                                                                                        0.75 + 0.15
                                                                                                        1   2   3                            L                 _
                                                                                                                                                        15.50 + 0.5
                                                                                                                                                              _
                                                                                                                                                          2.3 + 0.1
   Collector-Base Voltage                       VCBO                300        V                                                             M
                                                                                                                                             N                _
                                                                                                                                                        0.65 + 0.15
                                                                                                                1. EMITTER                   O               1.6
   Collector-Emitter Voltage                    VCEO                300        V                                                             P           3.4 MAX
                                                                                                                2. COLLECTOR
                                                                                                                3. BASE
   Emitter-Base Voltage                         VEBO                 5         V
                               DC                IC                 100
   Collector Current                                                          mA                                                 TO-126
                               Pulse             ICP                200

   Collector Power             Ta=25                                 1.5
                                                 PC                           W
   Dissipation                 Tc=25                                 7
   Junction Temperature                          Tj                 150
   Storage Temperature Range                     Tstg          -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                           )
                 CHARACTERISTIC                         SYMBOL                     TEST CONDITION                MIN.                TYP.    MAX.             UNIT
   Collector Cut-off Current                                  ICBO         VCB=200V, IE=0                            -                -       0.1                A
   Emitter Cut-off Current                                    IEBO         VEB=4V, IC=0                              -                -       0.1                A
   DC Current Gain                                      hFE (Note)         VCE=10V, IC=10mA                         60                -       200
   Transition Frequency                                        fT          VCE=30V, IC=10mA                          -               150          -           MHz
   Collector Output Capacitance                               Cob          VCB=30V, IE=0, f=1MHz                     -               2.6          -             pF
   Reverse Transfer Capacitance                               Cre          VCB=30V, IE=0, f=1MHz                     -               1.8          -             pF
   Collector-Emitter Saturation Voltage                   VCE(sat)         IC=20mA, IB=2mA                           -                -       0.6               V
   Base-Emitter Saturation Voltage                        VBE(sat)         IC=20mA, IB=2mA                           -                -       1.0               V
   Collector-Base Breakdown Voltage                      V(BR)CBO          IC=10 A, IE=0                            300               -           -             V
   Collector-Emitter Breakdown Voltage                   V(BR)CEO          IC=1mA, IB=0                             300               -           -             V
   Base-Emitter Breakdown Voltage                        V(BR)EBO          IE=10 A, IC=0                             5                -           -             V
  Note : hFE Classification    O:60 120,       Y:100    200




2003. 7. 24                      Revision No : 3                                                                                                                      1/3
                                                                                                               KTC3503


                                                                   I C - V CE                                                                                                            I C - V CE
                                         20                                                                                                              10
                                                                        I B =120
