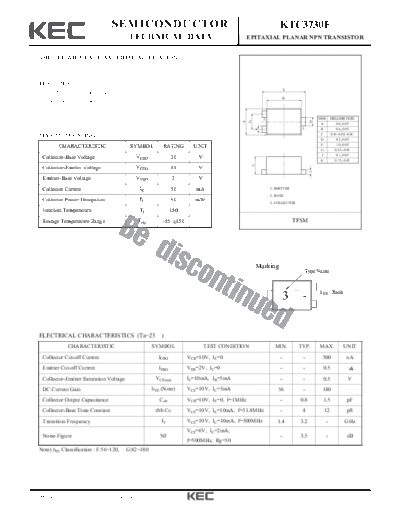

Image preview - the first page of the document
ktc3730f


>> Download ktc3730f documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                      KTC3730F
                                             TECHNICAL DATA                                    EPITAXIAL PLANAR NPN TRANSISTOR


 VHF/UHF WIDE BAND AMPLIFIER APPLICATION.



 FEATURES
                                                                                                                         E
   Low Noise Figure, High Gain.
                                                                                                                         B
   Small rbb Cc (Typ. 4pS).


                                                                                                            2                            DIM       MILLIMETERS




                                                                                           A
                                                                                                G




                                                                                                                                     D
                                                                                                                                          A                _
                                                                                                                                                       0.6 + 0.05
                                                                                                                                3                          _




                                                                                                        K
                                                                                                                                          B            0.8 + 0.05
 MAXIMUM RATING (Ta=25                  )                                                                   1                             C        0.38+0.02/-0.04
                                                                                                                                          D                _
                                                                                                                                                       0.2 + 0.05
                                                                                                                                          E                _
                                                                                                                                                       1.0 + 0.05
             CHARACTERISTIC                  SYMBOL        RATING        UNIT                                                                              _
                                                                                                                                          G           0.35+ 0.05
                                                                                                                                          J                _
                                                                                                                                                       0.1 + 0.05
   Collector-Base Voltage                      VCBO             20         V                                                                               _
                                                                                                                                          K           0.15 + 0.05




                                                                                                    C
   Collector-Emitter Voltage                   VCEO             11         V




                                                                                                                                     J
   Emitter-Base Voltage                        VEBO                3       V
   Collector Current                            IC              50        mA                                    1. EMITTER
                                                                                                                2. BASE
   Collector Power Dissipation                  PC              50        mW                                    3. COLLECTOR

   Junction Temperature                         Tj              150
   Storage Temperature Range                    Tstg       -55 150                                                           TFSM




                                                                                                        Marking
                                                                                                                                Type Name


                                                                                                                                         h FE Rank
                                                                                                                         3


 ELECTRICAL CHARACTERISTICS (Ta=25                         )
               CHARACTERISTIC                          SYMBOL                  TEST CONDITION                     MIN.         TYP.      MAX.              UNIT
   Collector Cut-off Current                             ICBO          VCB=10V, IE=0                                 -          -         500                nA
   Emitter Cut-off Current                               IEBO          VEB=2V, IC=0                                  -          -          0.5                A
   Collector-Emitter Saturation Voltage                 VCE(sat)       IC=10mA, IB=5mA                               -          -          0.5                V
   DC Current Gain                                     hFE (Note)      VCE=10V, IC=5mA                              56          -         180
   Collector Output Capacitance                           Cob          VCB=10V, IE=0, f=1MHz                         -         0.8         1.5               pF
   Collector-Base Time Constant                         rbb Cc         VCE=10V, IE=10mA, f=31.8MHz                   -          4          12                pS
   Transition Frequency                                    fT          VCE=10V, IC=10mA, f=500MHz                   1.4        3.2             -            GHz
                                                                       VCE=6V, IC=2mA,
   Noise Figure                                           NF                                                         -         3.5             -             dB
                                                                       f=500MHz, Rg=50
 Note) hFE Classification : F:56~120,       G:82~180




2005. 4. 7                       Revision No : 0                                                                                                                     1/3
                               KTC3730F




2005. 4. 7   Revision No : 0              2/3
                               KTC3730F




2005. 4. 7   Revision No : 0              3/3
