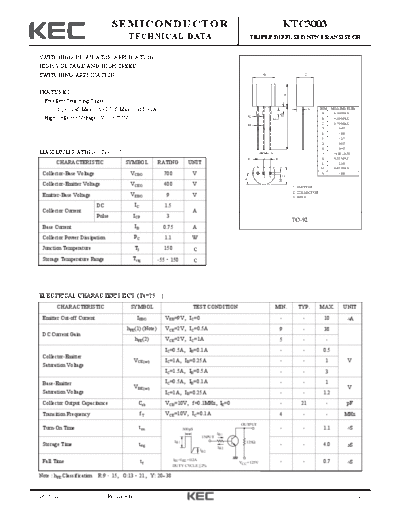

Image preview - the first page of the document
ktc3003


>> Download ktc3003 documenatation <<

Text preview - extract from the document
                                      SEMICONDUCTOR                                                                                     KTC3003
                                             TECHNICAL DATA                                                 TRIPLE DIFFUSED NPN TRANSISTOR


  SWITCHING REGULATOR APPLICATION.
  HIGH VOLTAGE AND HIGH SPEED
  SWITCHING APPLICATION.                                                                                            B                            C




  FEATURES




                                                                                                                                        A
    Excellent Switching Times
         : ton=1.1 S(Max.), tf=0.7 S(Max.), at IC=1A                                                                                                 N     DIM    MILLIMETERS
                                                                                                                                    E                       A      4.70 MAX
                                                                                                            K
    High Collector Voltage : VCBO=700V.                                                                                     G                               B      4.80 MAX
                                                                                                            D                                               C      3.70 MAX
                                                                                                                                                            D          0.45




                                                                                                                                        J
                                                                                                                                                            E          1.00
                                                                                                                                                            F          1.27
                                                                                                                                                            G          0.85
                                                                                                                                                            H          0.45
  MAXIMUM RATING (Ta=25                  )                                                                              H                                   J            _
                                                                                                                                                                   14.00 + 0.50
                                                                                                            F                   F                           K      0.55 MAX
          CHARACTERISTIC                     SYMBOL          RATING          UNIT                                                                           L          2.30
                                                                                                                                                            M      0.45 MAX
   Collector-Base Voltage                     VCBO             700              V                                       3
                                                                                                                                                            N         1.00
                                                                                                                1   2




                                                                                                                                    C
                                                                                                        L




                                                                                                                                M
   Collector-Emitter Voltage                  VCEO             400              V                                                           1. EMITTER
                                                                                                                                            2. COLLECTOR
   Emitter-Base Voltage                       VEBO              9               V                                                           3. BASE

                              DC                IC             1.5
   Collector Current                                                            A
                              Pulse            ICP              3
                                                                                                                                            TO-92
   Base Current                                 IB            0.75              A
   Collector Power Dissipation                 PC              1.1              W
   Junction Temperature                         Tj             150
   Storage Temperature Range                   Tstg          -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25 )
          CHARACTERISTIC                      SYMBOL                            TEST CONDITION                              MIN.              TYP.         MAX.         UNIT
   Emitter Cut-off Current                       IEBO          VEB=9V, IC=0                                                         -           -           10             A
                                             hFE(1) (Note)     VCE=2V, IC=0.5A                                                      9           -           38
   DC Current Gain
                                                hFE(2)         VCE=2V, IC=1A                                                        5           -            -
                                                               IC=0.5A, IB=0.1A                                                     -           -           0.5
   Collector-Emitter
                                                VCE(sat)       IC=1A, IB=0.25A                                                      -           -            1             V
   Saturation Voltage
                                                               IC=1.5A, IB=0.5A                                                     -           -            3

   Base-Emitter                                                IC=0.5A, IB=0.1A                                                     -           -            1
                                                VBE(sat)                                                                                                                   V
   Saturation Voltage                                          IC=1A, IB=0.25A                                                      -           -           1.2
   Collector Output Capacitance                   Cob          VCB=10V, f=0.1MHz, IE=0                                              -          21            -            pF
   Transition Frequency                              fT        VCE=10V, IC=0.1A                                                     4           -            -           MHz
                                                                                                      OUTPUT
   Turn-On Time                                      ton                   300
