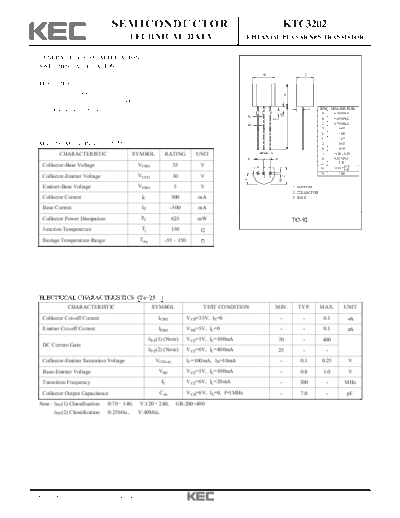

Image preview - the first page of the document
ktc3202


>> Download ktc3202 documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                                 KTC3202
                                           TECHNICAL DATA                                       EPITAXIAL PLANAR NPN TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  SWITCHING APPLICATION.
                                                                                                            B                            C

  FEATURES
    Excellent hFE Linearity




                                                                                                                                A
      : hFE(2)=25(Min.) at VCE=6V, IC=400mA.
    Complementary to KTA1270.                                                                                                                N     DIM    MILLIMETERS
                                                                                                                            E                       A      4.70 MAX
                                                                                                    K
                                                                                                                    G                               B      4.80 MAX
                                                                                                    D                                               C      3.70 MAX




                                                                                                                                J
                                                                                                                                                    D          0.45
                                                                                                                                                    E          1.00
                                                                                                                                                    F          1.27
  MAXIMUM RATING (Ta=25                )                                                                                                            G          0.85
                                                                                                                                                    H          0.45
                                                                                                                                                                 _
              CHARACTERISTIC                 SYMBOL            RATING       UNIT                                H                                   J      14.00 + 0.50
                                                                                                    F                   F                           K      0.55 MAX
                                                                                                                                                    L         2.30
   Collector-Base Voltage                     VCBO                 35        V                                                                                    +0.10
                                                                                                                                                            0.30 - 0.05
                                                                                                                                                    M
                                                                                                                                                    N         1.00
   Collector-Emitter Voltage                  VCEO                 30        V




                                                                                                                                C
                                                                                                        1   2   3




                                                                                                L




                                                                                                                            M
   Emitter-Base Voltage                       VEBO                 5         V                                                      1. EMITTER
                                                                                                                                    2. COLLECTOR
   Collector Current                           IC                500         mA                                                     3. BASE

   Base Current                                IE               -500         mA
   Collector Power Dissipation                 PC                625        mW                                                      TO-92
   Junction Temperature                        Tj                150
   Storage Temperature Range                  Tstg             -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                        )
                CHARACTERISTIC                        SYMBOL                   TEST CONDITION                       MIN.              TYP.         MAX.          UNIT
   Collector Cut-off Current                             ICBO            VCB=35V, IE=0                                      -           -           0.1              A
   Emitter Cut-off Current                               IEBO            VEB=5V, IC=0                                       -           -           0.1              A
                                                     hFE(1) (Note)       VCE=1V, IC=100mA                                   70          -           400
   DC Current Gain
                                                     hFE(2) (Note)       VCE=6V, IC=400mA                                   25          -            -
   Collector-Emitter Saturation Voltage                 VCE(sat)         IC=100mA, IB=10mA                                  -          0.1          0.25             V
   Base-Emitter Voltage                                  VBE             VCE=1V, IC=100mA                                   -          0.8          1.0              V
   Transition Frequency                                   fT             VCE=6V, IC=20mA                                    -          300           -           MHz
   Collector Output Capacitance                           Cob            VCB=6V, IE=0, f=1MHz                               -          7.0           -               pF
  Note : hFE(1) Classification   0:70 140,    Y:120      240,       GR:200~400
         hFE(2) Classification   0:25Min.,    Y:40Min.




2005. 7. 18                      Revision No : 0                                                                                                                          1/2
                                KTC3202




2005. 7. 18   Revision No : 0             2/2
