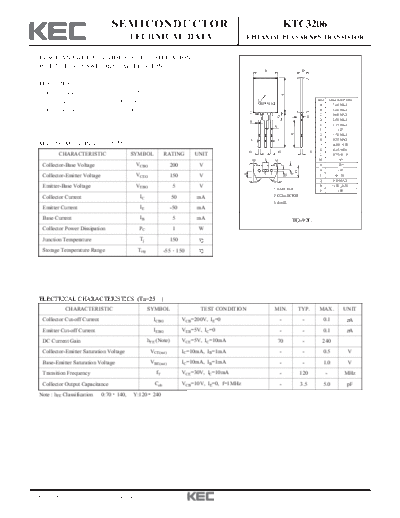

Image preview - the first page of the document
ktc3206


>> Download ktc3206 documenatation <<

Text preview - extract from the document
                                      SEMICONDUCTOR                                                                             KTC3206
                                             TECHNICAL DATA                                     EPITAXIAL PLANAR NPN TRANSISTOR


  BLACK AND WHITE TV VIDEO OUTPUT APLICATION.
  HIGH VOLTAGE SWITCHING APPLICATION.
                                                                                                                B                            D


  FEATURES
    High Breakdown Voltage : VCEO=150V(Min.).




                                                                                                                                A
    Low Output Capacitance : Cob=5.0pF(Max.).                                                               P                                             DIM       MILLIMETERS
                                                                                                            DEPTH:0.2                                      A          7.20 MAX
    High Transition Frequency : fT=120MHz(Typ.).                                                    C
                                                                                                                                                           B          5.20 MAX
                                                                                                                                                           C          0.60 MAX




                                                                                                                            G
                                                                                                                                                  S
                                                                                                    Q                                                      D          2.50 MAX
                                                                                                                        K                                 E          1.15 MAX
                                                                                                                                                          F              1.27




                                                                                                                                J

                                                                                                                                     R
                                                                                                                                                          G          1.70 MAX
                                                                                                    F                       F                             H          0.55 MAX
  MAXIMUM RATING (Ta=25 )                                                                                                                                 J                 _
                                                                                                                                                                     14.00 + 0.50
                                                                                                                                                          K           0.35 MIN
                                                                                                    H                       H                         H
           CHARACTERISTIC                    SYMBOL           RATING        UNIT                                                                          L                _
                                                                                                                                                                      0.75 + 0.10
                                                                                                        M       E       M                                 M                4
   Collector-Base Voltage                     VCBO               200          V                                                                           N               25
                                                                                                                                                          O              1.25




                                                                                                                                         D
                                                                                                            1   2   3                L




                                                                                                O
   Collector-Emitter Voltage                  VCEO               150          V                                                  H                        P             1.50
                                                                                                        N               N                                 Q           0.10 MAX
                                              VEBO                                                                                                                         _
   Emitter-Base Voltage                                           5           V                                         1. EMITTER
                                                                                                                                                          R          12.50 + 0.50
                                                                                                                                                          S              1.00
   Collector Current                           IC                 50         mA                                         2. COLLECTOR
                                                                                                                        3. BASE
   Emitter Current                             IE                 -50        mA
   Base Current                                IB                 5          mA
                                                                                                                                     TO-92L
   Collector Power Dissipation                 PC                 1           W
   Junction Temperature                        Tj                150
   Storage Temperature Range                  Tstg            -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25 )
              CHARACTERISTIC                         SYMBOL                   TEST CONDITION                            MIN.             TYP.             MAX.               UNIT
   Collector Cut-off Current                           ICBO             VCB=200V, IE=0                                      -                 -               0.1                   A
   Emitter Cut-off Current                             IEBO             VEB=5V, IC=0                                        -                 -               0.1                   A
   DC Current Gain                                   hFE (Note)         VCE=5V, IC=10mA                                     70                -               240
   Collector-Emitter Saturation Voltage               VCE(sat)          IC=10mA, IB=1mA                                     -                 -               0.5               V
   Base-Emitter Saturation Voltage                    VBE(sat)          IC=10mA, IB=1mA                                     -                 -               1.0               V
   Transition Frequency                                  fT             VCE=30V, IC=10mA                                    -                120                -             MHz
   Collector Output Capacitance                         Cob             VCB=10V, IE=0, f=1MHz                               -                3.5              5.0               pF
  Note : hFE Classification    0:70   140,   Y:120     240




2007. 3. 28                      Revision No : 1                                                                                                                                        1/3
                                KTC3206




2007. 3. 28   Revision No : 1             2/3
                                KTC3206




2007. 3. 28   Revision No : 1             3/3
