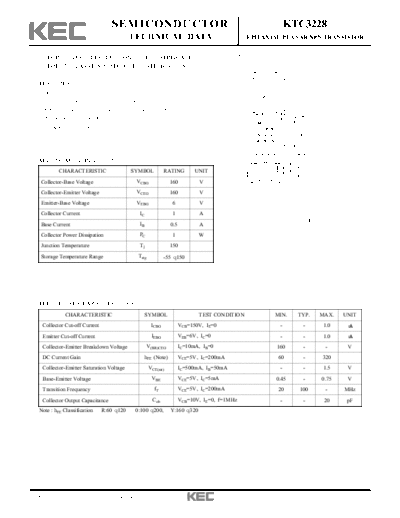

Image preview - the first page of the document
>> Download ktc3228 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTC3228
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
COLOR TV VERT. DEFELECTION OUTPUT APPLICATION.
COLOR TV CLASS B SOUND OUTPUT APPLICATION.
B D
FEATURES
High Voltage : VCEO=160V.
A
Large Continuous Collector Current Capability. P DIM MILLIMETERS
DEPTH:0.2 A 7.20 MAX
Recommended for Vert. Deflection Output & Sound Output C
B 5.20 MAX
C 0.60 MAX
G
S
Applications for Line Operated TV. Q D 2.50 MAX
E 1.15 MAX
Complementary to KTA1275. K
F 1.27
J
R
G 1.70 MAX
F F H 0.55 MAX
J _
14.00 + 0.50
K 0.35 MIN
H H H
L _
0.75 + 0.10
E M 4
MAXIMUM RATING (Ta=25 ) M M
N 25
CHARACTERISTIC SYMBOL RATING UNIT O 1.25
D
1 2 3 L
O
H P 1.50
VCBO Q 0.10 MAX
Collector-Base Voltage 160 V N N
_
R 12.50 + 0.50
1. EMITTER
S 1.00
Collector-Emitter Voltage VCEO 160 V
2. COLLECTOR
Emitter-Base Voltage VEBO 6 V 3. BASE
Collector Current IC 1 A
IB
TO-92L
Base Current 0.5 A
Collector Power Dissipation PC 1 W
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=150V, IE=0 - - 1.0 A
Emitter Cut-off Current IEBO VEB=6V, IC=0 - - 1.0 A
Collector-Emitter Breakdown Voltage V(BR)CEO IC=10mA, IB=0 160 - - V
DC Current Gain hFE (Note) VCE=5V, IC=200mA 60 - 320
Collector-Emitter Saturation Voltage VCE(sat) IC=500mA, IB=50mA - - 1.5 V
Base-Emitter Voltage VBE VCE=5V, IC=5mA 0.45 - 0.75 V
Transition Frequency fT VCE=5V, IC=200mA 20 100 - MHz
Collector Output Capacitance Cob VCB=10V, IE=0, f=1MHz - - 20 pF
Note : hFE Classification R:60 120 0:100 200, Y:160 320
2008. 4. 16 Revision No : 2 1/3
KTC3228
2008. 4. 16 Revision No : 2 2/3
KTC3228
2008. 4. 16 Revision No : 2 3/3
