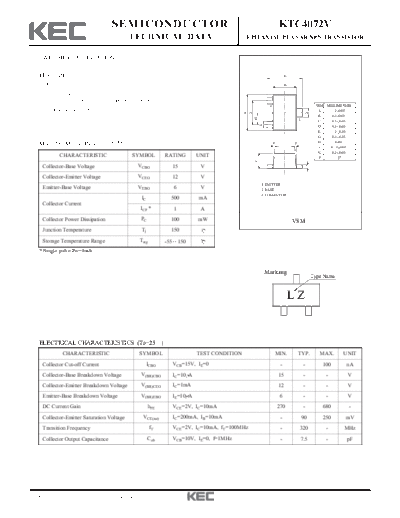

ktc4072v


>> Download ktc4072v documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                          KTC4072V
                                           TECHNICAL DATA                                      EPITAXIAL PLANAR NPN TRANSISTOR


  SWITCHING APPLICATION.

  FEATURES                                                                                                                    E

    High Current.                                                                                                             B

    Low VCE(sat).
      : VCE(sat)    250mV at IC=200mA/IB=10mA.
                                                                                                                2                                    DIM MILLIMETERS
    Complementary to KTA2012V.                                                                                                                        A        _
                                                                                                                                                           1.2 +0.05




                                                                                                                                               D
                                                                                                   G
                                                                                               A
                                                                                                                                                      B        _
                                                                                                                                                           0.8 +0.05




                                                                                                       H
                                                                                                                1                     3                        _
                                                                                                                                                      C    0.5 + 0.05




                                                                                                           K
                                                                                                                                                      D        _
                                                                                                                                                           0.3 + 0.05
                                                                                                                                                      E        _
                                                                                                                                                           1.2 + 0.05
                                                                                                                                                      G        _
                                                                                                                                                           0.8 + 0.05
                                                                                                                                                      H       0.40
  MAXIMUM RATING (Ta=25                )                                                                            P             P
                                                                                                                                                      J         _
                                                                                                                                                           0.12 + 0.05
                                                                                                                                                      K        _
                                                                                                                                                           0.2 + 0.05
              CHARACTERISTIC               SYMBOL                 RATING      UNIT                                                                    P         5




                                                                                                       C
   Collector-Base Voltage                    VCBO                   15         V




                                                                                                                                               J
   Collector-Emitter Voltage                 VCEO                   12         V
                                                                                                           1. EMITTER
   Emitter-Base Voltage                      VEBO                    6         V                           2. BASE
                                                                                                           3. COLLECTOR
                                               IC                   500       mA
   Collector Current
                                               ICP *                 1         A
   Collector Power Dissipation                 PC                   100       mW                                                  VSM
   Junction Temperature                        Tj                   150
   Storage Temperature Range                  Tstg                -55 150
  * Single pulse Pw=1mS.


                                                                                                               Marking
                                                                                                                                                   Type Name



                                                                                                                                  LZ


  ELECTRICAL CHARACTERISTICS (Ta=25                           )
              CHARACTERISTIC                  SYMBOL                          TEST CONDITION                            MIN.          TYP.            MAX.        UNIT
   Collector Cut-off Current                        ICBO            VCB=15V, IE=0                                        -                 -            100        nA
   Collector-Base Breakdown Voltage            V(BR)CBO             IC=10 A                                              15                -             -          V
   Collector-Emitter Breakdown Voltage         V(BR)CEO             IC=1mA                                               12                -             -          V
   Emitter-Base Breakdown Voltage              V(BR)EBO             IE=10 A                                              6                 -             -          V
   DC Current Gain                                   hFE            VCE=2V, IC=10mA                                     270                -            680         -
   Collector-Emitter Saturation Voltage            VCE(sat)         IC=200mA, IB=10mA                                    -                90            250        mV
   Transition Frequency                              fT             VCE=2V, IC=10mA, fT=100MHz                           -            320                -        MHz
   Collector Output Capacitance                      Cob            VCB=10V, IE=0, f=1MHz                                -                7.5            -         pF




2002. 2. 20                      Revision No : 2                                                                                                                         1/3
                                KTC4072V




2002. 2. 20   Revision No : 2              2/3
                                KTC4072V




2002. 2. 20   Revision No : 2              3/3
