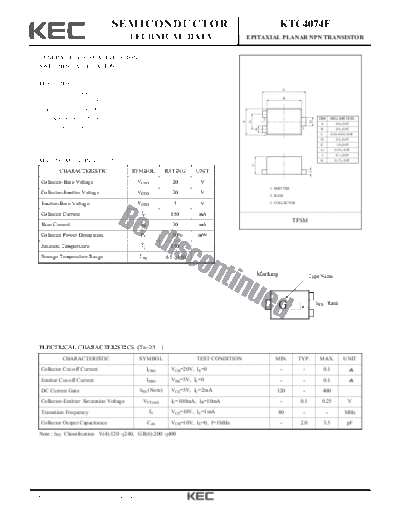

Image preview - the first page of the document
ktc4074f


>> Download ktc4074f documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                        KTC4074F
                                           TECHNICAL DATA                                         EPITAXIAL PLANAR NPN TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  SWITCHING APPLICATION.

  FEATURES
                                                                                                                           E
    Excellent hFE Linearity
                                                                                                                           B
      : hFE(0.1mA)/hFE(2mA)=0.95(Typ.).
    High hFE : hFE=120~400.
    Complementary to KTA2013F.                                                                                2                             DIM       MILLIMETERS




                                                                                              A
                                                                                                  G




                                                                                                                                       D
                                                                                                                                             A                _
                                                                                                                                                          0.6 + 0.05
    Thin Fine Pitch Small Package.                                                                                                3                           _




                                                                                                          K
                                                                                                                                             B            0.8 + 0.05
                                                                                                              1                              C        0.38+0.02/-0.04
                                                                                                                                             D                _
                                                                                                                                                          0.2 + 0.05
                                                                                                                                             E                _
                                                                                                                                                          1.0 + 0.05
                                                                                                                                             G                _
                                                                                                                                                         0.35+ 0.05
                                                                                                                                             J                _
                                                                                                                                                          0.1 + 0.05
                                                                                                                                                              _
  MAXIMUM RATING (Ta=25                )                                                                                                     K           0.15 + 0.05




                                                                                                      C
              CHARACTERISTIC               SYMBOL                 RATING     UNIT




                                                                                                                                       J
  Collector-Base Voltage                     VCBO                   20        V
                                                                                                                  1. EMITTER
  Collector-Emitter Voltage                  VCEO                   20        V                                   2. BASE

  Emitter-Base Voltage                       VEBO                    5        V                                   3. COLLECTOR


  Collector Current                            IC                   150      mA
                                                                                                                               TFSM
  Base Current                                 IB                   30       mA
  Collector Power Dissipation                  PC                   50       mW
  Junction Temperature                         Tj                   150
  Storage Temperature Range                   Tstg                -55 150


                                                                                                          Marking                      Type Name




                                                                                                                      G                    h FE Rank




  ELECTRICAL CHARACTERISTICS (Ta=25                           )
              CHARACTERISTIC                  SYMBOL                         TEST CONDITION                         MIN.         TYP.       MAX.              UNIT
  Collector Cut-off Current                         ICBO            VCB=20V, IE=0                                      -          -           0.1                A
  Emitter Cut-off Current                           IEBO            VEB=5V, IC=0                                       -          -           0.1                A
  DC Current Gain                             hFE (Note)            VCE=5V, IC=2mA                                   120          -          400
  Collector-Emitter Saturation Voltage             VCE(sat)         IC=100mA, IB=10mA                                  -         0.1         0.25               V
  Transition Frequency                               fT             VCE=10V, IC=1mA                                   80          -               -           MHz
  Collector Output Capacitance                       Cob            VCB=10V, IE=0, f=1MHz                              -         2.0          3.5               pF
  Note : hFE Classification Y(4):120 240, GR(6):200 400




2005. 4. 21                      Revision No : 1                                                                                                                        1/3
                                KTC4074F




2005. 4. 21   Revision No : 1              2/3
                                KTC4074F




2005. 4. 21   Revision No : 1              3/3
