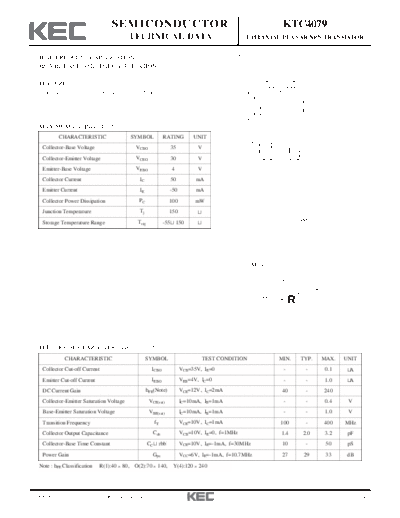

Image preview - the first page of the document
ktc4079


>> Download ktc4079 documenatation <<

Text preview - extract from the document
                                     SEMICONDUCTOR                                                                                      KTC4079
                                               TECHNICAL DATA                                                EPITAXIAL PLANAR NPN TRANSISTOR


  HIGH FREQUENCY APPLICATION.
  HF, VHF BAND AMPLIFIER APPLICATION.

                                                                                                                                    E
  FEATURE                                                                                                                  M        B        M

    High Power Gain : Gpe=29dB(Typ.) (f=10.7MHz)                                                                                                             DIM   MILLIMETERS
                                                                                                                                                              A           _
                                                                                                                                                                     2.00 + 0.20
                                                                                                                                                         D
                                                                                                                              2                              B            _
                                                                                                                                                                     1.25 + 0.15
                                                                                                                                                                          _




                                                                                                             A
                                                                                                                                                                     0.90 + 0.10




                                                                                                                  J
                                                                                                                                                             C
                                                                                                                              1              3




                                                                                                                      G
                                                                                                                                                             D      0.3+0.10/-0.05
                                                                                                                                                             E             _
                                                                                                                                                                      2.10 + 0.20
                                                                                                                                                             G           0.65
  MAXIMUM RATING (Ta=25                    )                                                                                                                 H      0.15+0.1/-0.06
                                                                                                                                                             J             1.30
           CHARACTERISTIC                        SYMBOL             RATING               UNIT                                                                K          0.00-0.10
                                                                                                                                                             L             0.70




                                                                                                                 C
   Collector-Base Voltage                         VCBO                      35                 V                                                     H                       _




                                                                                                                      L
                                                                                                                                                             M          0.42 + 0.10
                                                                                                                                                             N           0.10 MIN
   Collector-Emitter Voltage                      VCEO                      30                 V                          N                      N
                                                                                                                                  K

   Emitter-Base Voltage                           VEBO                      4                  V
                                                                                                                          1. EMITTER
   Collector Current                                IC                      50           mA
                                                                                                                          2. BASE
   Emitter Current                                  IE                  -50              mA                               3. COLLECTOR

   Collector Power Dissipation                      PC                  100              mW
   Junction Temperature                             Tj                  150
