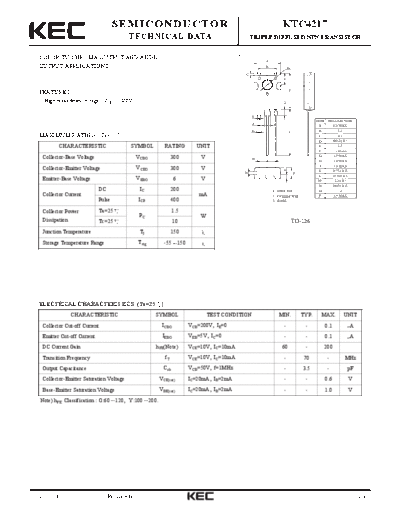

Image preview - the first page of the document
>> Download ktc4217 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTC4217
TECHNICAL DATA TRIPLE DIFFUSED NPN TRANSISTOR
COLOR TV CHROMA OUTPUT AND AUDIO A
OUTPUT APPLICATIONS. B D
C
E
F
FEATURES
High breakdown voltage : VCEO 300V. G
H
DIM MILLIMETERS
J
A 8.3 MAX
K L B 5.8
MAXIMUM RATING (Ta=25 ) C 0.7
D _
3.2 + 0.1
CHARACTERISTIC SYMBOL RATING UNIT E 3.5
F _
11.0 + 0.3
Collector-Base Voltage VCBO 300 V M
G 2.9 MAX
H 1.0 MAX
J 1.9 MAX
Collector-Emitter Voltage VCEO 300 V O _
K 0.75 + 0.15
N P
1 2 3 L _
15.50 + 0.5
Emitter-Base Voltage VEBO 6 V M _
2.3 + 0.1
N _
0.65 + 0.15
DC IC 200 1. EMITTER O 1.6
Collector Current mA 2. COLLECTOR P 3.4 MAX
Pulse ICP 400 3. BASE
Collector Power Ta=25 1.5
PC W
Dissipation Tc=25 10 TO-126
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=200V, IE=0 - - 0.1 A
Emitter Cut-off Current IEBO VEB=5V, IC=0 - - 0.1 A
DC Current Gain hFE(Note) VCE=10V, IC=10mA 60 - 200
Transition Frequency fT VCE=10V, IC=10mA - 70 - MHz
Output Capacitance Cob VCB=50V, f=1MHz - 3.5 - pF
Collector-Emitter Saturation Voltage VCE(sat) IC=20mA, IB=2mA - - 0.6 V
Base-Emitter Saturation Voltage VBE(sat) IC=20mA, IB=2mA - - 1.0 V
Note) hFE Classification : O:60 120, Y:100 200.
2003. 7. 24 Revision No : 1 1/3
KTC4217
I C - VCE I C - VCE
100 50
