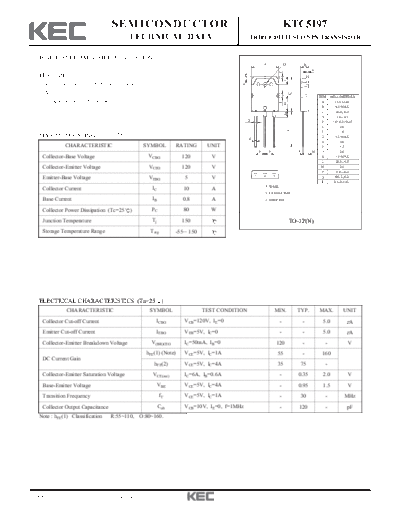

Image preview - the first page of the document
ktc5197


>> Download ktc5197 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                         KTC5197
                                           TECHNICAL DATA                                   TRIPLE DIFFUSED NPN TRANSISTOR


  HIGH POWER AMPLIFIER APPLICATION.
                                                                                                        A                Q            B
                                                                                                                                          K




                                                                                                                     F
  FEATURES




                                                                                                                         I
     Recommended for 55W Audio Frequency




                                                                                       E
     Amplifier Output Stage.




                                                                                                                             C
                                                                                                                                              DIM    MILLIMETERS
    Complementary to KTA1940.                                                                                                                  A       15.9 MAX




                                                                                                                      J
                                                                                                                     H
                                                                                                                                               B        4.8 MAX
                                                                                                                                               C             _
                                                                                                                                                        20.0 + 0.3




                                                                                                                         G
                                                                                                                                               D             _
                                                                                                                                                         2.0 + 0.3
                                                                                            D                                                  d      1.0+0.3/-0.25
                                                                                                                                               E           2.0




                                                                                                                             L
                                                                                                                                               F           1.0
  MAXIMUM RATING (Ta=25                )                                                    d
                                                                                                                                               G        3.3 MAX
                                                                                                                                               H           9.0
               CHARACTERISTIC                      SYMBOL        RATING     UNIT                                                               I           4.5
                                                                                                    P       P                    T        M    J           2.0
    Collector-Base Voltage                          VCBO           120       V                                                                 K        1.8 MAX
                                                                                                                                               L             _
                                                                                                                                                        20.5 + 0.5
    Collector-Emitter Voltage                       VCEO           120       V                                                                 M           2.8
                                                                                                                                               P             _
                                                                                                                                                        5.45 + 0.2
    Emitter-Base Voltage                            VEBO            5        V                  1       2       3                              Q       3.2 + 0.2
                                                                                                                                                              _
                                                                                                                                               T      0.6+0.3/-0.1
                                                                                                        1. BASE
    Collector Current                                IC            10        A
                                                                                                        2. COLLECTOR
    Base Current                                     IB            0.8       A                          3. EMITTER

    Collector Power Dissipation (Tc=25 )             PC            80        W
    Junction Temperature                             Tj            150                                                       TO-3P(N)
    Storage Temperature Range                       Tstg         -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                         )
               CHARACTERISTIC                       SYMBOL                 TEST CONDITION                       MIN.             TYP.         MAX.          UNIT
    Collector Cut-off Current                          ICBO        VCB=120V, IE=0                                    -               -         5.0             A
    Emitter Cut-off Current                            IEBO        VEB=5V, IC=0                                      -               -         5.0             A
    Collector-Emitter Breakdown Voltage              V(BR)CEO      IC=50mA, IB=0                                    120              -          -              V
                                                   hFE(1) (Note)   VCE=5V, IC=1A                                    55               -         160
    DC Current Gain
                                                      hFE(2)       VCE=5V, IC=4A                                    35               75         -
    Collector-Emitter Saturation Voltage              VCE(sat)     IC=6A, IB=0.6A                                    -           0.35          2.0             V
    Base-Emitter Voltage                               VBE         VCE=5V, IC=4A                                     -           0.95          1.5             V
    Transition Frequency                                   fT      VCE=5V, IC=1A                                     -               30         -            MHz
    Collector Output Capacitance                          Cob      VCB=10V, IE=0, f=1MHz                             -           120            -             pF
  Note : hFE(1) Classification     R:55~110,   O:80~160.




1998. 10. 21                     Revision No : 0                                                                                                                      1/2
                                 KTC5197




1998. 10. 21   Revision No : 0             2/2
