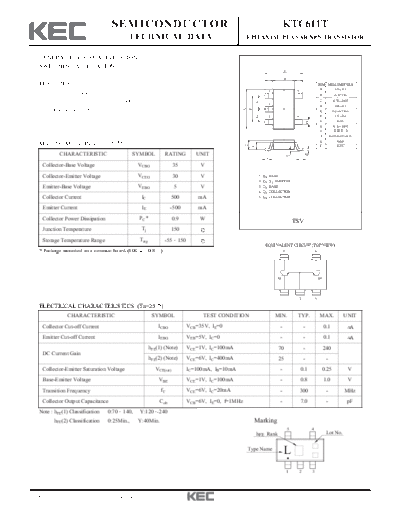

Image preview - the first page of the document
>> Download ktc611t documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTC611T
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
E
B
FEATURES DIM MILLIMETERS
A _
2.9 + 0.2
1 5
Excellent hFE Linearity B 1.6+0.2/-0.1
_
: hFE(2)=25(Min.) at VCE=6V, IC=400mA. C 0.70 + 0.05
G
2 _
D 0.4 + 0.1
Complementary to KTA511T.
F
A
E 2.8+0.2/-0.3
F _
1.9 + 0.2
3 4
G
G 0.95
D
H _
0.16 + 0.05
I 0.00-0.10
J 0.25+0.25/-0.15
K 0.60
MAXIMUM RATING (Ta=25 )
C
L
L 0.55
CHARACTERISTIC SYMBOL RATING UNIT I H
J J
Collector-Base Voltage VCBO 35 V
Collector-Emitter Voltage VCEO 30 V 1. Q 1 BASE
2. Q 1, Q 2 EMITTER
Emitter-Base Voltage VEBO 5 V 3. Q 2 BASE
4. Q 2 COLLECTOR
Collector Current IC 500 mA 5. Q 1 COLLECTOR
Emitter Current IE -500 mA
Collector Power Dissipation PC * 0.9 W
TSV
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
EQUIVALENT CIRCUIT(TOP VIEW)
* Package mounted on a ceramic board (600 0.8 ) 5 4
Q1 Q2
1 2 3
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=35V, IE=0 - - 0.1 A
Emitter Cut-off Current IEBO VEB=5V, IC=0 - - 0.1 A
hFE(1) (Note) VCE=1V, IC=100mA 70 - 240
DC Current Gain
hFE(2) (Note) VCE=6V, IC=400mA 25 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=100mA, IB=10mA - 0.1 0.25 V
Base-Emitter Voltage VBE VCE=1V, IC=100mA - 0.8 1.0 V
Transition Frequency fT VCE=6V, IC=20mA - 300 - MHz
Collector Output Capacitance Cob VCB=6V, IE=0, f=1MHz - 7.0 - pF
Note : hFE(1) Classification 0:70 140, Y:120 240
hFE(2) Classification 0:25Min., Y:40Min. Marking
5 4
h FE Rank Lot No.
Type Name
L
1 2 3
2002. 1. 24 Revision No : 1 1/2
KTC611T
I C - VCE h FE - I C
500 500
COMMON EMITTER
COLLECTOR CURRENT I C (mA)
Ta=25 C 300
DC CURRENT GAIN h FE
400 Ta=100 C VCE =6V
6.0 4.0 3.0
300 2.0
100
Ta=-25 C
Ta=25 C
200 50
1.0 VCE =1V
30
100 0.5 COMMON
0 I B =0.1mA EMITTER
0 10
0 1 2 3 4 5 0.5 1 3 10 30 100 300 1k
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
I B - VBE VCE(sat) - I C
COLLECTOR-EMITTER SATURATION
2k 1
COMMON EMITTER COMMON
1k VCE =6V 0.5 EMITTER
