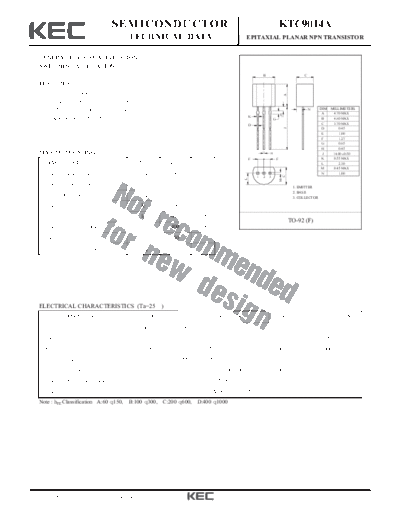

Image preview - the first page of the document
ktc9014a


>> Download ktc9014a documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                        KTC9014A
                                           TECHNICAL DATA                                   EPITAXIAL PLANAR NPN TRANSISTOR


  GENERAL PURPOSE APPLICATION.
  SWITCHING APPLICATION.
                                                                                                        B                             C

  FEATURES
    Excellent hFE Linearity




                                                                                                                            A
     : hFE(IC=0.1mA)/hFE(IC=2mA)=0.95(Typ.).
    Low Noise :NF=1dB(Typ.) at f=1kHz.                                                                                                    N     DIM    MILLIMETERS
                                                                                                                        E                        A      4.70 MAX
                                                                                                K
    Complementary to KTC9015A.                                                                                  G                                B      4.80 MAX
                                                                                                D                                                C      3.70 MAX




                                                                                                                            J
                                                                                                                                                 D         0.45
                                                                                                                                                 E         1.00
                                                                                                                                                 F         1.27
                                                                                                                                                 G         0.85
                                                                                                                                                 H         0.45
  MAXIMUM RATING (Ta=25                )                                                                    H                                    J            _
                                                                                                                                                        14.00 + 0.50
                                                                                                F                   F                            K      0.55 MAX
   CHARACTERISTIC                           SYMBOL             RATING    UNIT                                                                    L         2.30
                                                                                                                                                 M      0.45 MAX
   Collector-Base Voltage                     VCBO               60       V                                                                      N          1.00




                                                                                                                            C
                                                                                                    1   2   3




                                                                                            L




                                                                                                                        M
   Collector-Emitter Voltage                  VCEO               50       V                                                      1. EMITTER
                                                                                                                                 2. BASE
   Emitter-Base Voltage                       VEBO                5       V                                                      3. COLLECTOR

   Collector Current                           IC                150      mA
   Emitter Current                             IE               -150      mA
                                                                                                                                TO-92 (F)
   Collector Power Dissipation                 PC                400     mW
   Junction Temperature                        Tj                150
   Storage Temperature Range                  Tstg             -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                        )
              CHARACTERISTIC                  SYMBOL                     TEST CONDITION                         MIN.               TYP.         MAX.         UNIT
   Collector Cut-off Current                       ICBO         VCB=50V, IE=0                                           -            -           50            nA
   Emitter Cut-off Current                         IEBO         VEB=5V, IC=0                                            -            -           100           nA
   DC Current Gain                            hFE (Note)        VCE=5V, IC=1mA                                      60               -          1000
   Collector-Emitter Saturation Voltage        VCE(sat)         IC=100mA, IB=10mA                                       -           0.1         0.25            V
   Transition Frequency                             fT          VCE=10V, IC=1mA, f=100MHz                           60               -            -           MHz
   Collector Output Capacitance                    Cob          VCB=10V, IE=0, f=1MHz                                   -           2.0          3.5           pF
   Noise Figure                                    NF           VCE=6V, IC=0.1mA, Rg=10k , f=1kHz                       -           1.0          10            dB
  Note : hFE Classification A:60   150,    B:100 300,      C:200 600,    D:400   1000




2010. 1. 28                      Revision No : 2                                                                                                                       1/1
