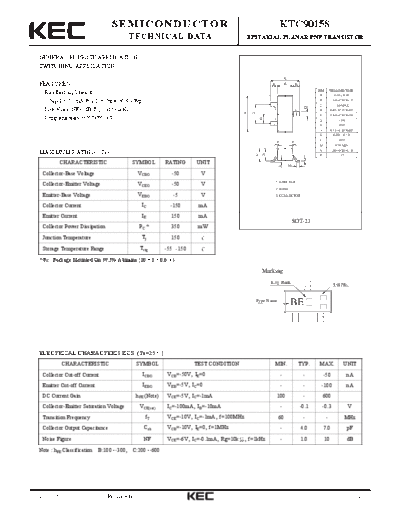

Image preview - the first page of the document
>> Download ktc9015s documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTC9015S
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
E
FEATURES L B L
DIM MILLIMETERS
Excellent hFE Linearity A _
2.93 + 0.20
: hFE(IC=-0.1mA)/hFE(IC=-2mA)=0.95(Typ.). B 1.30+0.20/-0.15
C 1.30 MAX
D
Low Noise :NF=1dB(Typ.) at f=1kHz. 2 3 D 0.45+0.15/-0.05
A
G
E 2.40+0.30/-0.20
Complementary to KTC9014S.
H
1 G 1.90
H 0.95
J 0.13+0.10/-0.05
K 0.00 ~ 0.10
L 0.55
P P
M 0.20 MIN
N 1.00+0.20/-0.10
MAXIMUM RATING (Ta=25 ) P 7
N
C
J
CHARACTERISTIC SYMBOL RATING UNIT M
K
Collector-Base Voltage VCBO -50 V
1. EMITTER
Collector-Emitter Voltage VCEO -50 V
2. BASE
Emitter-Base Voltage VEBO -5 V 3. COLLECTOR
Collector Current IC -150 mA
Emitter Current IE 150 mA
SOT-23
Collector Power Dissipation PC * 350 mW
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
* PC : Package Mounted On 99.5% Alumina (10 8 0.6 )
Marking
h FE Rank Lot No.
Type Name
BE
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -50 nA
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -100 nA
DC Current Gain hFE (Note) VCE=-5V, IC=-1mA 100 - 600
Collector-Emitter Saturation Voltage VCE(sat) IC=-100mA, IB=-10mA - -0.1 -0.3 V
Transition Frequency fT VCE=-10V, IC=-1mA, f=100MHz 60 - - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 4.0 7.0 pF
Noise Figure NF VCE=-6V, IC=-0.1mA, Rg=10k , f=1kHz - 1.0 10 dB
Note : hFE Classification B:100 300, C:200 600
2003. 3. 25 Revision No : 1 1/2
KTC9015S
I C - VCE h FE - I C
-240 1K
COMMON EMITTER
COLLECTOR CURRENT I C (mA)
-2.0 Ta=25 C
-200 500
DC CURRENT GAIN h FE
-1.5
-160 300 Ta =100 C
VCE =-6V
-1.0
Ta =25 C
-120
-0.5 Ta =-25 C
-80 100
VCE =-1V
I B =-0.2mA
-40
50
COMMON EMITTER
0
0 30
0 -1 -2 -3 -4 -5 -6 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (mA)
VCE(sat) - I C f T - IE
COLLECTOR-EMITTER SATURATION
-500 1K
TRANSITION FREQUENCY f T (MHz)
COMMON EMITTER
-300 I C /I B =10 500
VOLTAGE VCE(sat) (mV)
300
-100
100
-50
50
-30 Ta =100 C Ta =25 C 30 COMMON EMITTER
Ta =-25 C
VCE =-10V
Ta =25 C
-10 10
-0.1 -0.3 -1 -3 -10 -30 -100 -300 -0.1 -0.3 -1 -3 -10 -30 -100 -300
COLLECTOR CURRENT I C (mA) EMITTER CURRENT I E (mA)
I B - VBE Pc - Ta
-1K 500
COLLECTOR POWER DISSIPATION
COMMON EMITTER 1 MOUNTED ON 99.5%
-300 VCE =-6V ALUMINA 10x8x0.6mm
