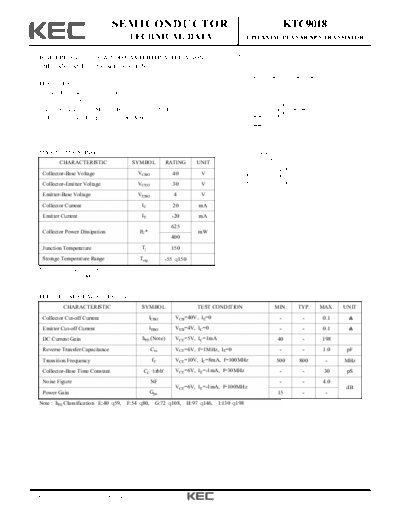

Image preview - the first page of the document
>> Download ktc9018 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTC9018
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
HIGH FREQUENCY LOW NOISE AMPLIFIER APPLICATION.
VHF BAND AMPLIFIER APPLICATION.
B C
FEATURES
Small Reverse Transfer Capacitance
A
: Cre=0.65pF(Typ.).
Low Noise Figure : NF=2.2dB(Typ.) at f=100MHz. N DIM MILLIMETERS
E A 4.70 MAX
K
High Transition Frequency : fT=800MHz(Typ.). G B 4.80 MAX
D C 3.70 MAX
D 0.45
J
E 1.00
F 1.27
G 0.85
H 0.45
MAXIMUM RATING (Ta=25 ) H J _
14.00 + 0.50
F F K 0.55 MAX
CHARACTERISTIC SYMBOL RATING UNIT L 2.30
M 0.45 MAX
Collector-Base Voltage VCBO 40 V N 1.00
1 2 3
C
L
M
Collector-Emitter Voltage VCEO 30 V 1. EMITTER
2. BASE
Emitter-Base Voltage VEBO 4 V 3. COLLECTOR
Collector Current IC 20 mA
Emitter Current IE -20 mA
TO-92
625
Collector Power Dissipation PC* mW
400
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
* Cu Lead-Frame : 625mW
Fe Lead-Frame : 400mW
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=40V, IE=0 - - 0.1 A
Emitter Cut-off Current IEBO VEB=4V, IC=0 - - 0.1 A
DC Current Gain hFE (Note) VCE=5V, IC=1mA 40 - 198
Reverse Transfer Capacitance Cre VCE=6V, f=1MHz, IE=0 - - 1.0 pF
Transition Frequency fT VCE=10V, IC=8mA, f=100MHz 500 800 - MHz
Collector-Base Time Constant CC rbb' VCE=6V, IE=-1mA, f=30MHz - - 30 pS
Noise Figure NF - - 4.0
VCE=6V, IE=-1mA, f=100MHz dB
Power Gain Gpe 15 - -
Note : hFE Classification E:40 59, F:54 80, G:72 108, H:97 146, I:130 198
2010. 6. 25 Revision No : 1 1/1
